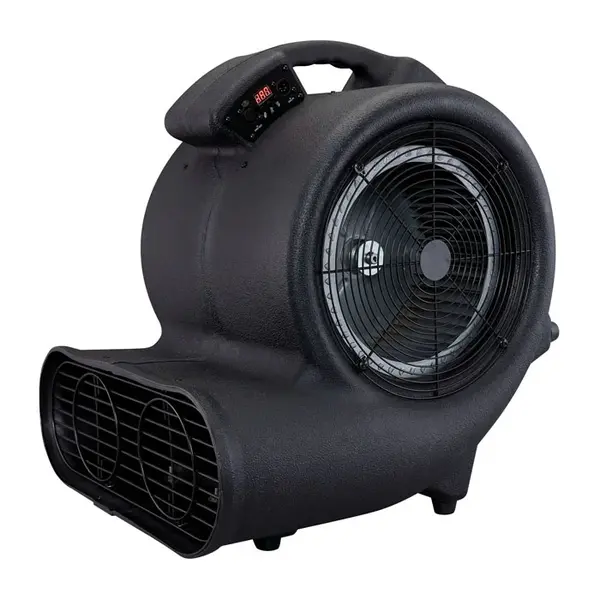

Antari | 80395 | AF-5X | DMX Effect Fan

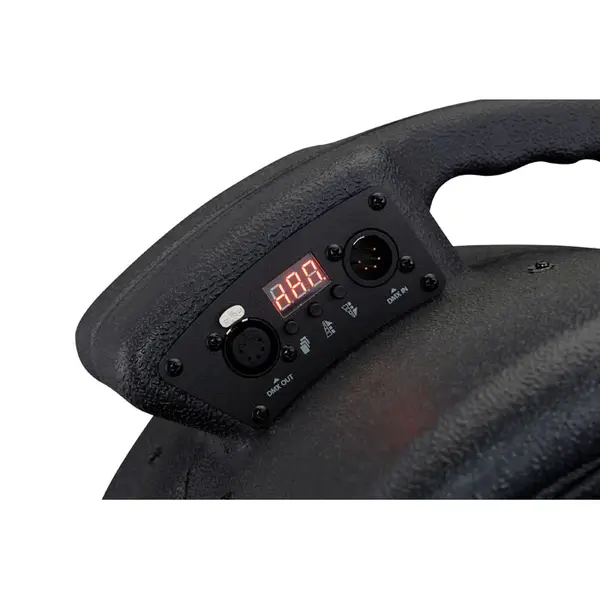

The Antari AF-5X is a professional 1600 W special effect fan with DMX control functionality, suitable for fog, haze, faze and fazer machines. It has 3 optional wind speeds that can also be controlled manually. Besides, it is equipped with an LCD display control panel.

The AF-5X is compatible with the Antari AF-5-HB Hanging Bracket and can be placed in 2 positions (horizontal and 45 degree vertical).


Technical specifications
Power Supply: 220V-240 VAC 50 Hz
Power Consumption: 1600 W
Power Connector In: Schuko Plug
DMX Connector: XLR 5P In/Out
Airflow: 3000 m³/h
Fan Speed: 1200 rpm
Length (mm): 558 mm
Height (mm): 578 mm
Width (mm): 465 mm
Weight: 17.5 kg
Control Mode: DMX / Manual / Timer
DMX Channels: 1
