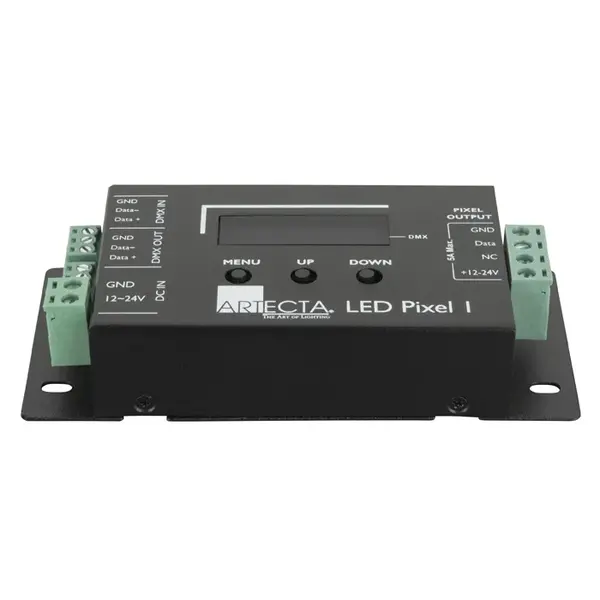

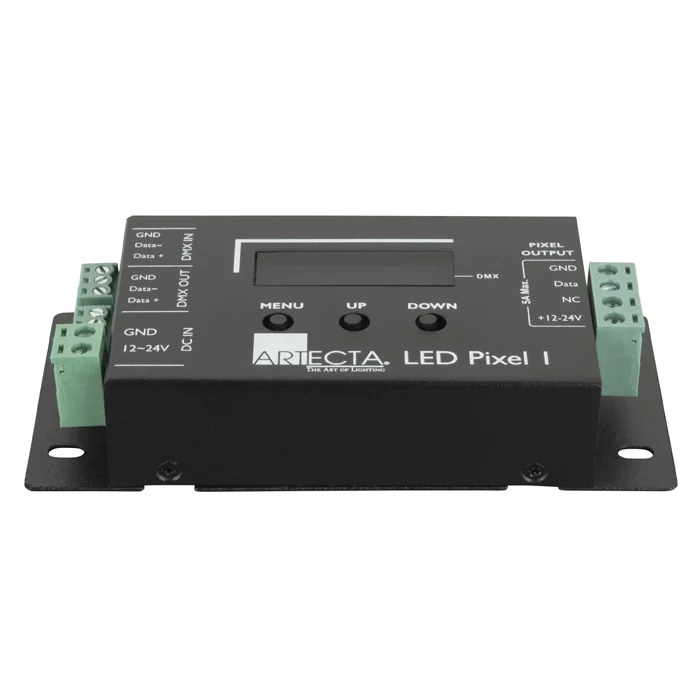

Artecta | A9915120 | LED Pixel 1 | DMX to SPI converter

The Artecta LED Pixel 1 is a DMX to SPI converter with multiple functions
SPI is being used to pixel-control digital LED strips. With the LED Pixel 1 you have the possibility to choose one of 6 SPI protocols to control the LED strips.

Technical specifications
Control Mode: DMX
DMX Channels: 512
Protocols: SPI
Power Supply: 12-24 VDC
Output Voltage: 12-24 VDC
Maximum Output Current (A): 1 A
Length (mm): 115 mm
Height (mm): 24 mm
Width (mm): 55 mm
IP Rating: IP20 (indoor use only)
