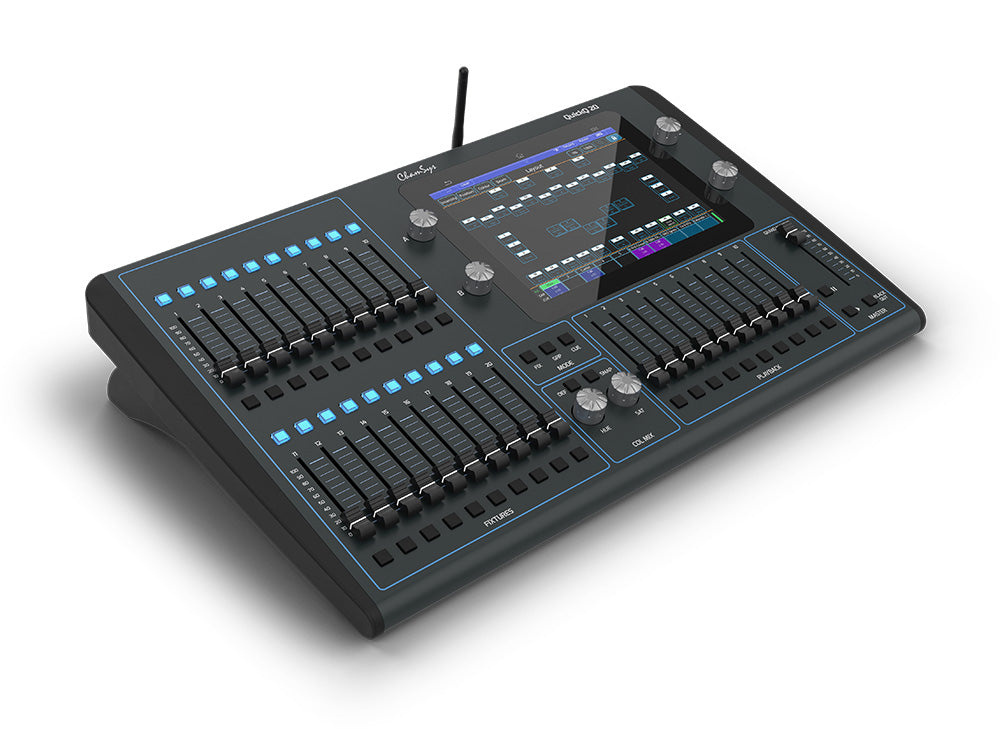

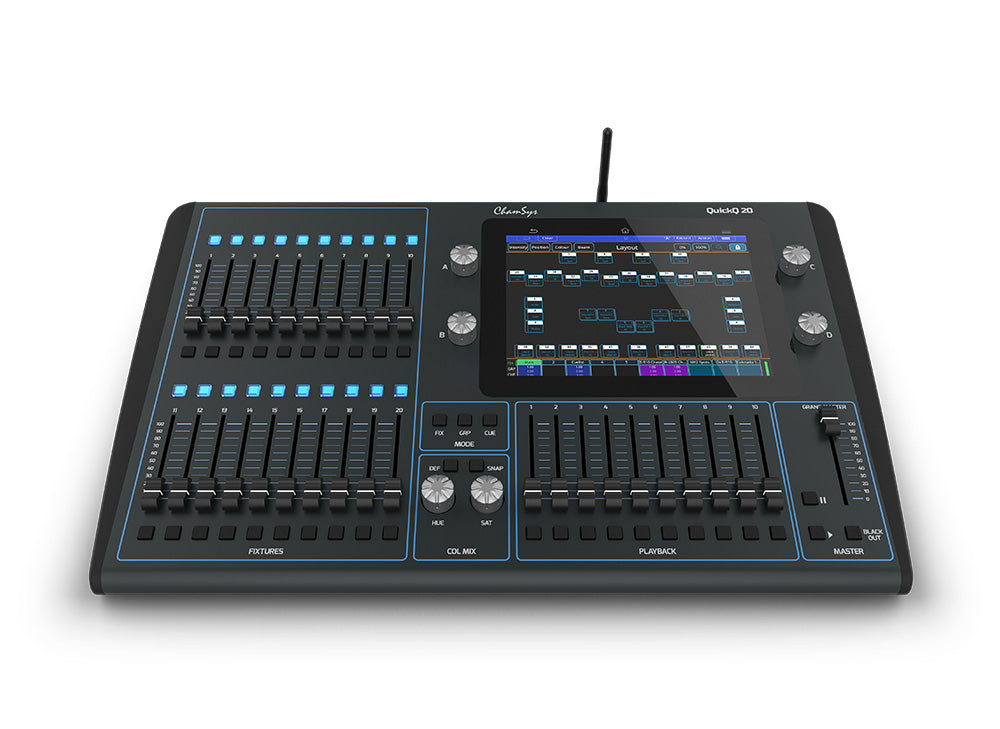

ChamSys | CS100720 | Lighting table QuickQ 20 | 2 universes | 20 faders | Audio input

ChamSys | CS100720 | Lighting console QuickQ 20 | 2 universes | 20 faders | Audio input

The QuickQ 20 is part of the ChamSys QuickQ range of easy-to-use and affordable lighting control consoles. The QuickQ 20 is the perfect choice for dimmers, LED colour mixing and moving luminaires. The console has a large 9.7-inch touchscreen with a smartphone-like interface for setting up, programming and playing back your show.

The console can automatically detect and patch RDM-compatible fixtures and has built-in WIFI capabilities for remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect to the app by simply scanning the QR code on the console's display.

The console features easy-to-understand buttons and faders, simple tools for colour selection and intensity control, a large touchscreen with zooming and scrolling at your fingertips, and a simple cue/chase system for playback. Designed specifically for the novice user, the QuickQ interface guides you easily through the console's setup, programming and operation.

The console has a free downloadable offline programming software for Mac and Windows. You can programme your show on your computer, save it to a flash drive and load it onto the QuickQ console.

QuickQ uses ChamSys' extensive and continuously updated personality library of more than 45,000 personalities.

QuickQ shows are compatible and can be loaded onto any MagicQ system, allowing for future migration to ChamSys' more advanced MagicQ consoles.

Overview:

• Modelled on smartphone icon interfaces for ease of use
• Intuitive interface for easy operation of all fixture attributes
• Interface supports movements such as pinch zoom and scrolling
• Easily connect to the remote app on iOS and Android devices via built-in Wi-Fi

Playback faders:

• 20 multi-function fixture faders with 3 different modes - Fixture, Group and Cue
• 10 multi-cue Playback faders, indicated on the screen
• The console has a dedicated Grand Master fader for overall level control

Colour control:

• A dedicated "colour control area" with hue and saturation encoders
• Select from built-in palettes and gel libraries using the touch screen
• Built-in colour selector for use with LED luminaires

Networking:

• QuickQ supports output of DMX over the network via ArtNet/sACN/Pathport
• Remote activation of Playbacks and Execute items via OSC
