DAP | D1360 | CM-1 | Small-Diaphragm FET Condenser Microphone

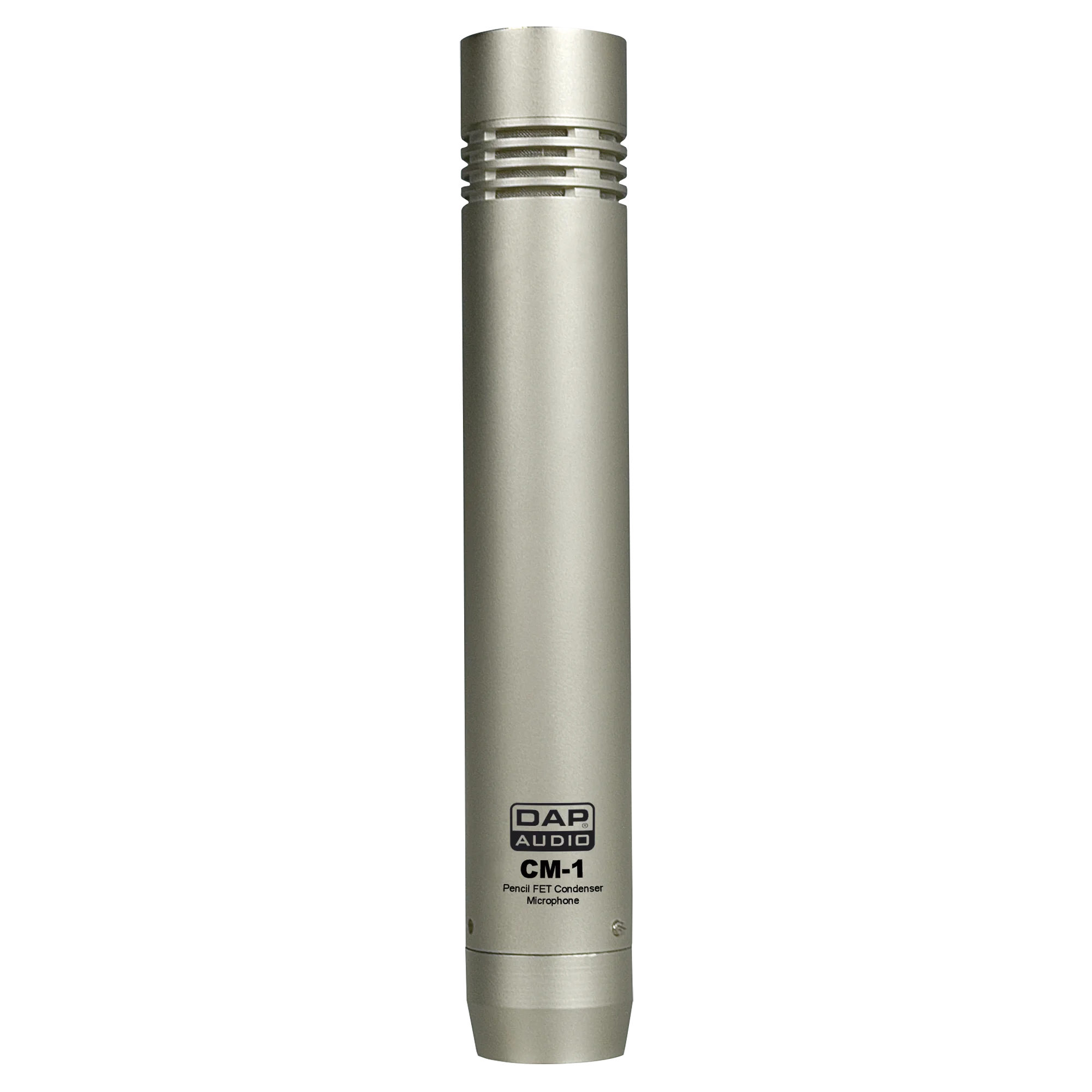

The DAP CM-1 is a small-diaphragm FET condenser microphone with the option of recording with a cardioid or omnidirectional pickup. This gives you the option to capture sounds only from behind (cardioid) or from all directions (omni).

The CM-1 is mainly used for capturing live atmosphere (audience), drum overhead and acoustic instruments. A windscreen is included to reduce expressive wind pressure on the microphone element, as well as the popping sounds of vocals. A microphone clamp is included for quick and easy installation on any universal stand.

Technical specifications

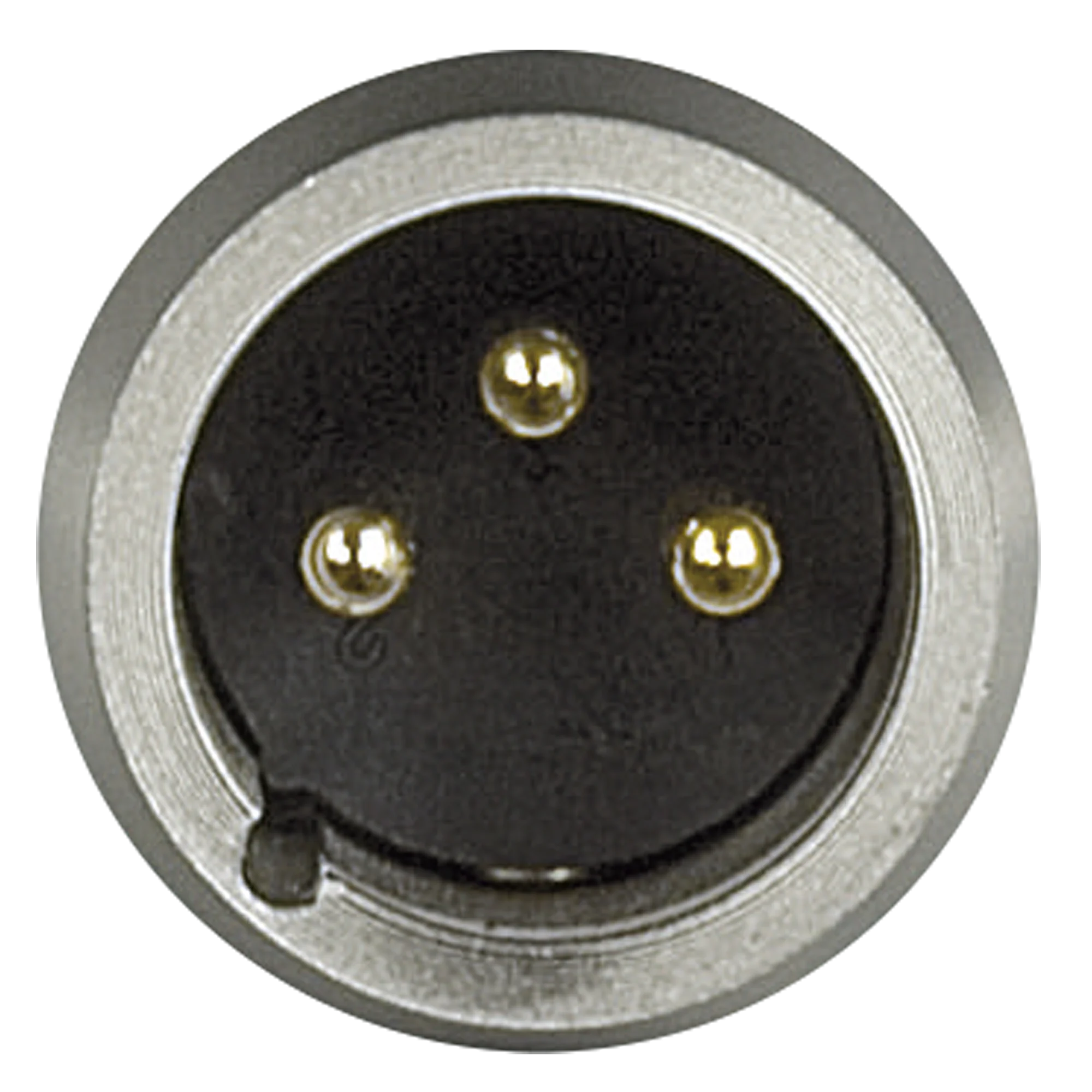

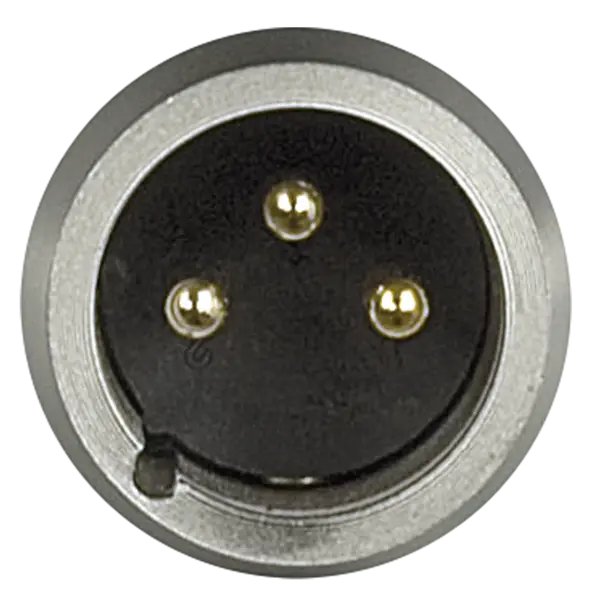

Microphone Output Connection: 3-pin XLR
Microphone Impedance: 200 Ω
Microphone Type: Condenser
Microphone Sensitivity: 10 mV
Polar Pattern: Omni or Cardioid
Max. SPL: 132 dB
Frequency Response Minimum: 30 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Low-cut Filter: No
Height (mm): 25.4 mm
Width (mm): 25.4 mm
Length (mm): 133 mm
Weight: 0.2 kg
