DAP | D1475B | EDGE EHS-1 | Wireless Handheld Microphone Set - 610-670 MHz

The DAP EDGE series offers wireless microphones and beltpacks for recording or amplifying vocals and instruments. It is a reliable, yet affordable solution with simple operation for creating a clear and pure sound without interference. Transferring frequencies between receiver and transmitter are done automatically due to the infrared sensors. In addition, you can use up to 8 wireless microphones/beltpacks simultaneously. This is usually sufficient for bands and other artists.

Microphone/beltpack recognition is easy due to the included colour coded stickers. Additional accessories are available to extend the reach or to make the handheld microphones compatible with wireless Shure cartridges. You can order each item separately or opt for a complete microphone or beltpack set with condenser headset, 19" installation rack, adapter and windscreen.

Interested in our DAP Edge series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

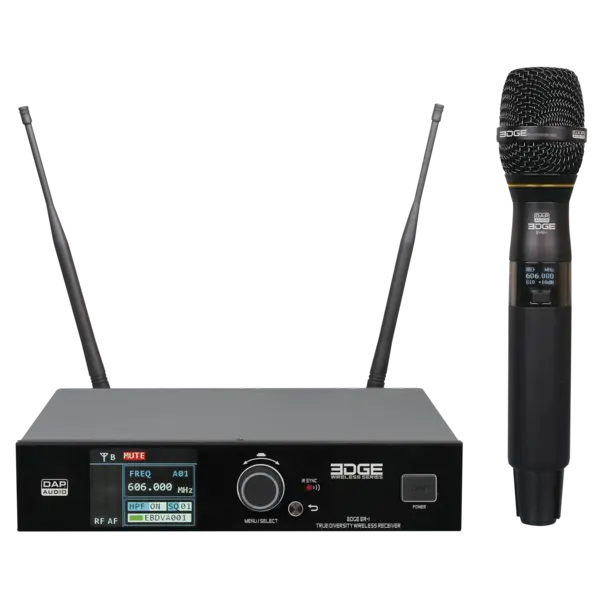

The DAP EDGE EHS-1 is a wireless handheld microphone system for easy operation and a clear and pure sound without interference. The microphone has a high-quality cardioid condenser capsule, suitable for singing, presenting, teaching, acting and speaking at live events, gatherings, and conferences. A most practical function is the battery status on both the display of the receiver and microphone.

The EDGE EHS-1 has a practical colour coding solution. This enables you to instantly recognise the dedicated receiver for your microphone when using up to 8 wireless microphones at the same time. The receiver can quickly scan the frequency range and find an unused frequency to avoid signal distortion for the best reception possible. Another great feature is the infrared sensor on the microphone and receiver. It allows you to easily set all important settings on the receiver and everything is transferred automatically as soon as you hold the microphone in front of it.

This wireless microphone set comes with many accessories to complete its installation, such as a 19" rack installation kit, power supply, colour-coded stickers, leather pouch, RF antenna and a windscreen.

Technical specifications
Wireless Microphone Frequency Start: 610 MHz
Wireless Microphone Frequency End: 670 MHz
RF Power: 30 mW
RF Bandwidth: 60 MHz
THD Level: < 1.0 %
Signal-to-noise Ratio: > 100 dB
Microphone Type: Condenser
Microphone Sensitivity: 2.2 mV
Polar Pattern: Cardioid
Max. SPL: 130 dB
Frequency Response Minimum: 60 Hz
Frequency Response Maximum: 18000 Hz
RF Antenna Inputs: 2
RF Antenna Input Connection: BNC
Microphone Output: 1
Microphone Output Connection: 3-pin XLR / TS unbalanced 6.3 mm
Battery Type: AA
Runtime Average: 10 h
Transmitter Type: Handheld
Receiver Type: True diversity
Power Connector In: Low Voltage DC plug
Power Connector Out: Low Voltage DC Socket
Transmitter Weight: 0.38 kg
