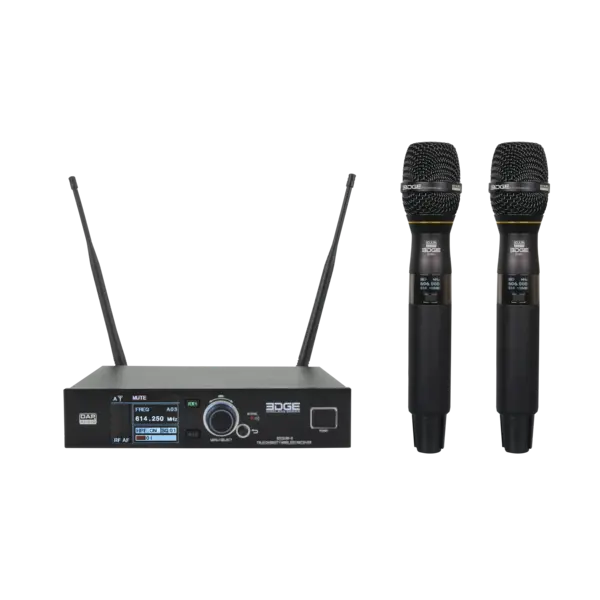

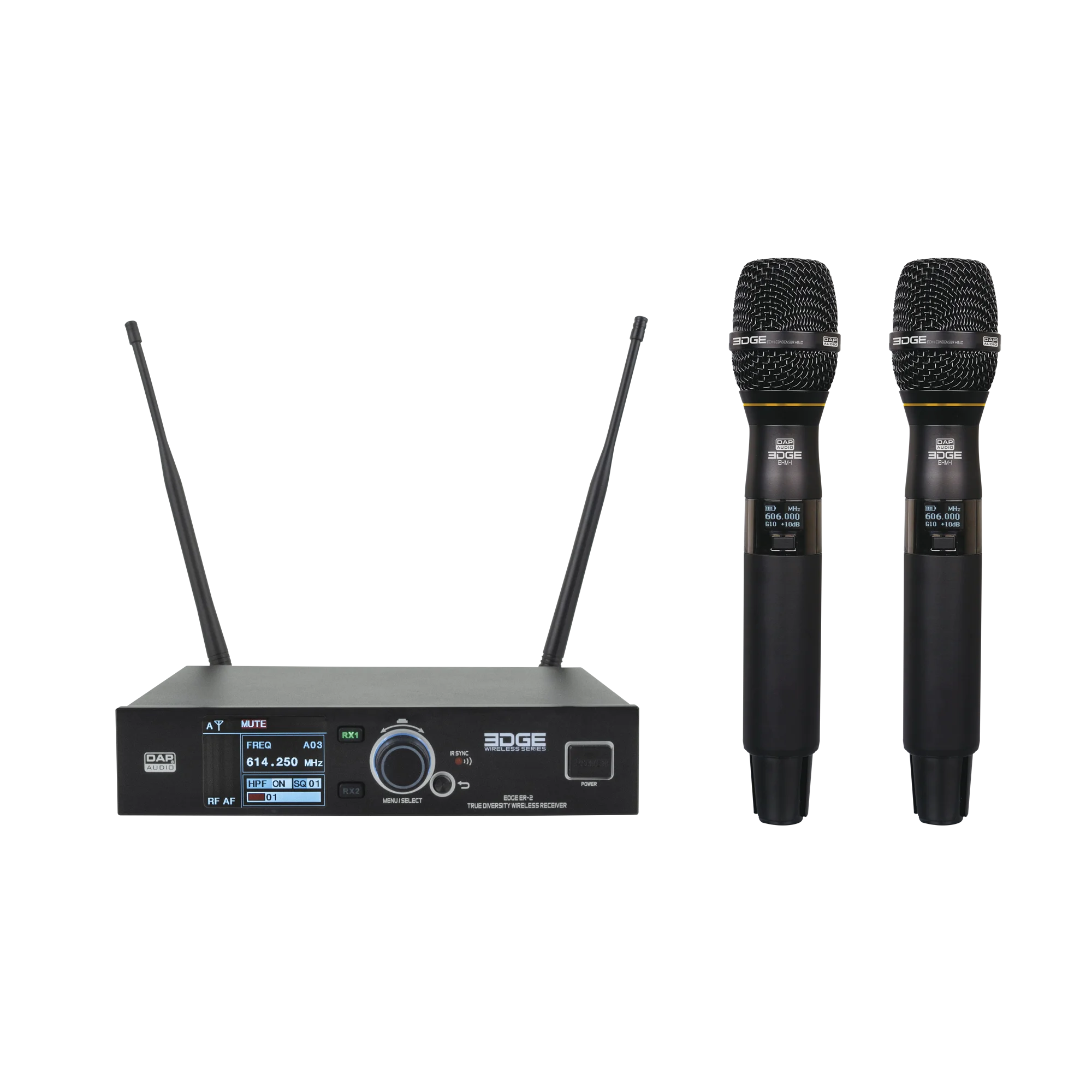

The DAP EDGE EHS-2 is a wireless dual handheld microphone system with easy operation and a clear and pure sound without interference. The two microphones are equipped with a high-quality cardioid condenser capsule, suitable for singing, presenting, teaching, acting and speaking at live events, gatherings, and conferences. A very practical function is the battery status indication on both the display of the receiver and the microphones. The receiver has an integrated antenna distributor, which means that you can daisy-chain the antenna signals to multiple receivers and use one set of antennas for all of them.
The EDGE EHS-2 has a handy colour coding functionality, which enables you to instantly recognise the dedicated receiver that is paired with your microphone when you are using multiple (up to 8) wireless microphones simultaneously. The receiver can quickly scan the frequency range and find an unused frequency to avoid signal interference for the best reception possible. Another great feature is the infrared sensor on the microphones and receiver. It allows you to easily set all important settings on the receiver and transfer them automatically as soon as you hold the microphone(s) in front of the receiver.
This wireless dual microphone set comes with many accessories to complete its installation, such as a 19” rack installation kit, power supply, colour-coded stickers, leather pouches, RF antenna, and two windscreens.
Technical specifications Wireless Microphone Frequency Start: 610 MHz Wireless Microphone Frequency End: 670 MHz RF Power: 30 mW RF Bandwidth: 60 MHz THD Level: < 1.0 % Signal-to-noise Ratio: > 100 dB Microphone Type: Condenser Microphone Sensitivity: 2.2 mV Polar Pattern: Cardioid Max. SPL: 130 dB Frequency Response Minimum: 60 Hz Frequency Response Maximum: 18000 Hz RF Antenna Inputs: 2 RF Antenna Input Connection: BNC Microphone Output: 2 Microphone Output Connection: 3-pin XLR Battery Type: AA Runtime Average: 10 h Transmitter Type: Handheld Receiver Type: True diversity Power Connector In: Low Voltage DC plug Power Connector Out: Low Voltage DC Socket Transmitter Weight: 0.38 kg
