DAP | D1485 | EDGE ED-1 | Antenna Distributor

The DAP EDGE series offers wireless microphones and beltpacks for recording or amplifying vocals and instruments. It is a reliable, yet affordable solution with simple operation for creating a clear and pure sound without interference. Transferring frequencies between receiver and transmitter are done automatically due to the infrared sensors. In addition, you can use up to 8 wireless microphones/beltpacks simultaneously. This is usually sufficient for bands and other artists.

Microphone/beltpack recognition is easy due to the included colour coded stickers. Additional accessories are available to extend the reach or to make the handheld microphones compatible with wireless Shure cartridges. You can order each item separately or opt for a complete microphone or beltpack set with condenser headset, 19" installation rack, adapter and windscreen.

Interested in our DAP Edge series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

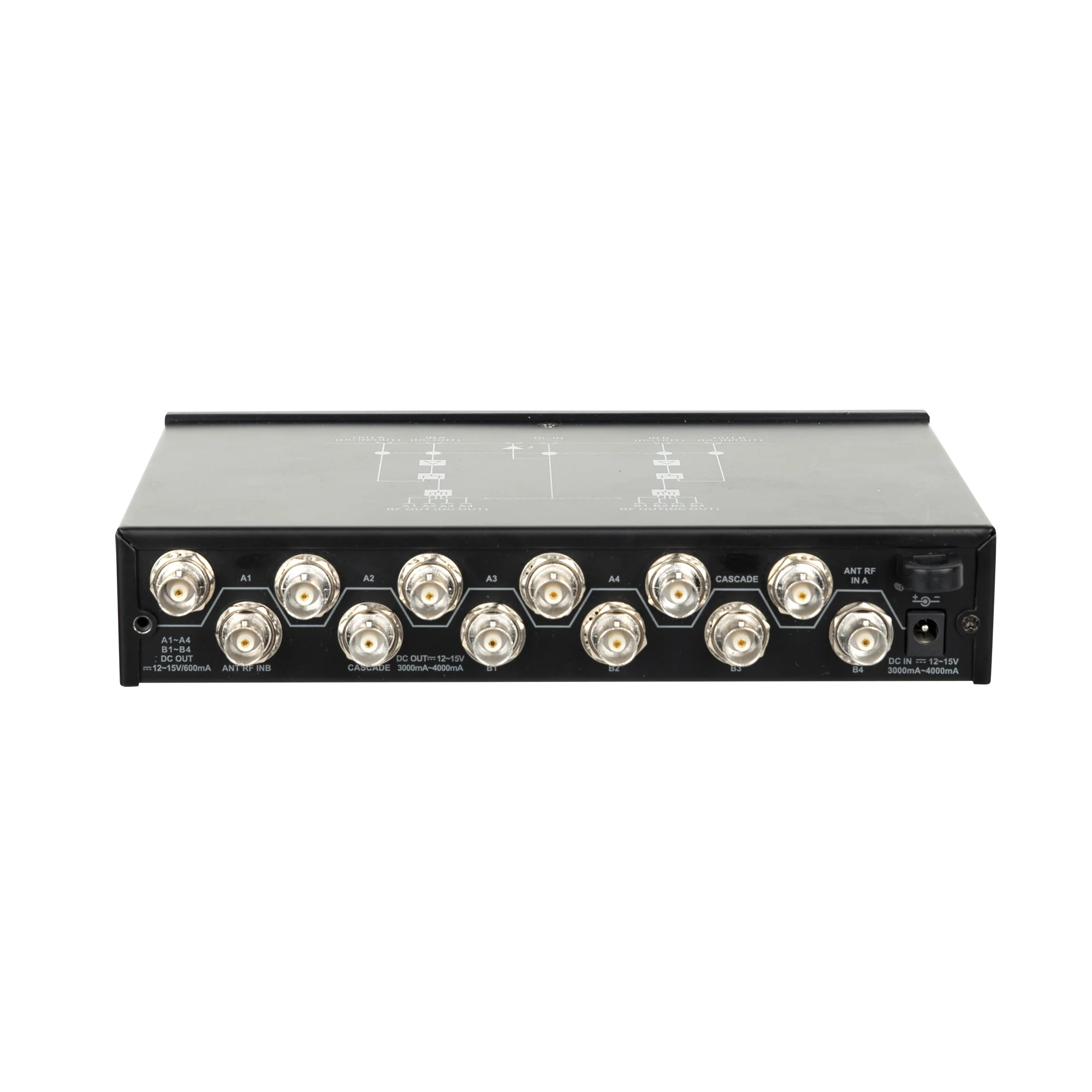

The DAP EDGE ED-1 is a 4-way antenna distributor required in a setup with four or more wireless microphone receivers. A set of 2 unidirectional antennas, such as the DAP EDGE EUA-1, is necessary when using this antenna distributor. You can connect the receivers directly to the distributor through the BNC connectors on the backside. The Cascade BNC connectors allow you to loop the antenna signal through to a subsequent antenna distributor, allowing you to add another 4 receivers.

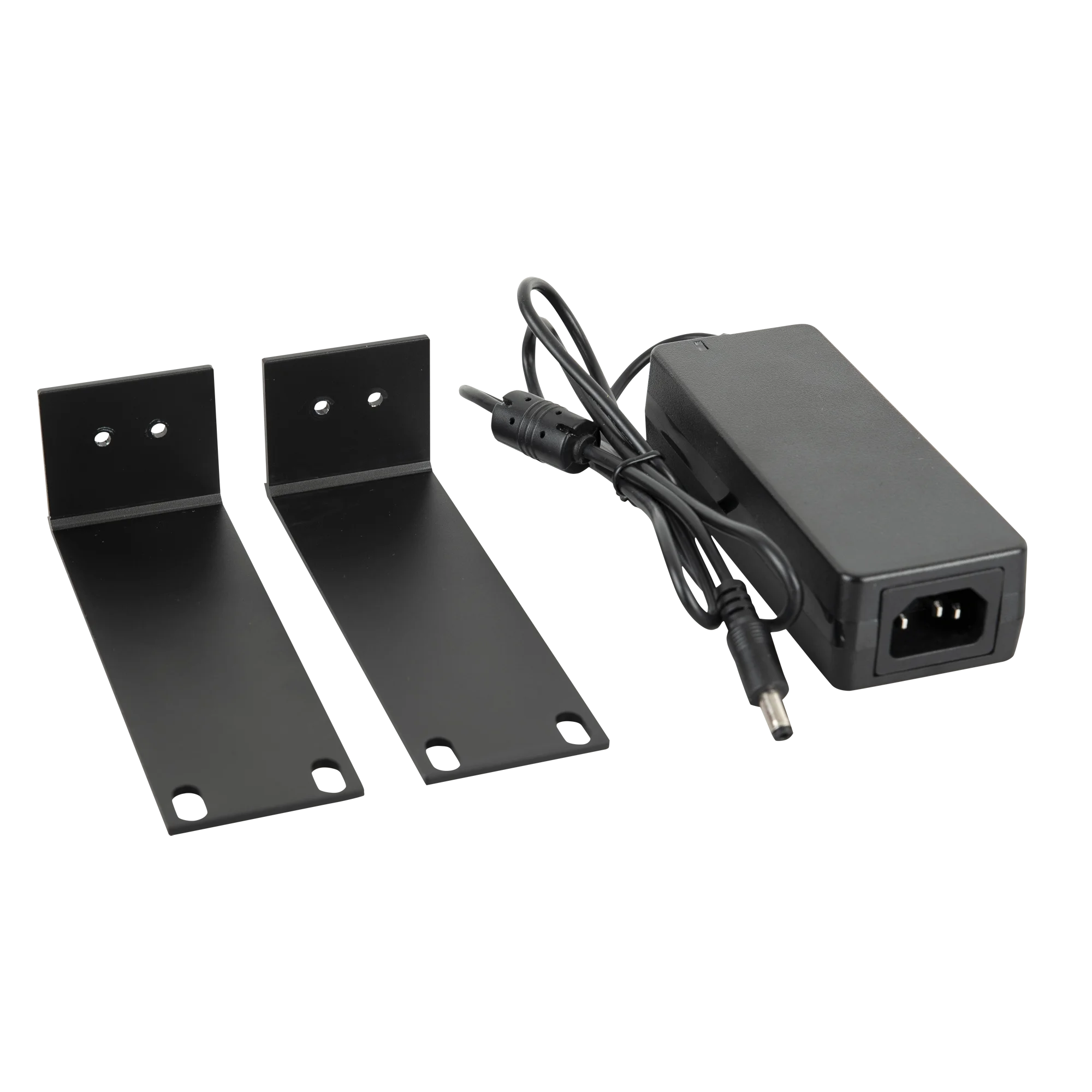

The EDGE ED-1 supplies power to your entire setup. Simply put the receivers in Phantom Power mode and the distributor will then power the receivers as well as the antennas. DC adapter and 19" brackets are included.

Technical specifications
RF Antenna Inputs: 2
RF Antenna Input Connection: BNC
RF Antenna Outputs: 10
RF Antenna Output Connection: BNC
Wireless Audio Frequency Start: 470 MHz
Wireless Audio Frequency End: 980 MHz
Power Supply: 100-240 VAC 50-60 Hz
Output Voltage: 12 VDC
Power Connector In: Low Voltage DC plug
Height (mm): 44.5 mm
Width (mm): 215 mm
Length (mm): 151 mm
Weight: 1.02 kg
