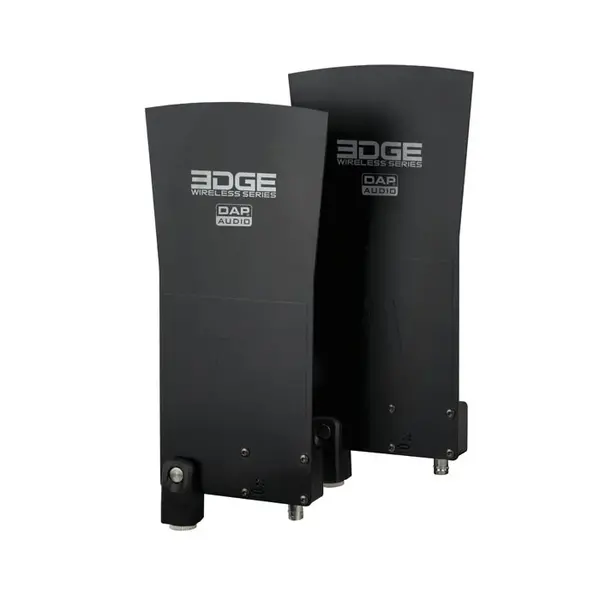

DAP | D1487 | EDGE EOA-1 | Set of two Active Omnidirectional Antennas

The DAP EDGE EOA-1 is a set of two omnidirectional antennas for placement in the centre of the area where wireless products are used. It is intended for use with the DAP EDGE series of wireless receivers, but can also be used for other wireless receivers that use the 470 - 980 MHz frequency band. The advantage of an external antenna is that it can be positioned elevated above the audience and/or performers for better reception and less interference. The DAP EDGE EOA-1 improves the signal strength by about 6 dB and improves reception for an interference-free experience.

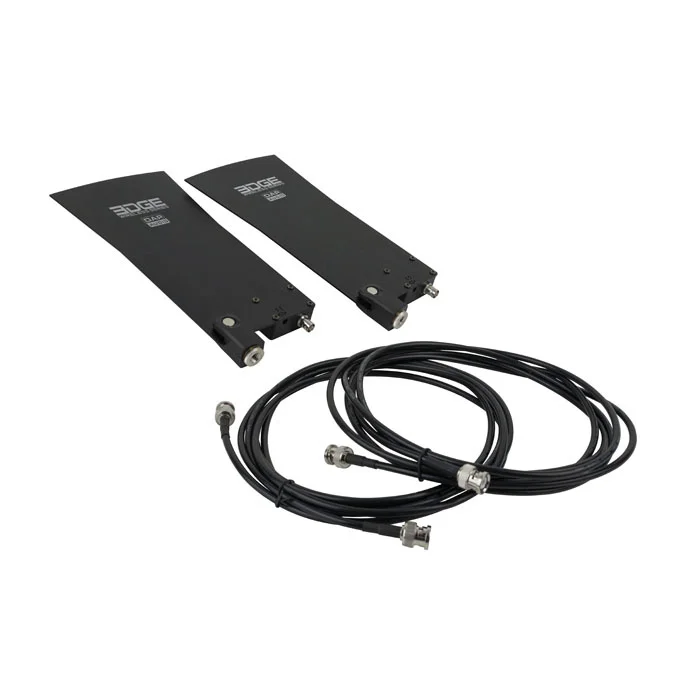

The EDGE EOA-1 comes with stand mount adapters, thread adapters, and 3-metre-long BNC cables.

Technical specifications
RF Antenna Outputs: 1
RF Antenna Output Connection: BNC
Wireless Audio Frequency Start: 470 MHz
Wireless Audio Frequency End: 980 MHz
Polar Pattern: Omni Directional
Height (mm): 257 mm
Width (mm): 26 mm
Length (mm): 129 mm
Weight: 0.3 kg
