DAP | D1531 | PMM-401 | 4-channel passive jack audio splitter/mixer

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

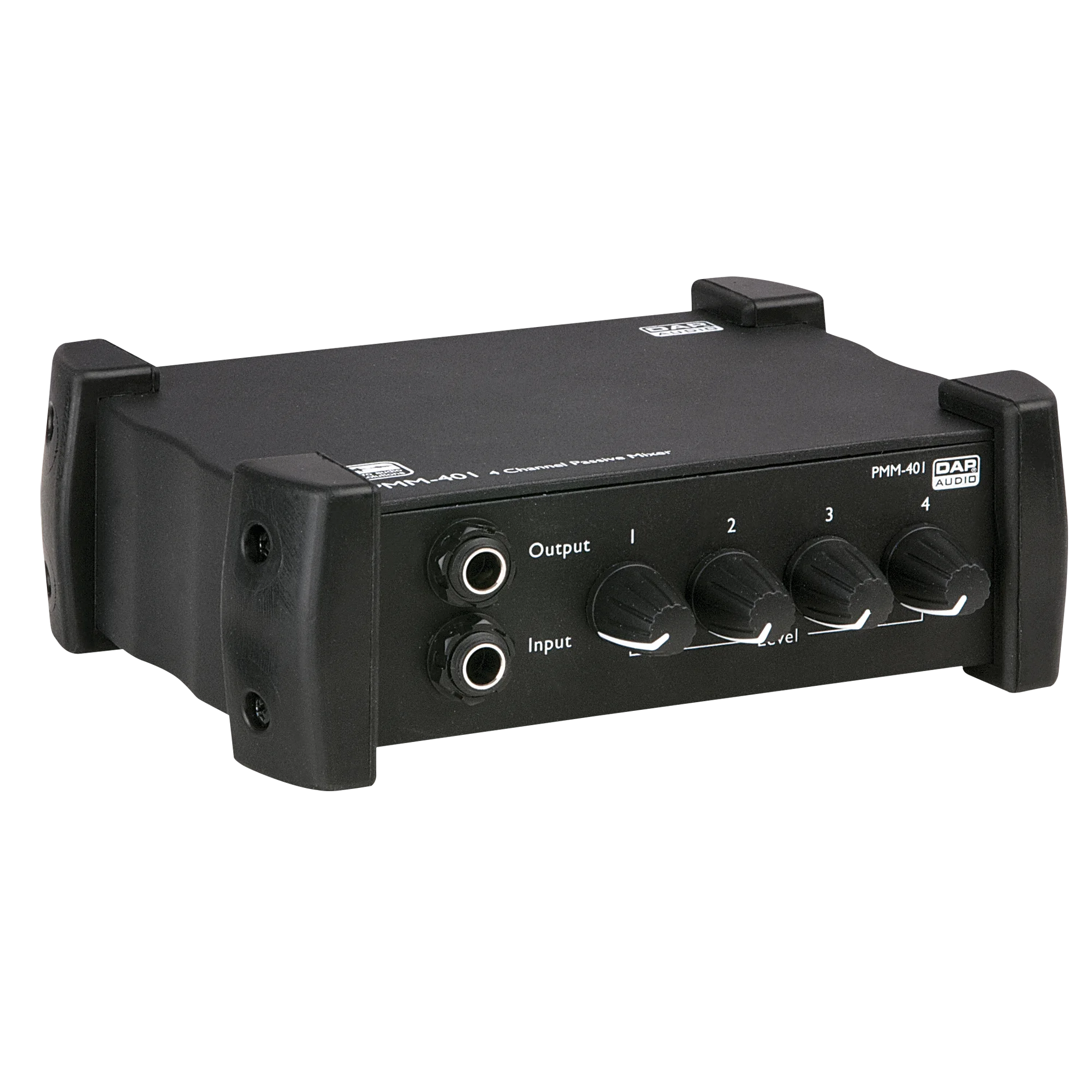

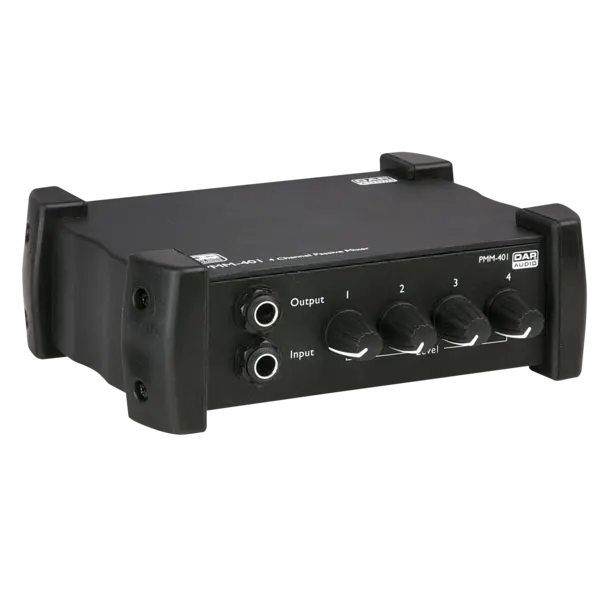

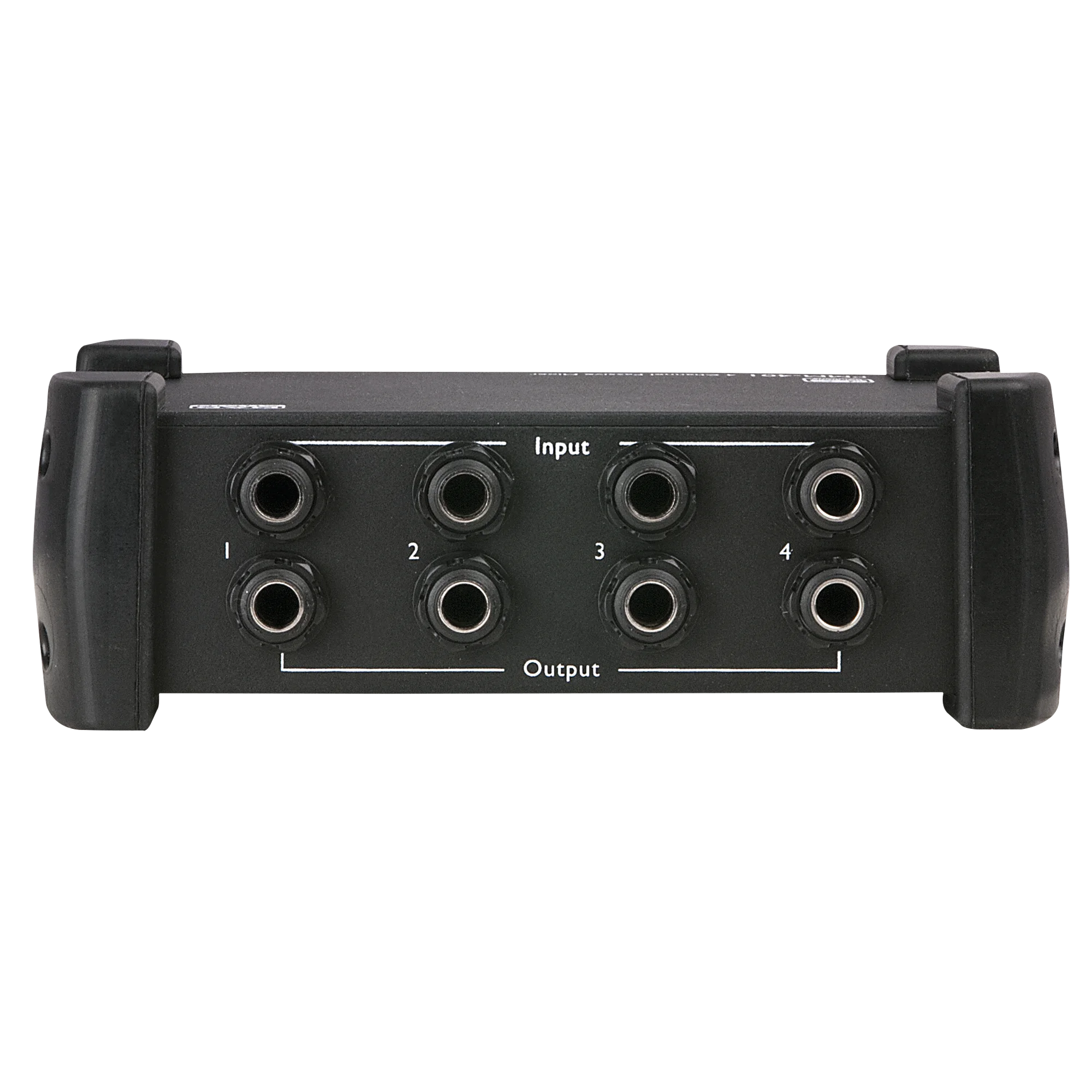

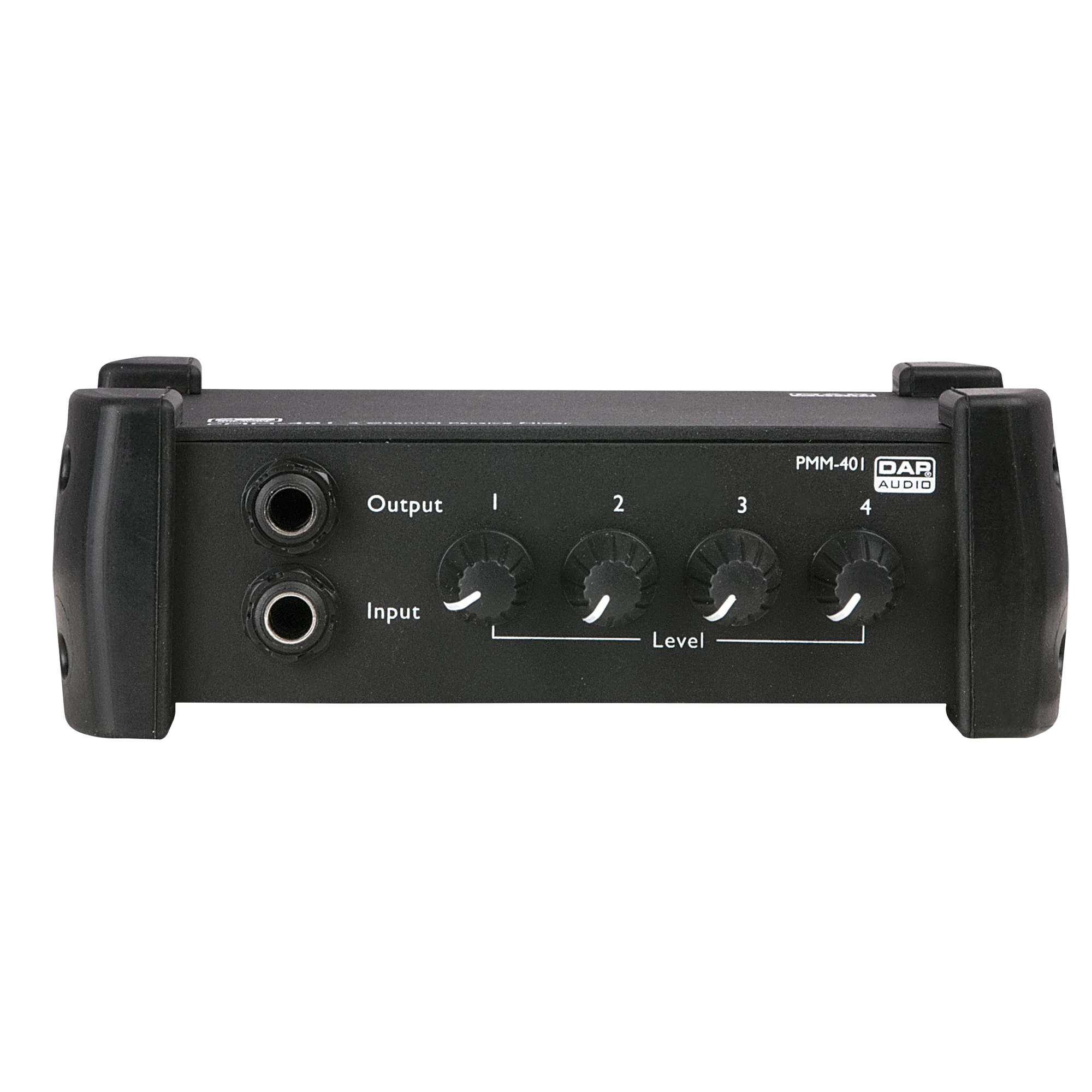

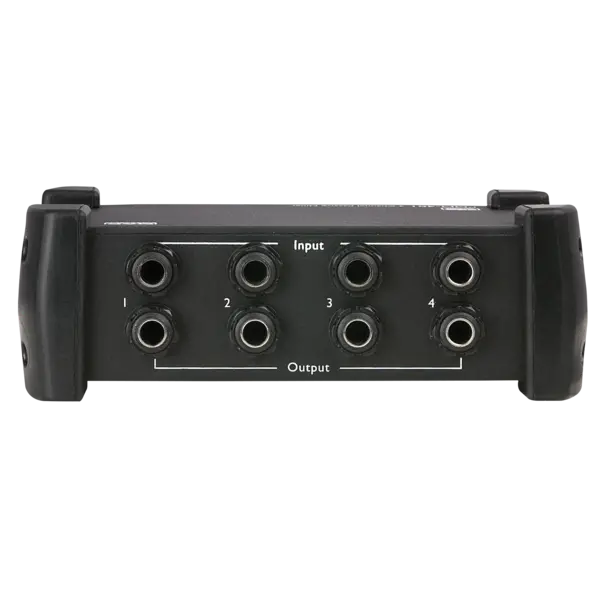

The DAP PMM-401 is a high-quality product that can function as a passive mixer or splitter with four stereo channels. You can combine 4 line inputs into one output or split one input into 4 outputs without noise or distortion.

The volume of each input/output can be adjusted to set appropriate mix/volume levels. This makes it a handy tool in unforeseen situations. In addition, it is a very handy device as it does not require a power source such as batteries or mains power.

Technical specifications
Mono Inputs: 5
Main Outputs: 5
THD Level: < 0.005 %
Signal-to-noise Ratio: > 110 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
