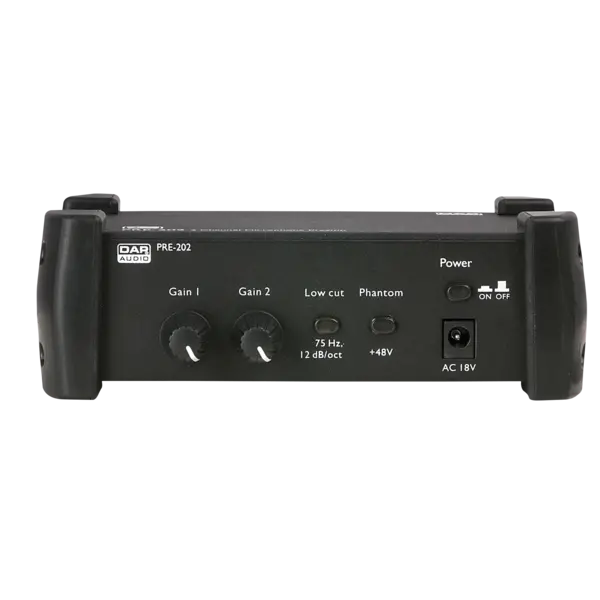

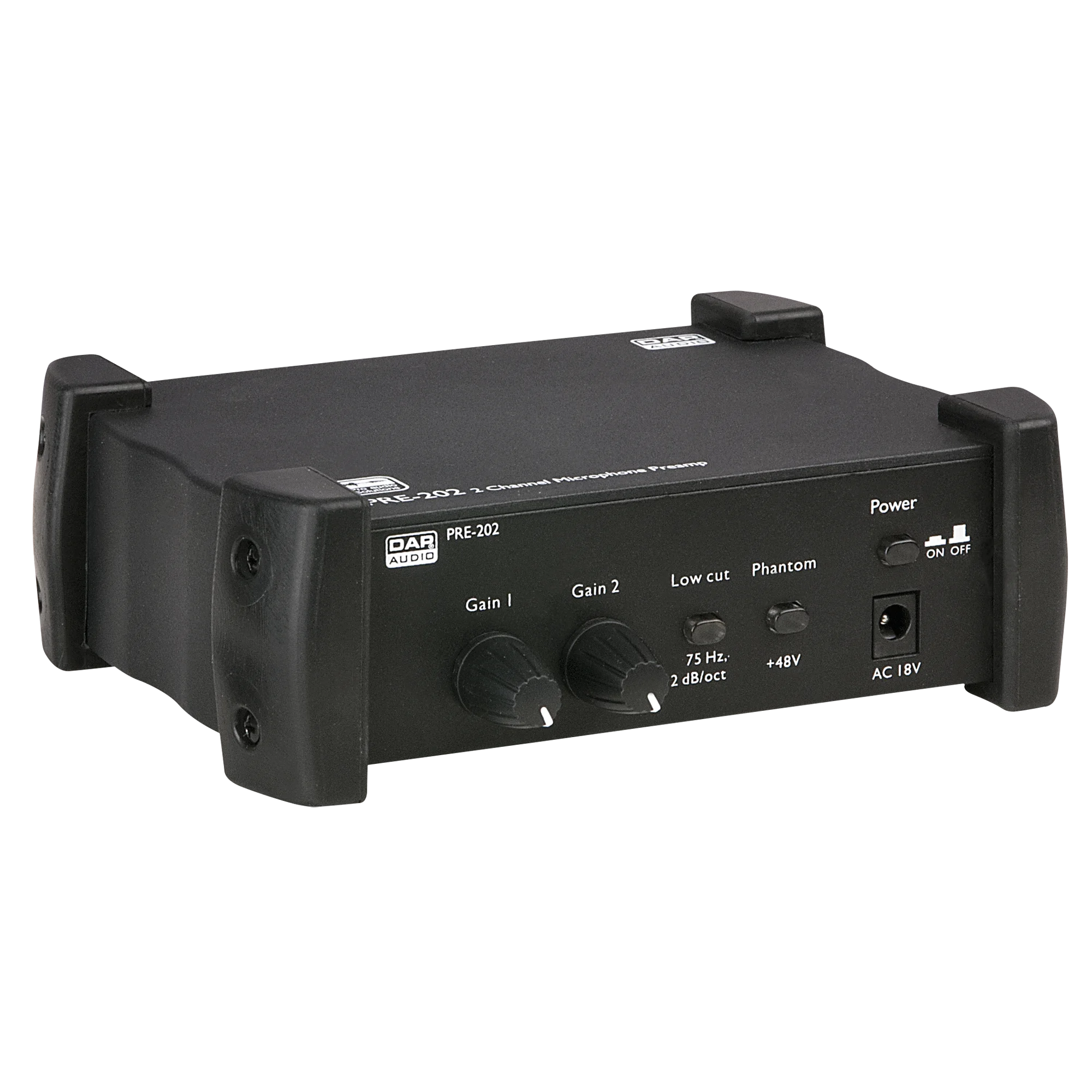

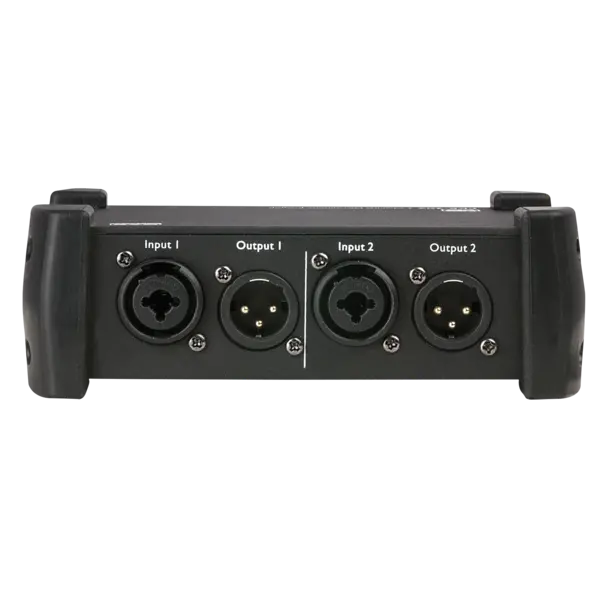

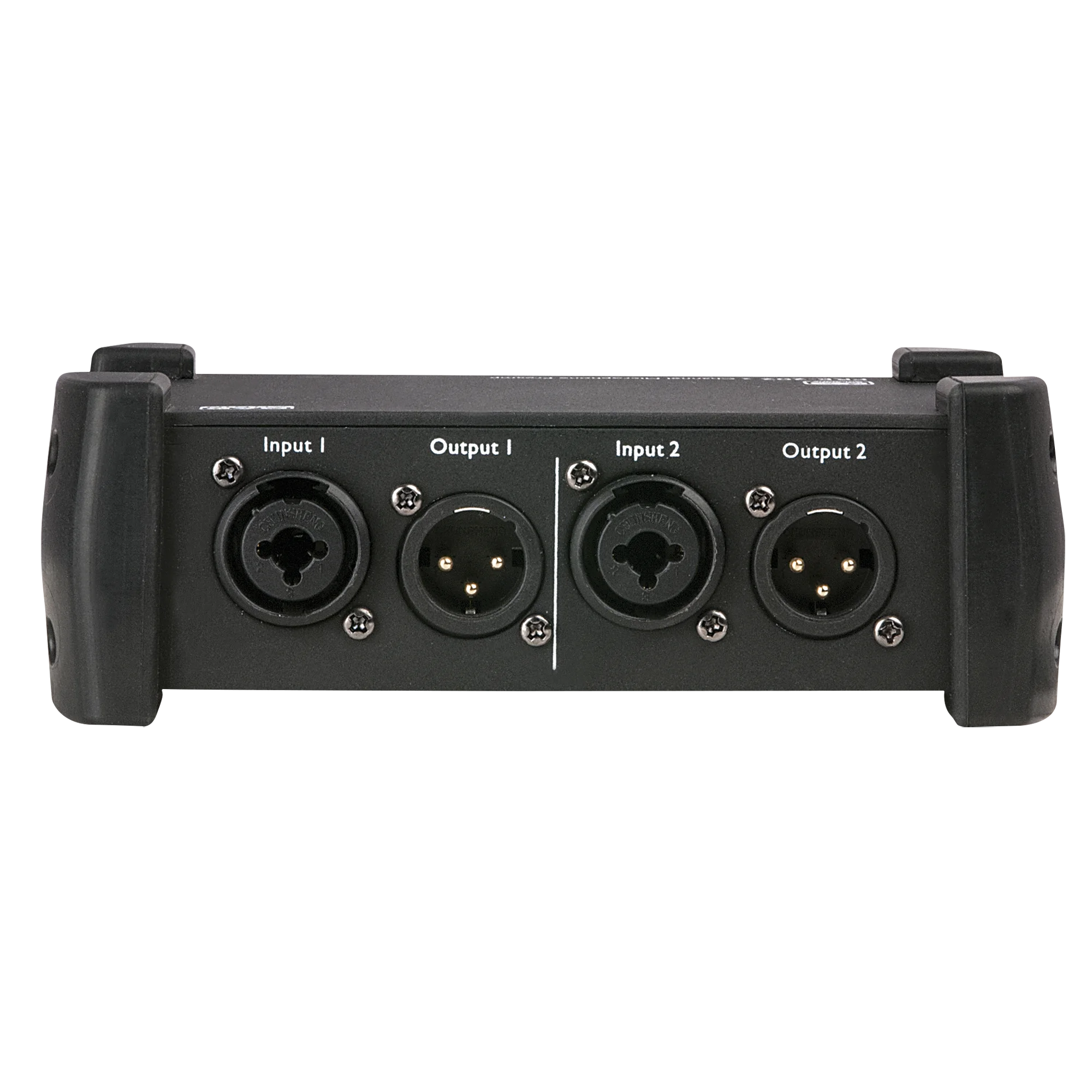

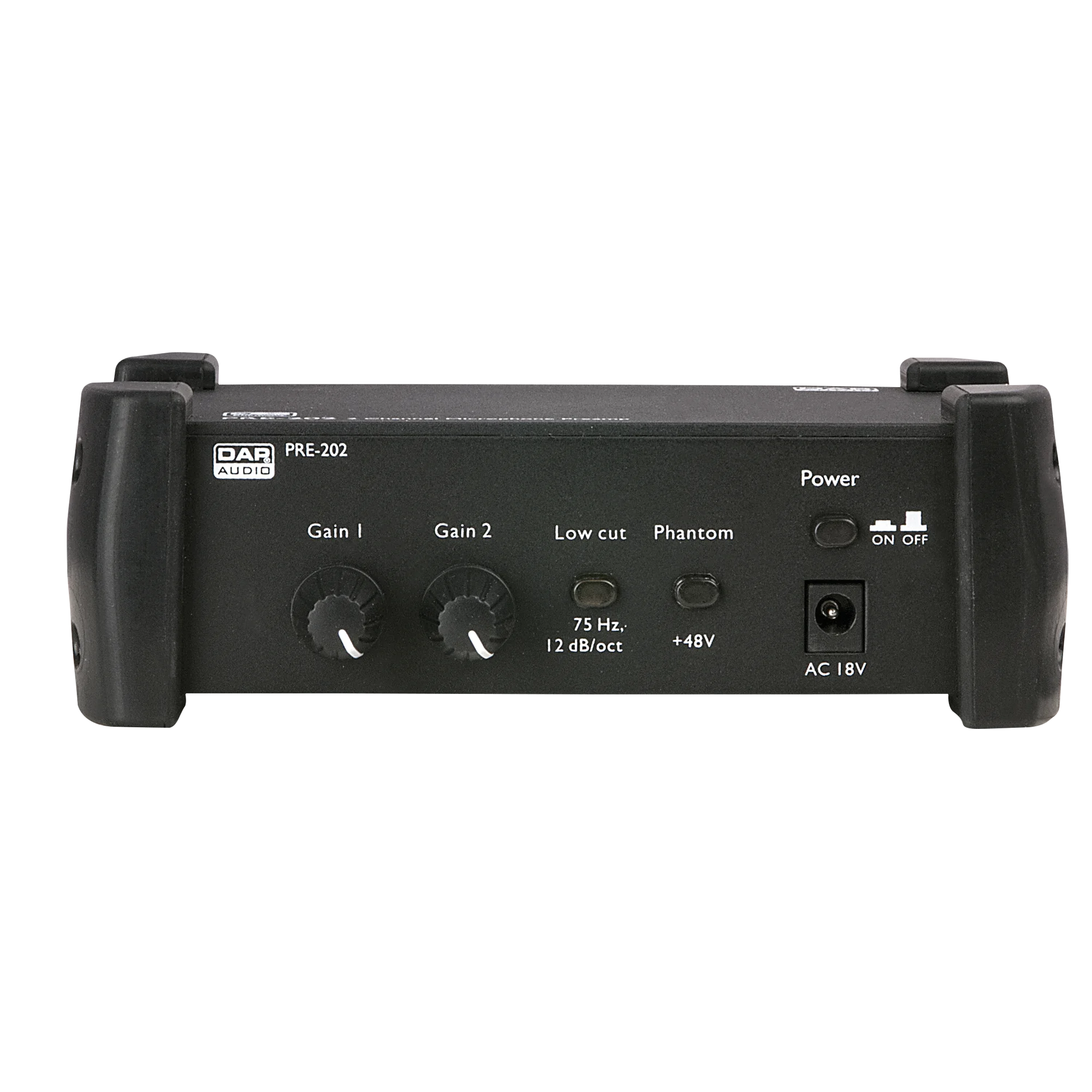

DAP | D1533 | PRE-202 | 2-channel Jack/XLR microphone preamp

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

The DAP PRE-202 is a low-noise 2-channel microphone amplifier with +48 V phantom power and low-cut function. The +48 V phantom power function allows you to connect both condenser and dynamic microphones. Its gain option and the low-cut function help you avoid unwanted background noise. This results in excellent output quality.

The PRE-202 is the ideal solution for applications where the use of condenser microphones is desired and the audio system does not supply phantom power to the microphone inputs, or has no microphone inputs at all.

Technical specifications
Mono Inputs: 2
Main Outputs: 2
THD Level: < 0.01 %
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20 Hz
