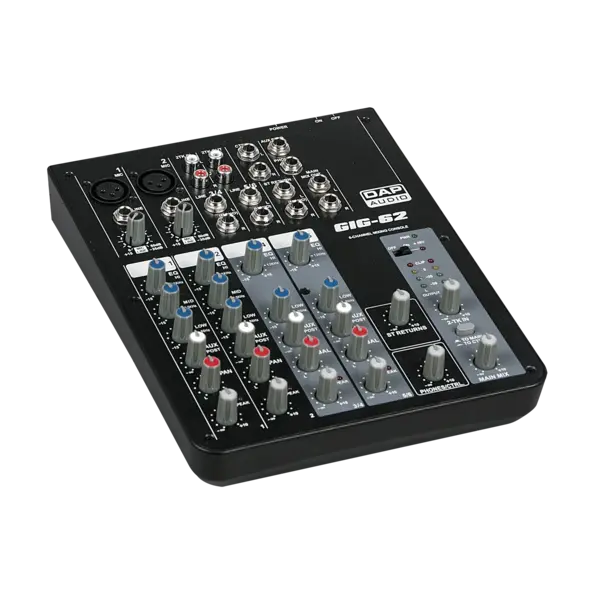

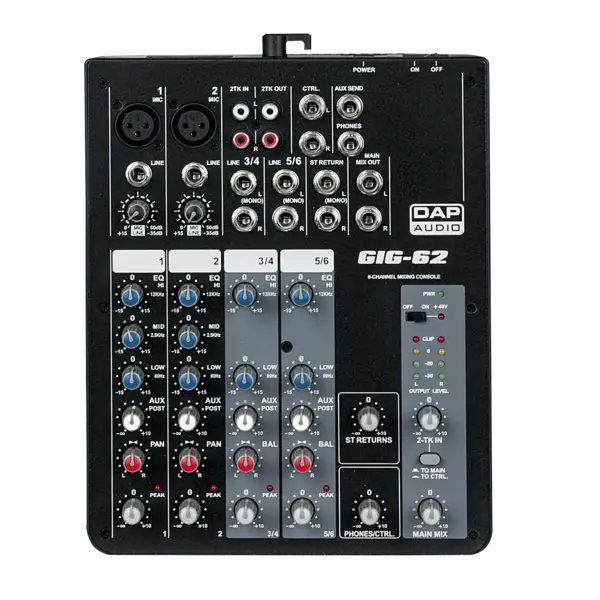

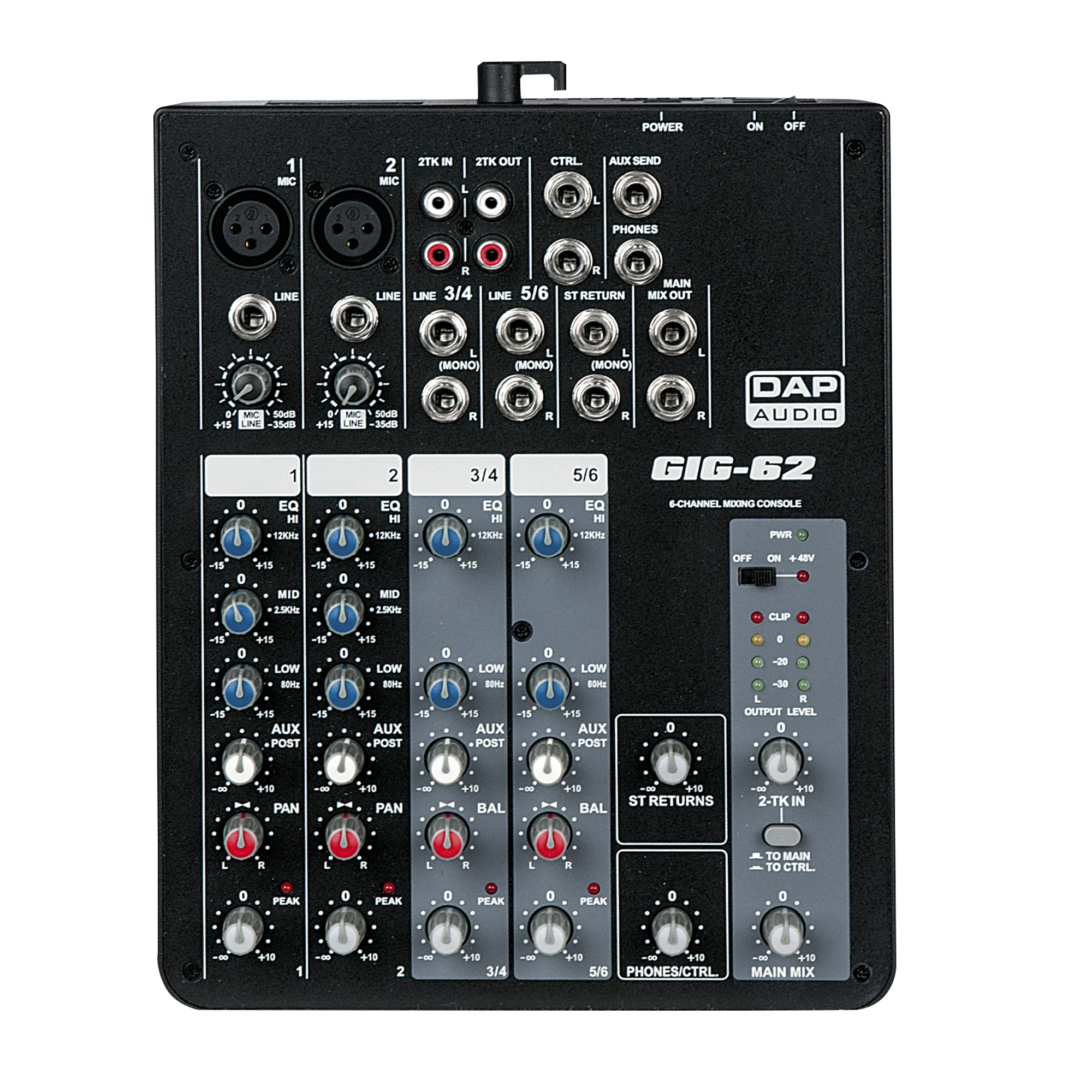

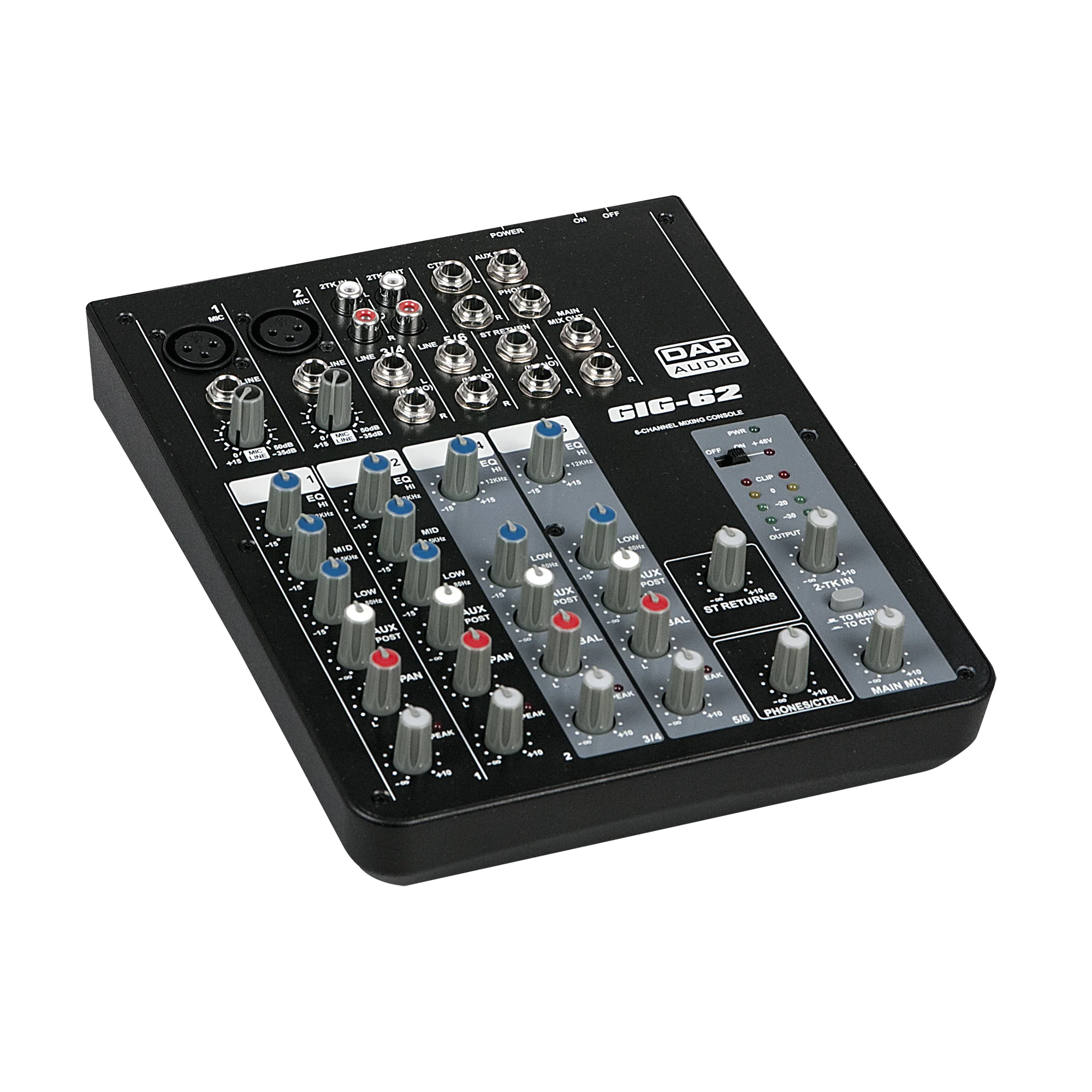

DAP | D2281 | GIG-62 | 6-channel analog mixer

The DAP GIG-62 is a 6-channel live mixer with 2 stereo and 2 mono inputs including +48 V phantom power for connecting either dynamic and condenser microphones. The mono channels are equipped with 3-bands EQ and the stereo channels are equipped with 2-bands EQ. It is possible to add external effects per channel thanks to the AUX sends. This compact and low-noise mixer is very practical for small performances, conference rooms and home recordings.

Technical specifications
Mono Inputs: 2
Stereo Inputs: 2
2-track Audio Input: Yes
Stereo Return Input: Yes
Main Outputs: 1
Auxiliary Outputs: 1
Control Room Output: 1
Headphone Output: 1
THD Level: < 0.03 %
Signal-to-noise Ratio: > 100 dB
Frequency Response Minimum: 22 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Parametric Channel Equalizer: 2 Bands
Input Channel Fixed Frequencies: 80, 12.000 Hz
Parametric Microphone Equalizer: 3 Bands
Microphone Input Fixed Frequencies: 80, 2.500, 12.000 Hz
Power Supply: 240 VAC 50-60 Hz
Power Consumption: 14 W
Height (mm): 60 mm
Width (mm): 19.6 mm
Length (mm): 244 mm
