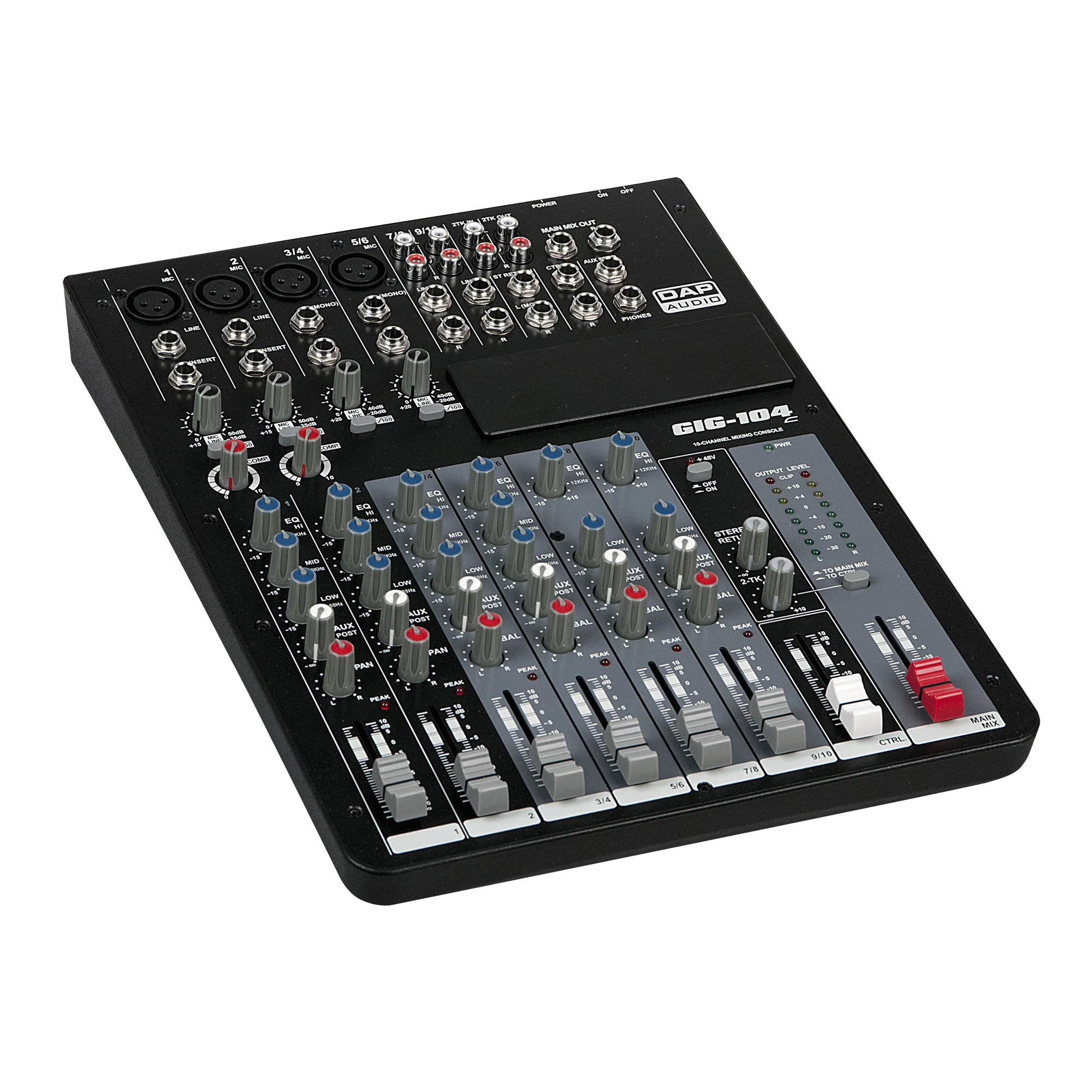

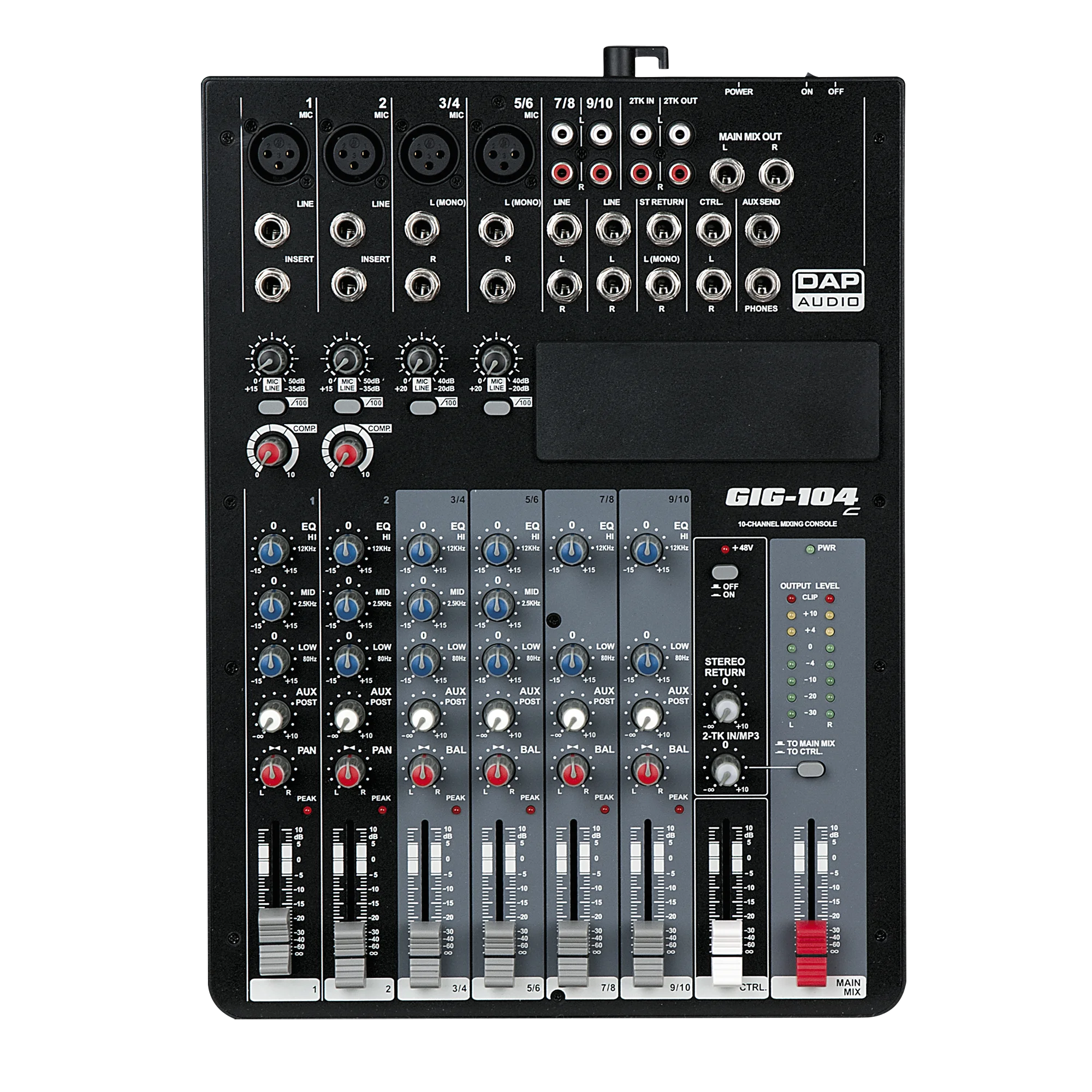

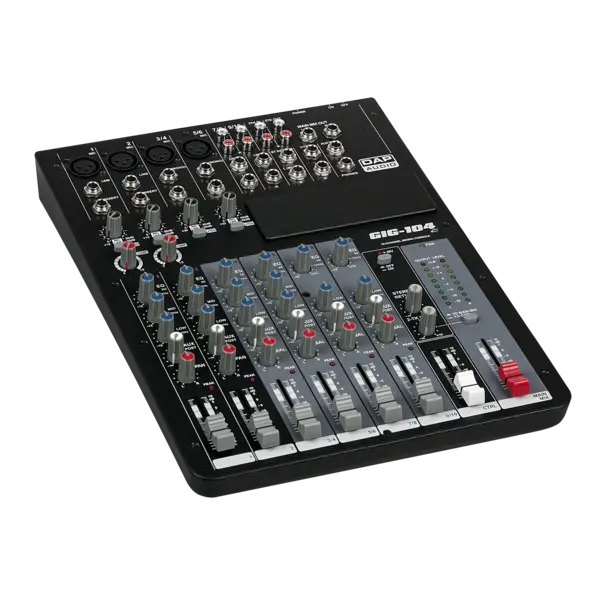

DAP | D2283 | GIG-104C | 10-channel analog mixer

The DAP GIG-104C is a 10-channel live mixer with 4 stereo and 2 mono inputs including +48 V phantom power for connecting either dynamic and condenser microphones. Both mono and two stereo signals include a 3-bands EQ. The other two stereo signals include a 2-bands EQ. The first two mono signals have an onboard compression module to ensure that the vocals are even and well intelligible.

It is possible to use an external effect device thanks to its send- and return connections. Besides, you can integrate the MP3 USB Record Module that is especially designed for DAP GIG analogue mixers.

Technical specifications
Mono Inputs: 4
Stereo Inputs: 4
2-track Audio Input: Yes
Stereo Return Input: Yes
Main Outputs: 1
Auxiliary Outputs: 1
Control Room Output: 1
Headphone Output: 1
THD Level: < 0.03 %
Signal-to-noise Ratio: > 100 dB
Frequency Response Minimum: 22 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Parametric Channel Equalizer: 2 Bands
Input Channel Fixed Frequencies: 80, 12.000 Hz
Parametric Microphone Equalizer: 3 Bands
Microphone Input Fixed Frequencies: 80, 2.500, 12.000 Hz
Dynamics Processing: Compressor
Power Supply: 240 VAC 50-60 Hz
Power Consumption: 24 W
Height (mm): 63 mm
Width (mm): 254 mm
Length (mm): 343 mm
