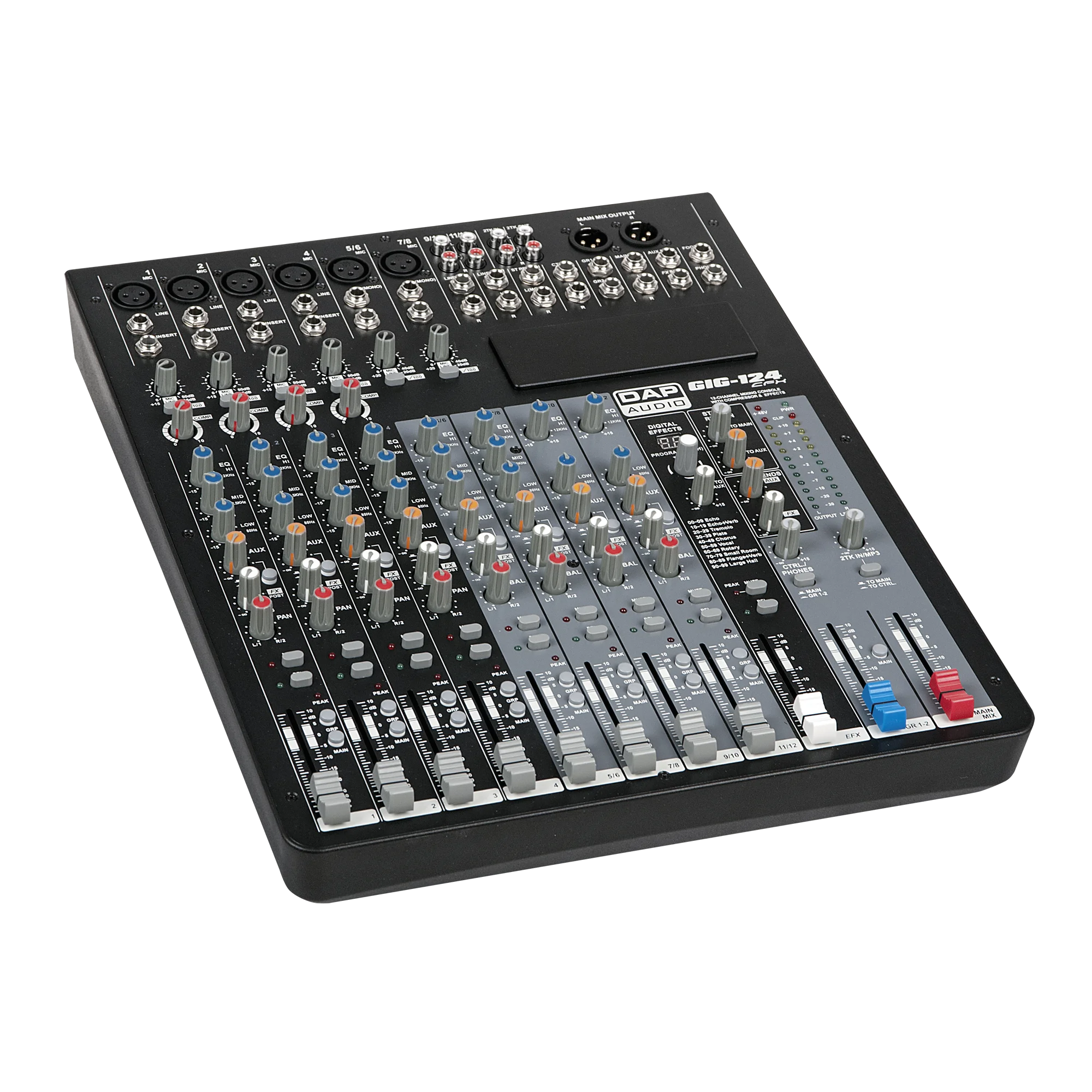

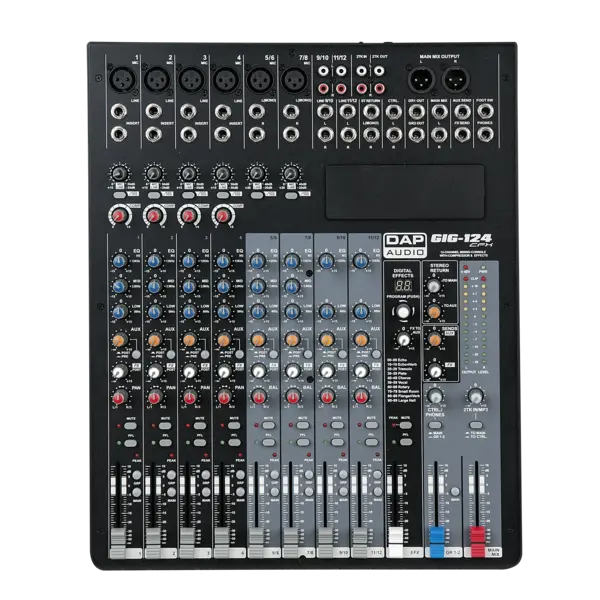

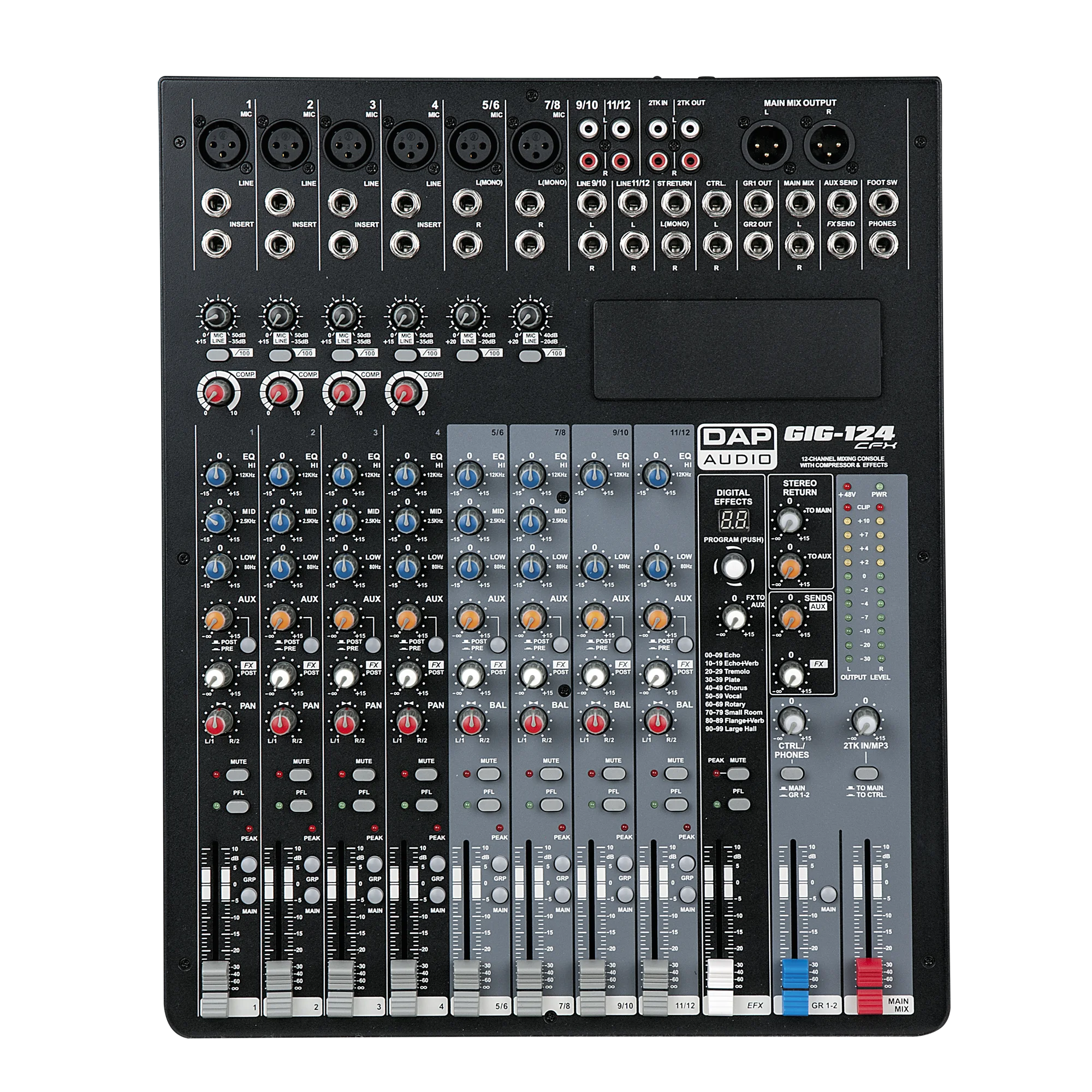

DAP | D2285 | GIG-124CFX | 12-channel analog mixer

The DAP GIG-124CFX is a 12-channel live mixer with 4 stereo and 4 mono inputs including +48 V phantom power for connecting both dynamic and condenser microphones. The mono and first two stereo signals include a 3-bands EQ and the last two stereo signals include a 2-bands EQ.

Equipped with a 24-bit DSP effect, the GIG-124CFX has 100 individually assignable presets for adding a nice effect, such as chorus, delay and reverb. In addition, all mono signals have an onboard compression module for ensuring all vocals are even and well intelligible.

An external effect device is optional due to its send and return connections. Besides, you can integrate the MP3 USB Record Module that is especially designed for DAP GIG analogue mixers.

Technical specifications
Mono Inputs: 6
Stereo Inputs: 4
2-track Audio Input: Yes
Stereo Return Input: Yes
FX Return Inputs: 1
Main Outputs: 1
Auxiliary Outputs: 1
Group Outputs: 2
FX Send Outputs: 1
Control Room Output: 1
Headphone Output: 1
THD Level: < 0.03 %
Signal-to-noise Ratio: > 100 dB
Frequency Response Minimum: 22 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Parametric Channel Equalizer: 2 Bands
Input Channel Fixed Frequencies: 80, 12.500 Hz
Parametric Microphone Equalizer: 3 Bands
Microphone Input Fixed Frequencies: 80, 2.500, 12.500 Hz
Dynamics Processing: Compressor
Built-in FX: Yes
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 40 W
Height (mm): 93 mm
Width (mm): 340 mm
Length (mm): 416 mm
