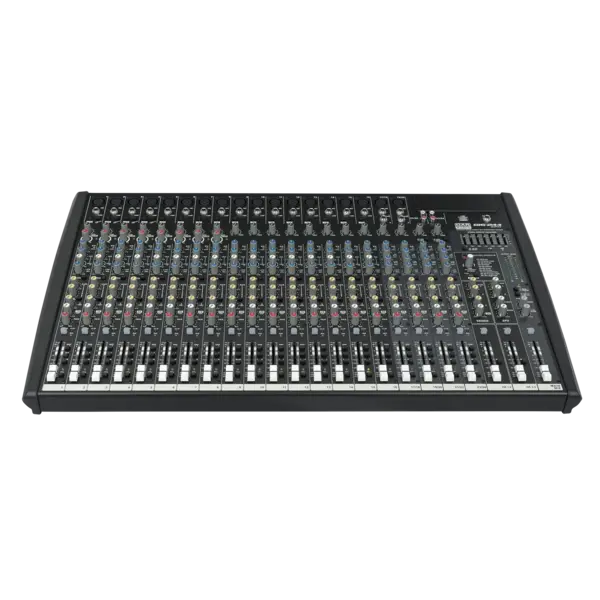

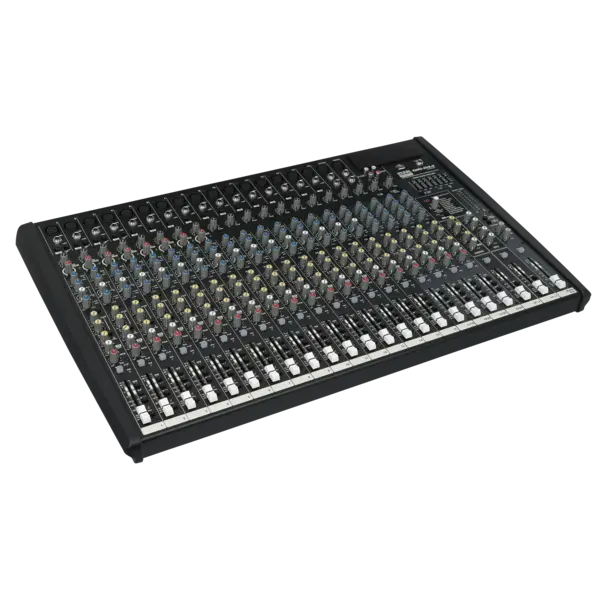

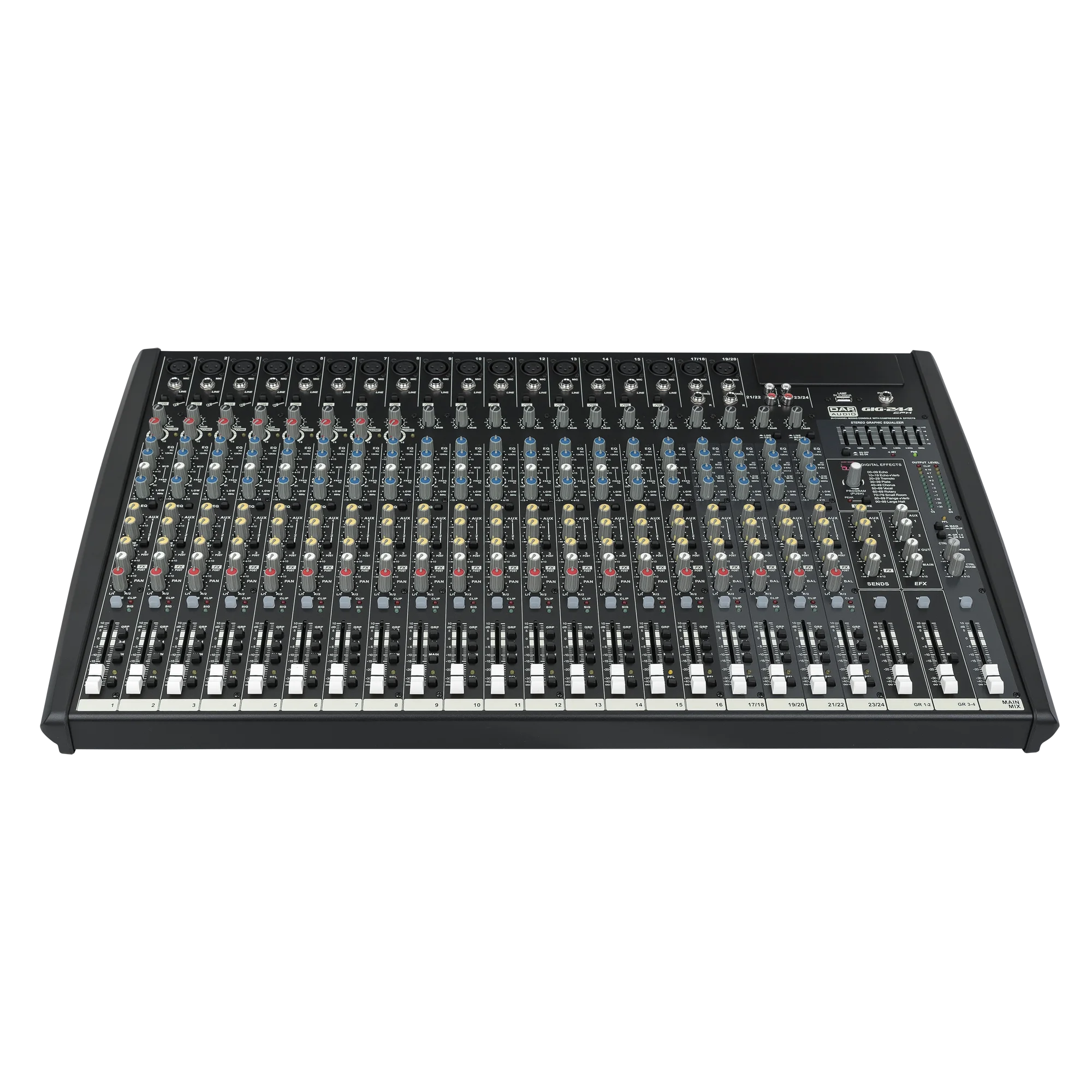

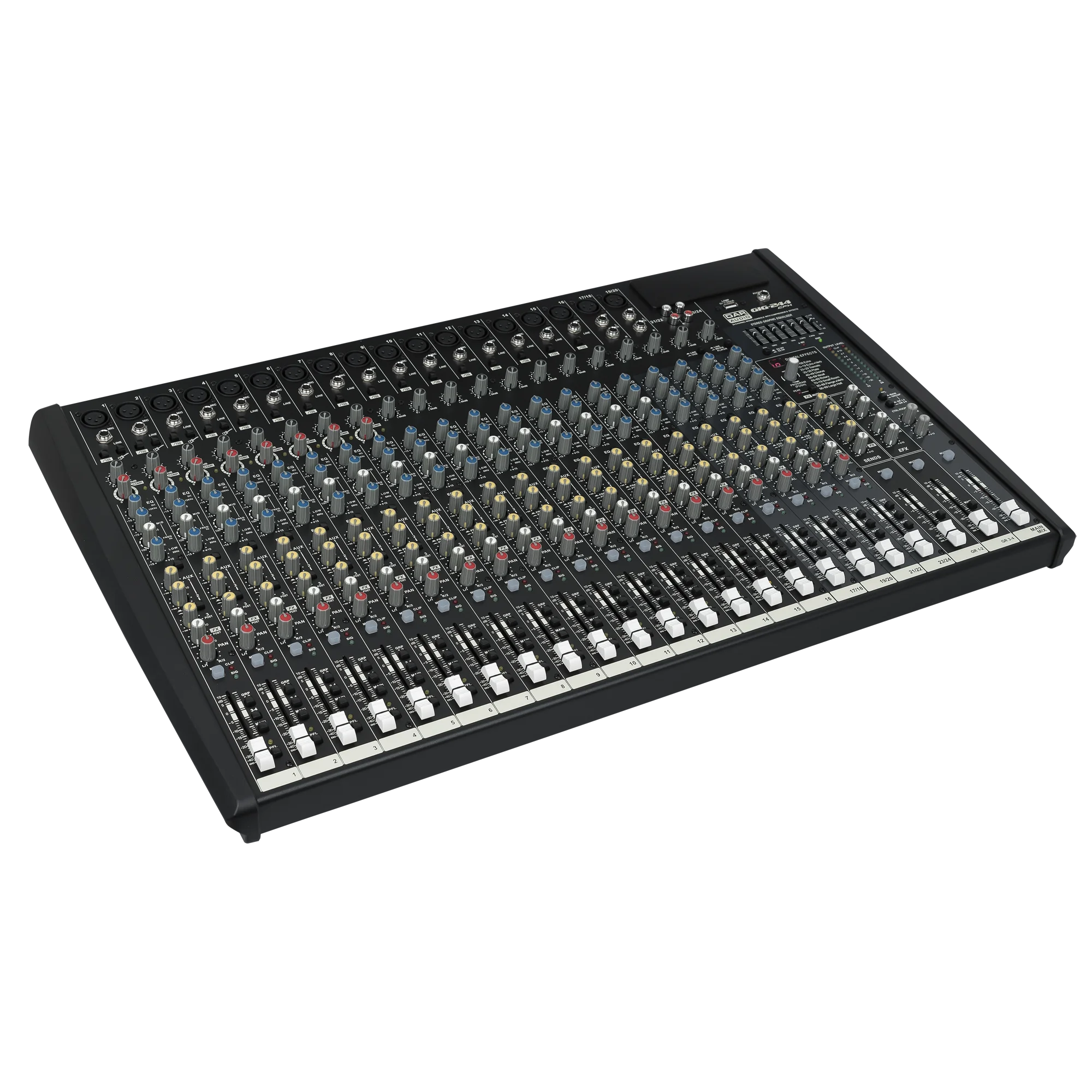

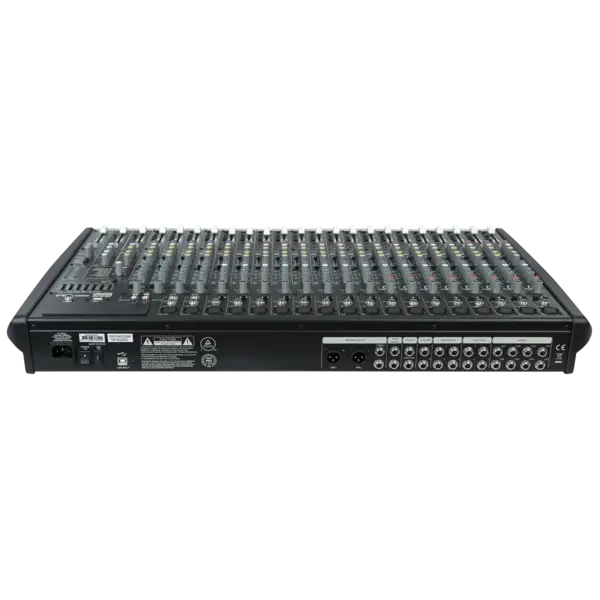

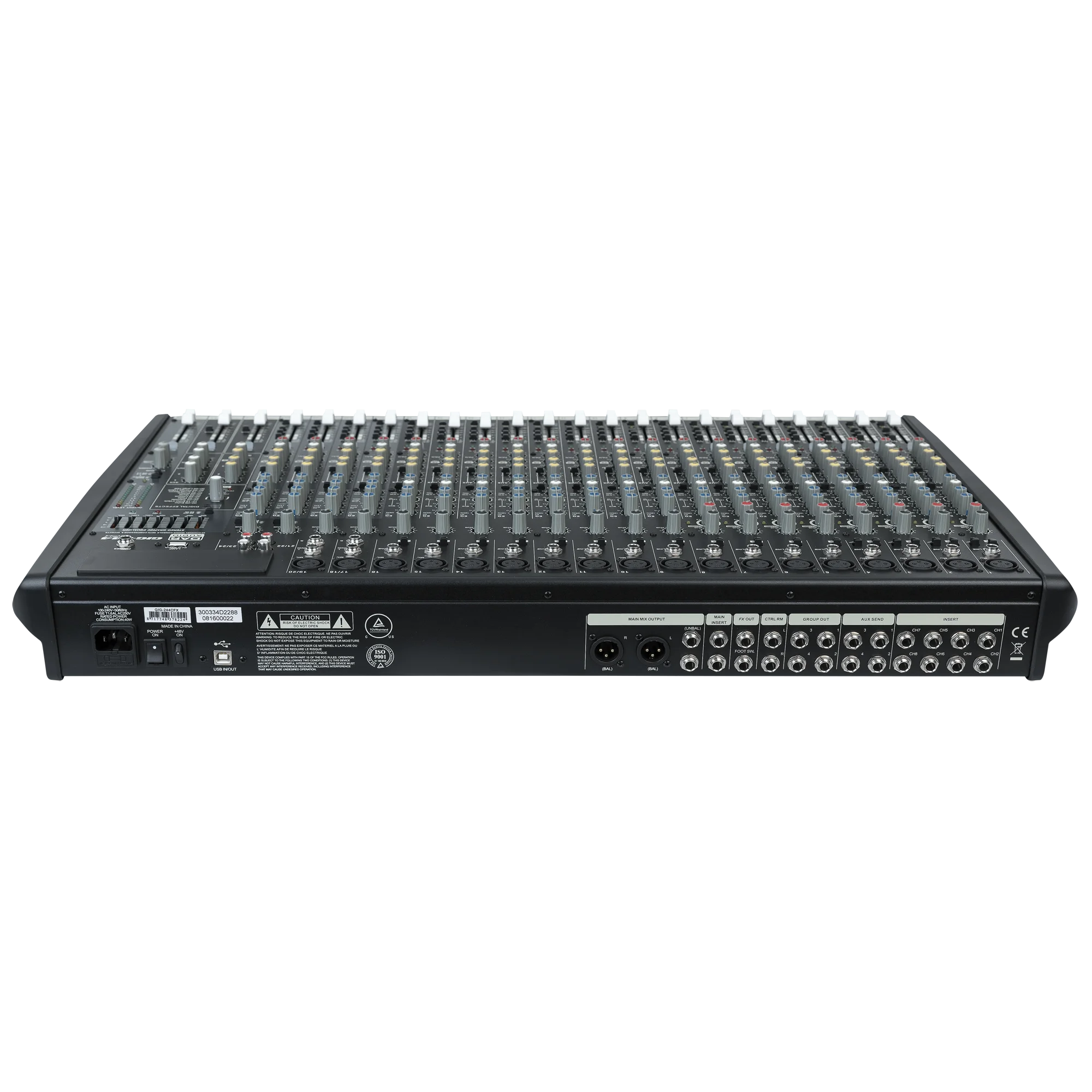

DAP | D2288 | GIG-244CFX | 24-channel analog mixer (16 mono, 4 stereo)

The DAP GIG-244CFX is a 24-channel analog mixer (16 mono and 4 stereo inputs) with integrated media player, dynamics and 24-bit DSP. The microphone preams support +48 V phantom power and produce an ultra low noise. 8 microphone channels are equipped with a compression control for ensuring the vocals are even and intelligible.

Each input contains various controling options, such as EQ, mute, pan, gain and FX input level. The only difference between mono and stereo inputs is the EQ options, where mono inputs have a 3-band EQ with adjustable MID frequency and stereo inputs have a 4-band EQ.

The GIG-244CFX is equipped with a main mix and two stereo group outputs. This allows musicians to set their stereo mix to their own taste. Changing the faders affects the main mix, but keeps stereo groups untouched.

Technical specifications
Mono Inputs: 18
Stereo Inputs: 4
2-track Audio Input: No
Stereo Return Input: No
Insert Channel: Yes
Main Outputs: 1
Auxiliary Outputs: 4
Group Outputs: 4
FX Send Outputs: 1
Control Room Output: 1
Headphone Output: 1
Audio Interface USB Input: 1
THD Level: < 0.03 %
Signal-to-noise Ratio: > 100 dB
Frequency Response Minimum: 22 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Parametric Channel Equalizer: 4 Bands
Input Channel Fixed Frequencies: 80, 500, 3.000, 12.000 Hz
Parametric Microphone Equalizer: 3 Bands
Microphone Input Sweep Frequencies: 100 - 8.000 Hz
Microphone Input Fixed Frequencies: 80, 12.000 Hz
Graphic Main Equalizer: 7 Bands
Dynamics Processing: Compressor
Built-in FX: Yes
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 60 W
Height (mm): 85 mm
Width (mm): 435 mm
Length (mm): 753 mm
