DAP | D2314 | CORE Club | 4-channel DJ-mixer

DAP CORE is a DJ series including DJ Mixers and a Table Top. They are all made of high quality materials and built to last and outperform. It's a durable range of DJ gear with a high price-to-quality ratio suitable for club, mobile, karaoke and home DJs from beginner to the more experienced player.

DAP Audio has created two DJ Mixer models which are available in 2, 3 and 4-channel versions. The basic and latest set of mixers are the CORE Scratch (2-Ch), Beat (3-ch) and Club (4 Ch). Next to its basic functionalities, each model has bluetooth playback, a VU channel indication and both a Master and Booth output with separate volume control.

More advanced mixers are the CORE MIX-2 (2-Ch), MIX-3 (3-Ch) and MIX-4 (4-Ch). They are equipped with a USB record module, two built-in USB audio interfaces for MAC/PC and variable FX send / return for each channel. This allows you to record your set, add audio effects and play music from your laptop, table top or even Vinyl player.

The DAP CORE CDMP-750 Table Top is a CD/USB player for completing your DJ setup. It enables you to scratch, Cue, pitch, play memory loops, add built-in audio effects and more! It supports CDs and USB sticks of up to 2 terabyte and works perfectly fine together with the CORE DJ Mixers by using the digital output. Interested in our DAP CORE series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

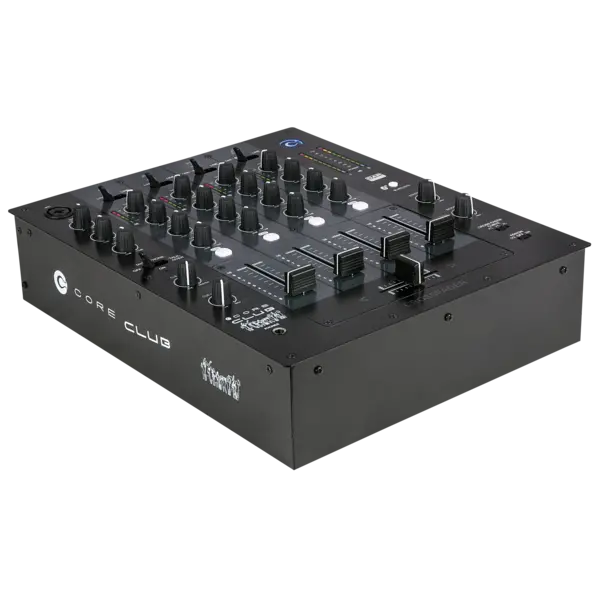

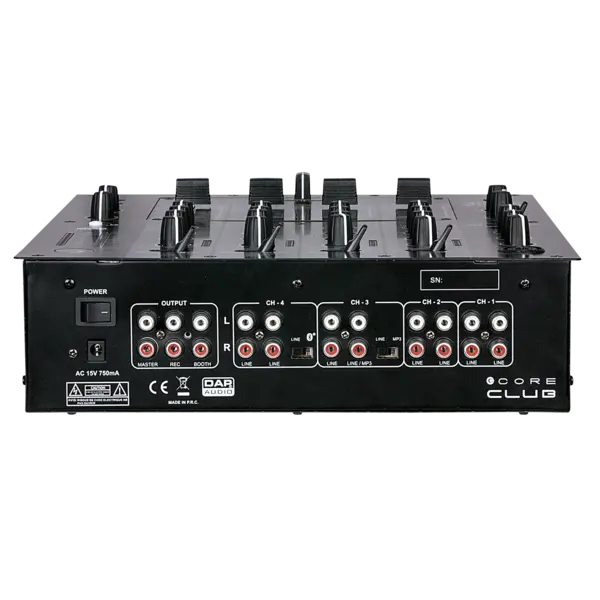

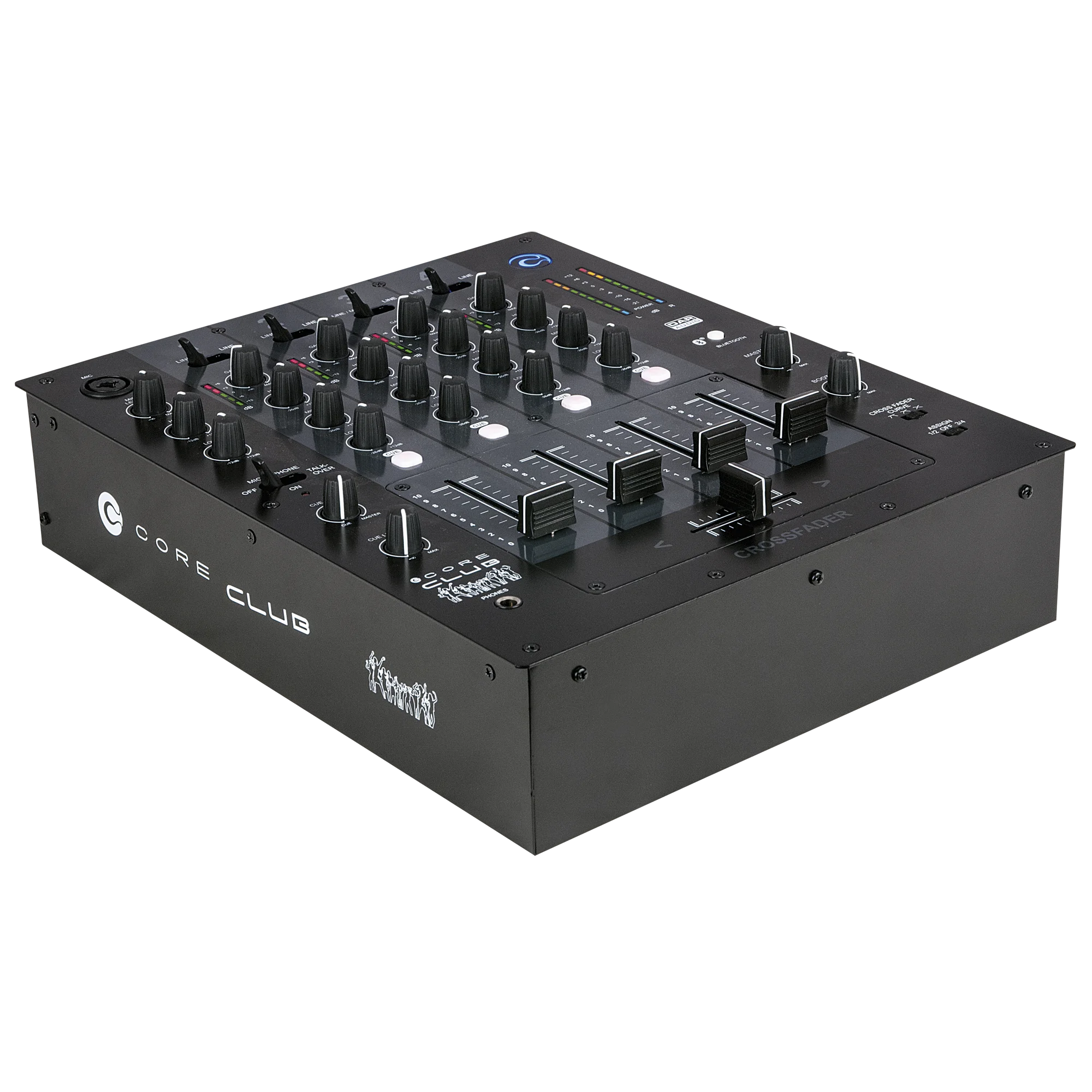

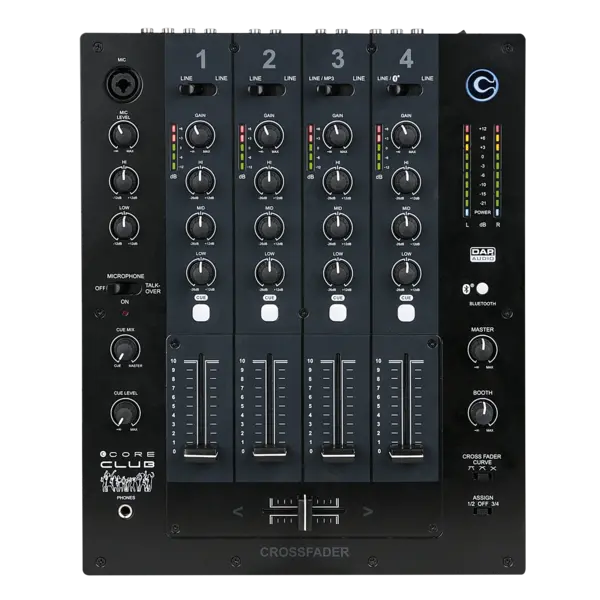

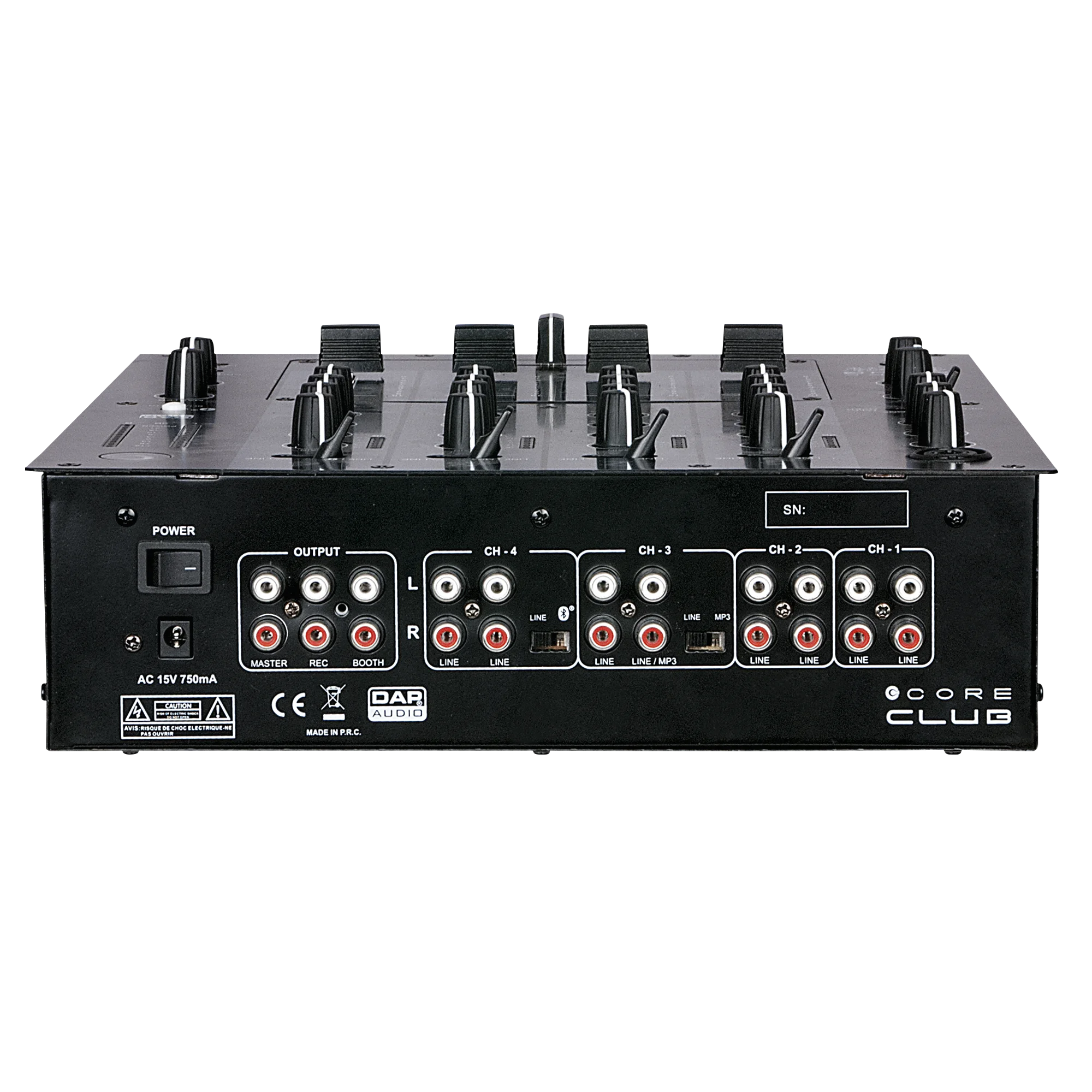

The DAP CORE Club is a 4-channel DJ mixer and can be considered the little brother of the DAP Core MIX-4 USB. It has 8 Line/MP3 inputs, a microphone input and Bluetooth playback module. Each channel has a volume fader, 3-band equalizer, gain and cue knob. The crossfader can be assigned to channel 1/2 or 3/4.

The CORE Club has an output with volume control for both master and booth. In addition, you can choose from three crossfader curves. VU indicators are provided for both the master output and for each channel separately to prevent clipping.

Technical specifications
Mono Inputs: 1
Stereo Inputs: 8
Main Outputs: 1
Monitor Outputs: 1
Record Output: 1
THD Level: < 0.05 %
Signal-to-noise Ratio: > 80 dB
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Input Channel Equalizer Gain Range: 12 dB
Microphone Input Equalizer Gain Range: 12 dB
Bluetooth Range: 25 m
Power Supply: 240 VAC 50-60 Hz
Power Consumption: 8.2 W
Height (mm): 84 mm
Width (mm): 292 mm
Length (mm): 356 mm
