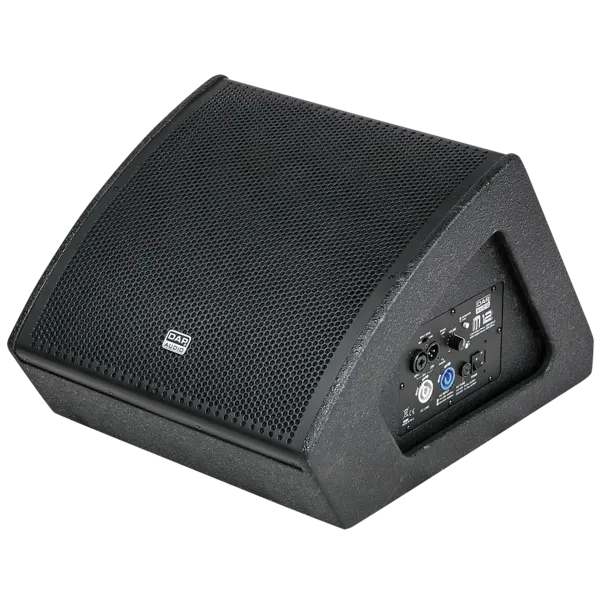

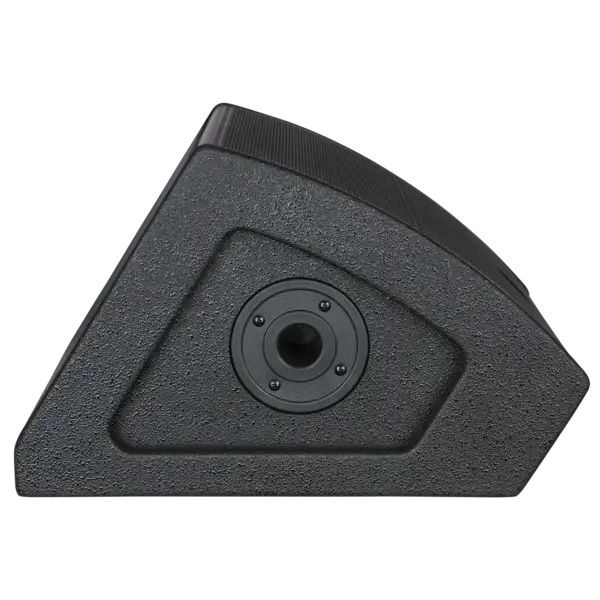

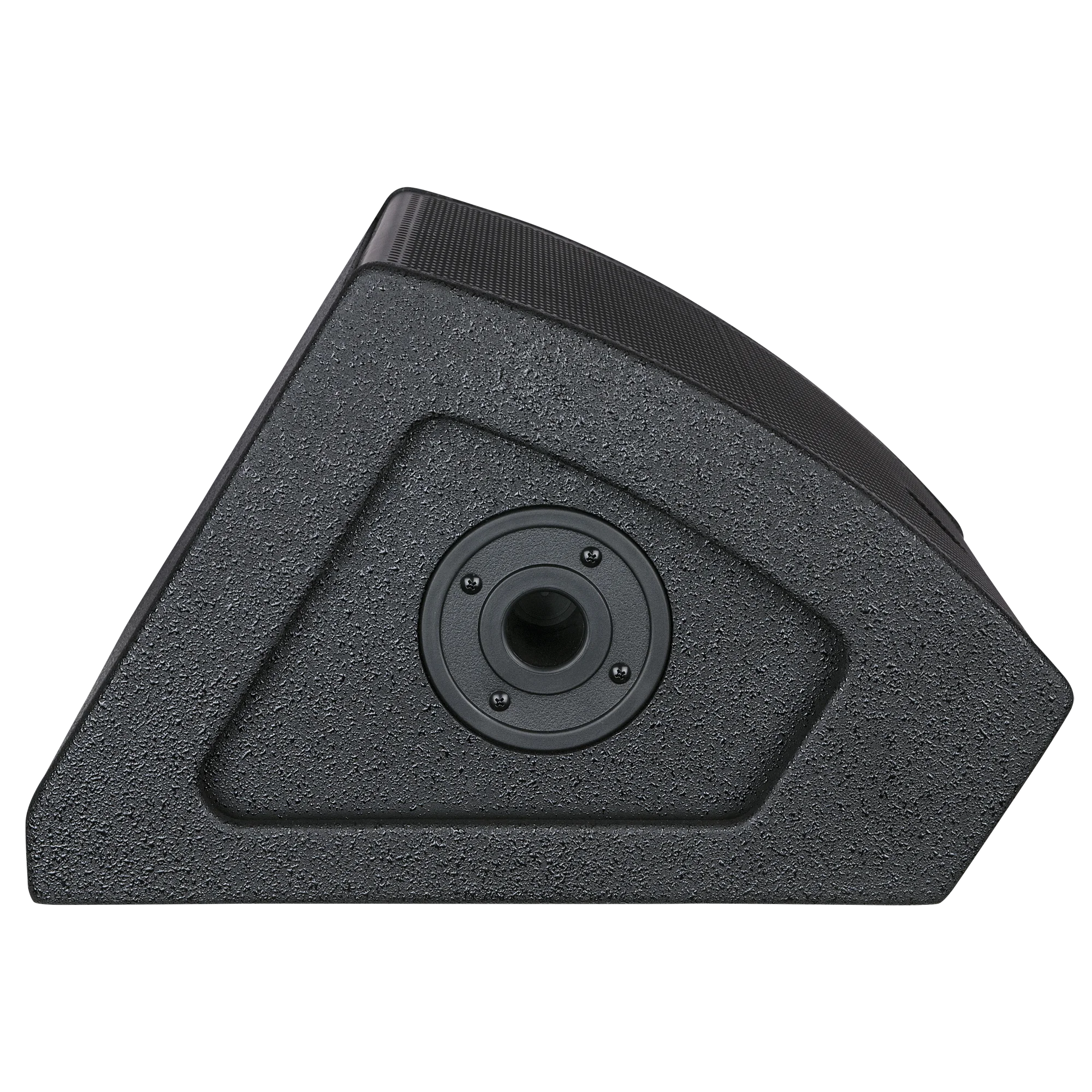

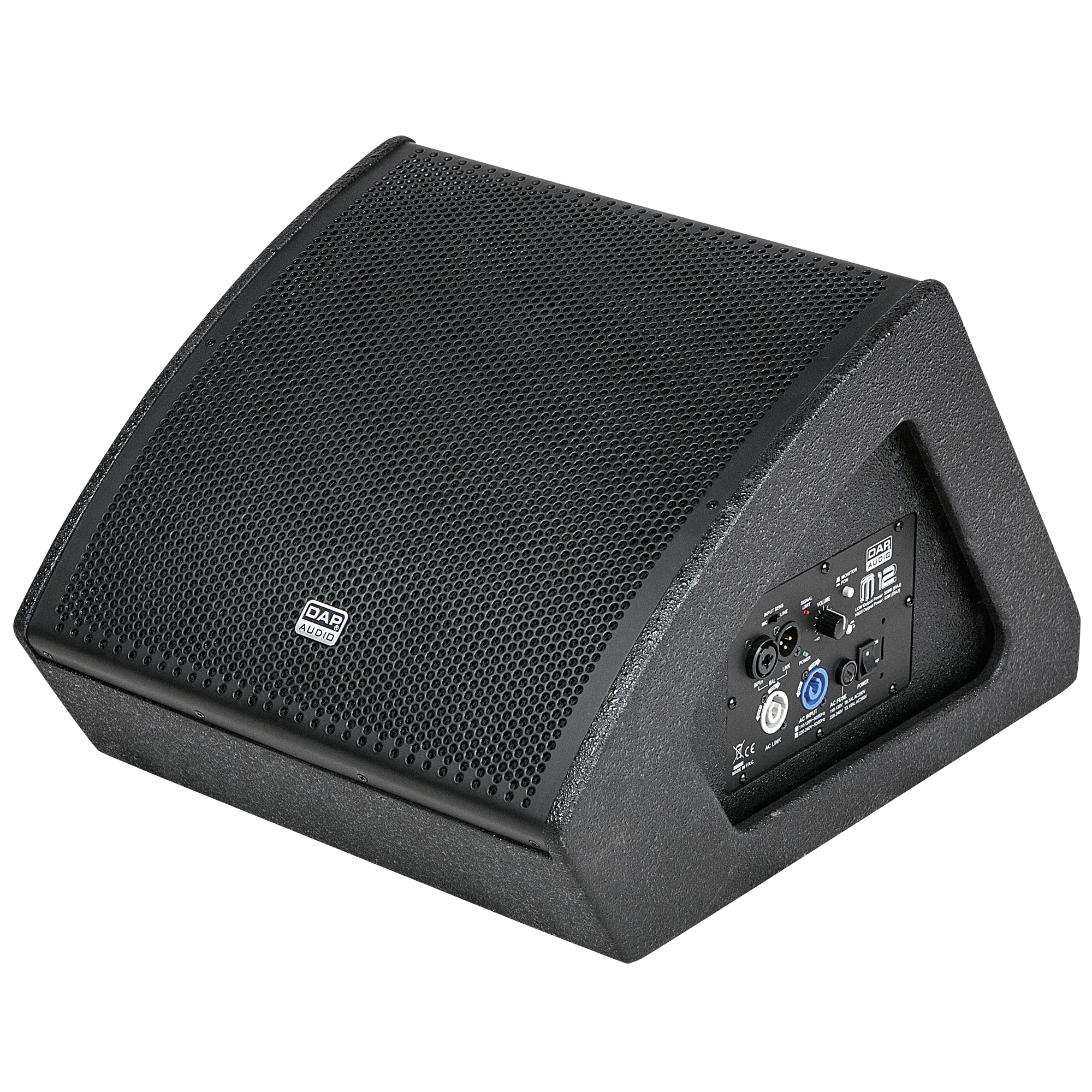

DAP | D3661 | M12 | Active 12" floor monitor

The DAP M12 is an active floor monitor speaker with a 12-inch woofer and a total power of 415 watt, especially built to amplify sounds on stage. It features a 60° wedge design and a coaxial speaker for transparent and direct 'in your face' sound with consistent coverage. The powerful Class D amplifier provides good sound quality, even at a high volume.

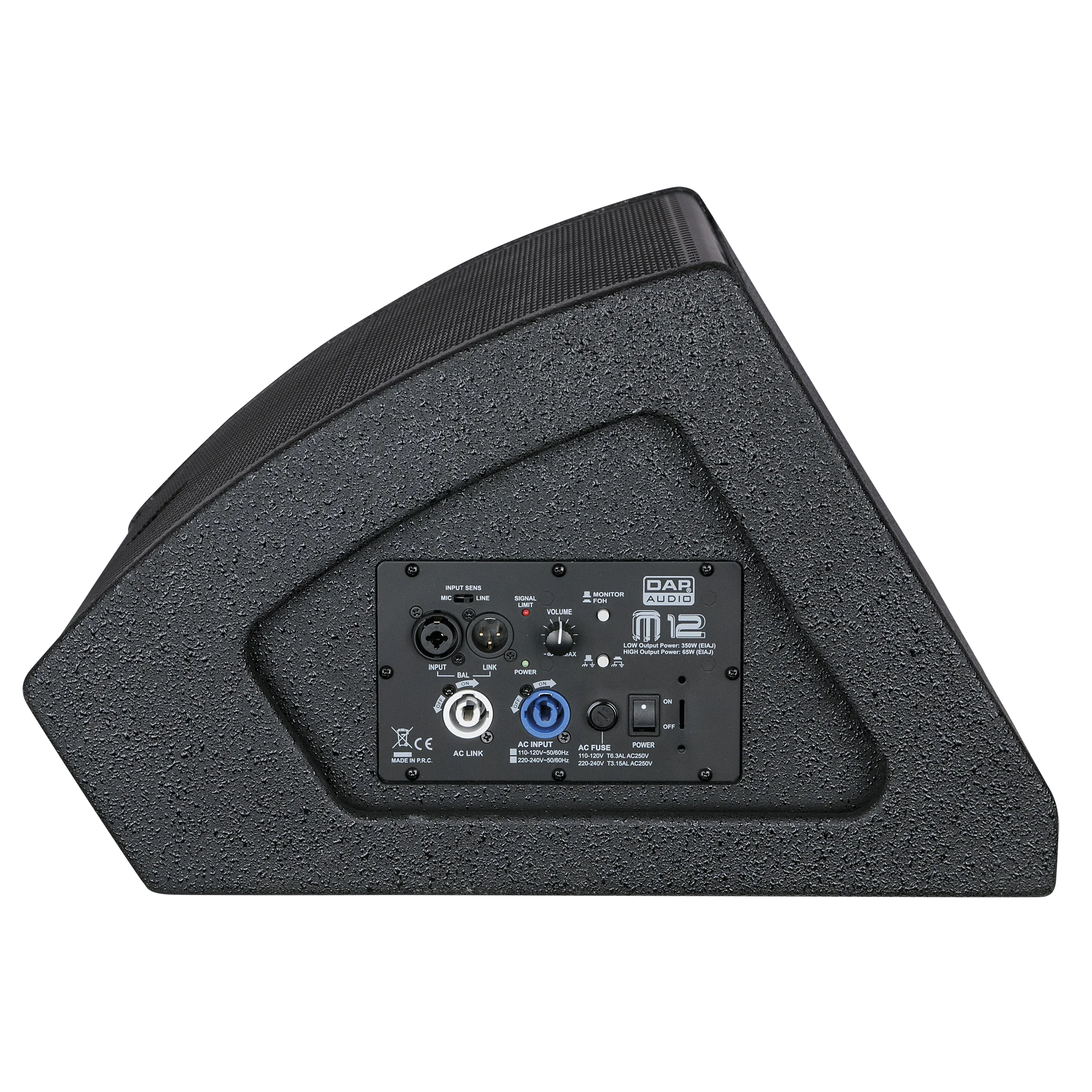

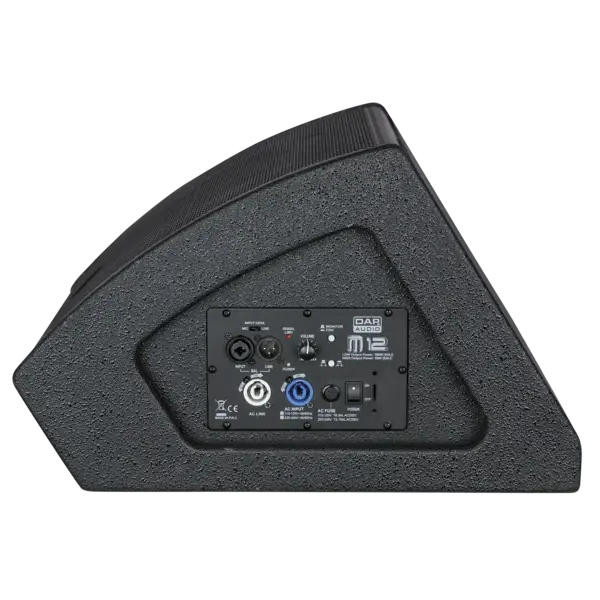

The built-in amplifier of the M12 has an XLR/Jack input connector, XLR line output connector and powerCON in and through connector. It's equipped with a volume control, EQ preset selector, ground switch and AC fuse for adjusting the sound and output level.

Integrated handles protect the recessed amplifier and connectors from getting damaged and makes it a very easy-to-handle floor monitor, even in the toughest stage environments.

Technical specifications
Low Driver Power: 350 W
High Driver Power: 65 W
Power Amplifier RMS Output: 415 W
Mono Inputs: 1
THD Level: < 0.5 %
Signal-to-noise Ratio: > 90 dB
Amp Technology: Class D
Speaker System: 2-way
Maximum SPL at 1 m: 127 dB
Frequency Response (-10 dB) Minimum: 65 Hz
Frequency Response (-10 dB) Maximum: 20000 Hz
Woofer Voice Coil Diameter: 2.5"
Compression Driver Voice Coil: 1"
Dispersion Angle (Horizontal): 70°
Dispersion Angle (Vertical): 70°
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 80 W
Power Connector In: powerCON Blue
Height (mm): 314 mm
Width (mm): 394 mm
Depth (mm): 495 mm
Material: Wood
Weight: 14.4 kg
Electronic Protection: Clip limiter (fixed) / Convection-fan / DC voltage / Thermal
