DAP | D3720 | Pure-15A | Active 15" full-range speaker
Artikelcode
D3720
Login for prices
In stock delivery time 2 to 3 working days
In stock at the supplier, average delivery time is 2 to 3 working days.
Need help or advice? Our team is happy to assist you!
DAP | D3720 | Pure-15A | Active 15" full-range speaker

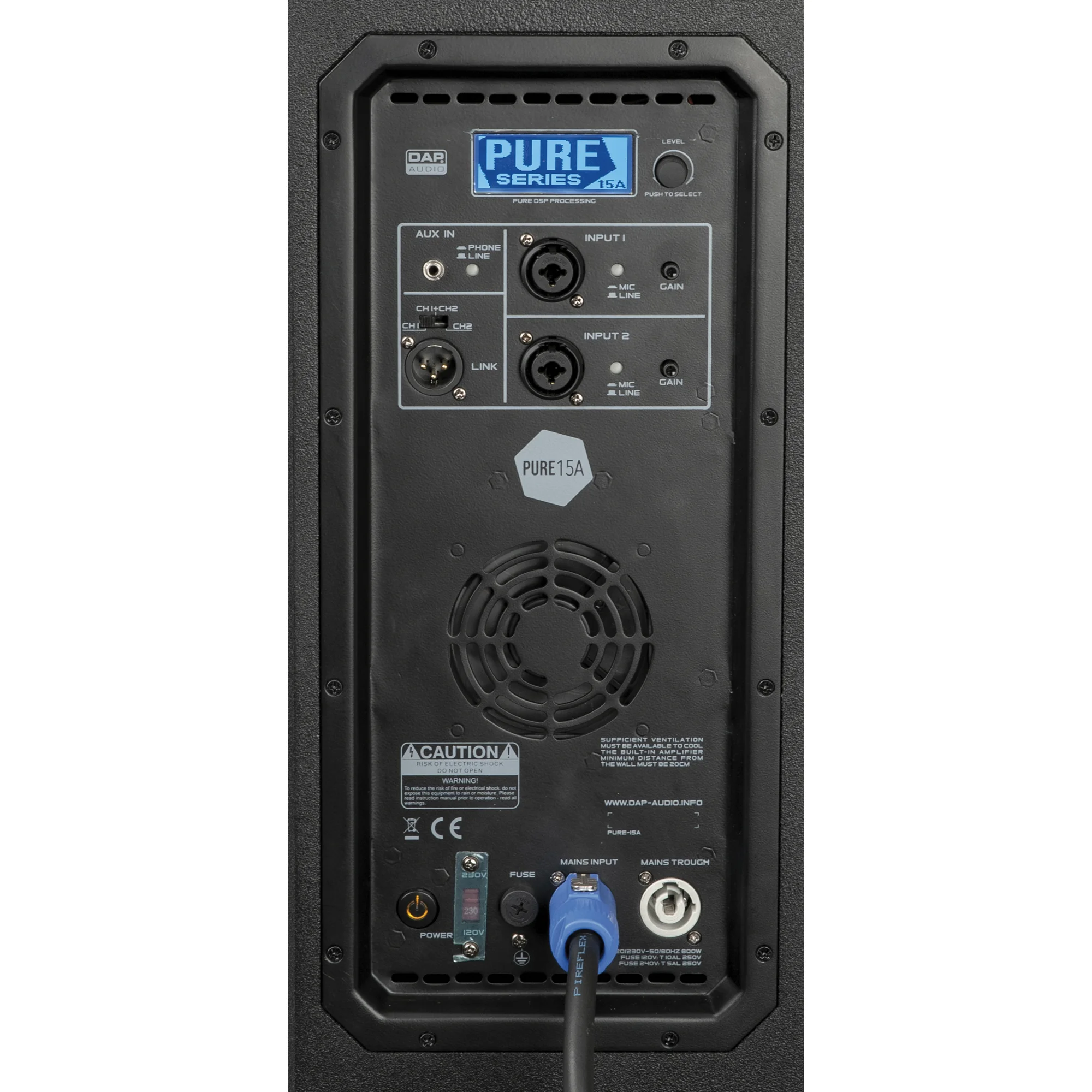

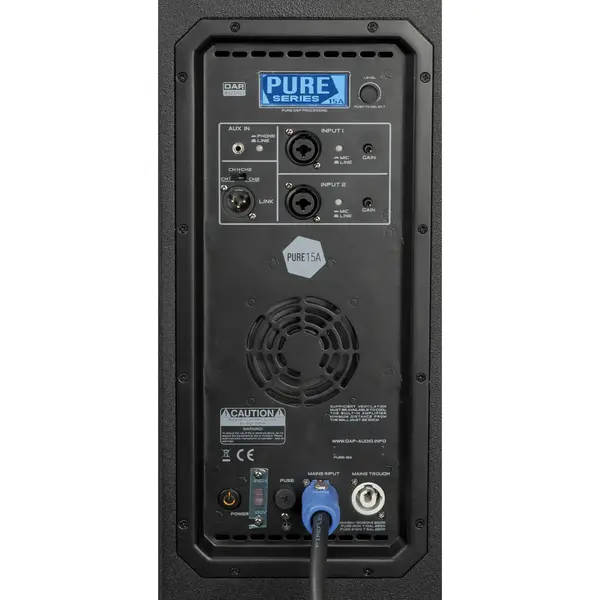

The DAP Pure Series produces the most Pure sound in its class. A bi-active lightweight speaker range consisting of a 10”, 12” and 15” full range speaker and a dedicated 18” active subwoofer. With these powerful cabinets you have the right tool for mobile and live sound, applicable for bands, DJs, presentations and more. The on-board Class-D bi-amp amplification offers pure power and keeps these cabinets lightweight and easy to handle. Each unit is equipped with a sophisticated 24bit, 96Khz DSP Processor giving the user the opportunity to select various presets and still be able to tune, store and recall your own sound settings. Tools like running hours, editable company name and delay settings, all lockable make the Pure Series ideal for rental as well. It offers two combined line microphone inputs with a link output which can be set to channel 1, channel 2 or a mix of both. The advanced protection system including thermal, overload protection and a custom compressor limiter will make sure that Pure keeps delivering on any event.

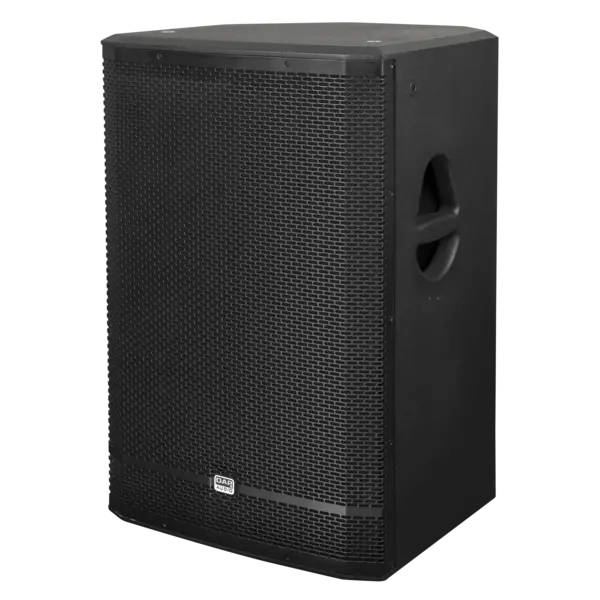

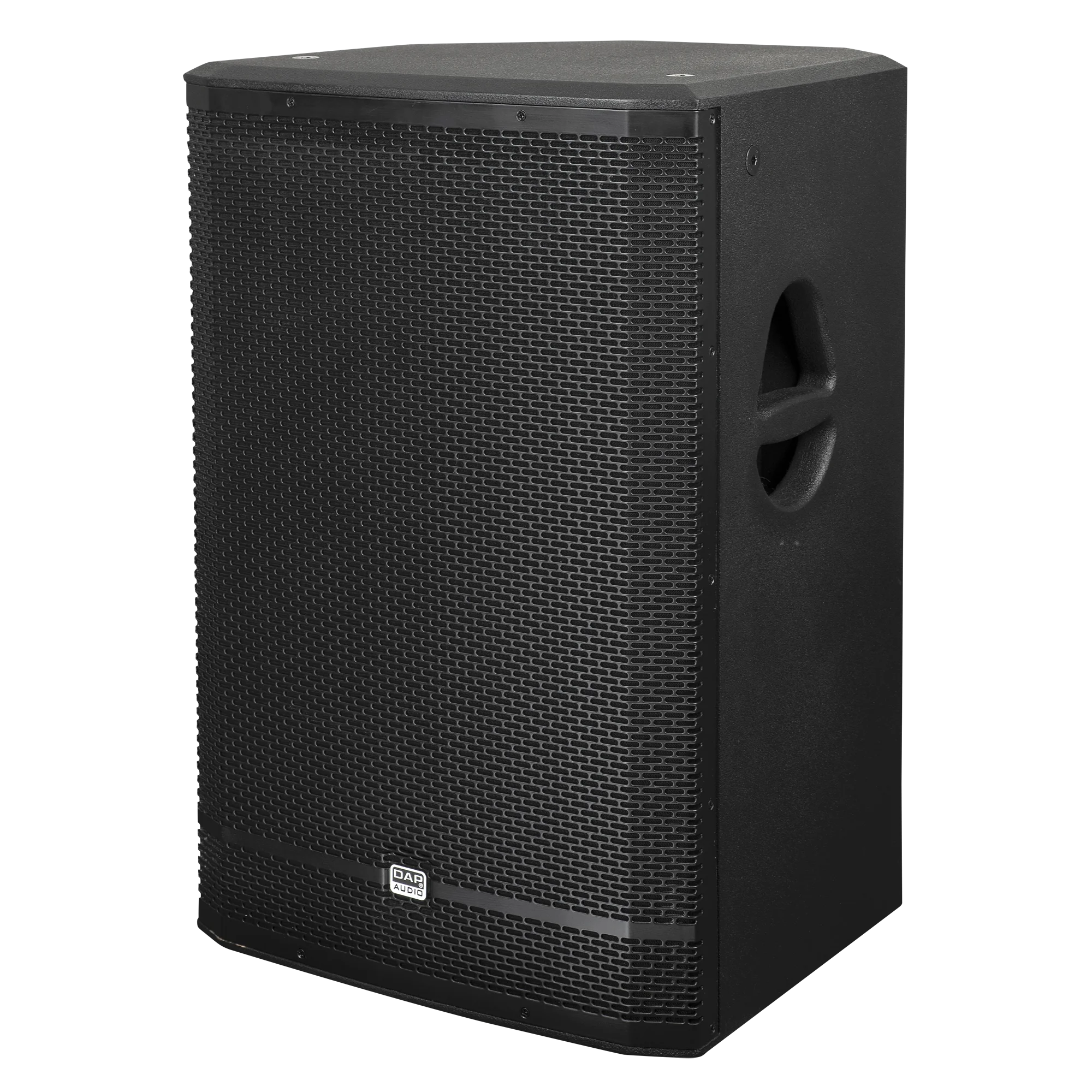

The DAP Pure-15A is a versatile active full-range speaker with a 15-inch woofer and a peak power of 600 watt. It is a multi-purpose solution since you can use it as full-range speaker, top speaker cabinet or even as floor monitor. Depending on the application, you can select DSP presets due to its 24-bit DSP processor. Presets are available for music, live, voice, DJ and monitor. You can also adjust each setting such as EQ, delay, limit and phase freely by using the LCD-display in combination with the turn-push button.

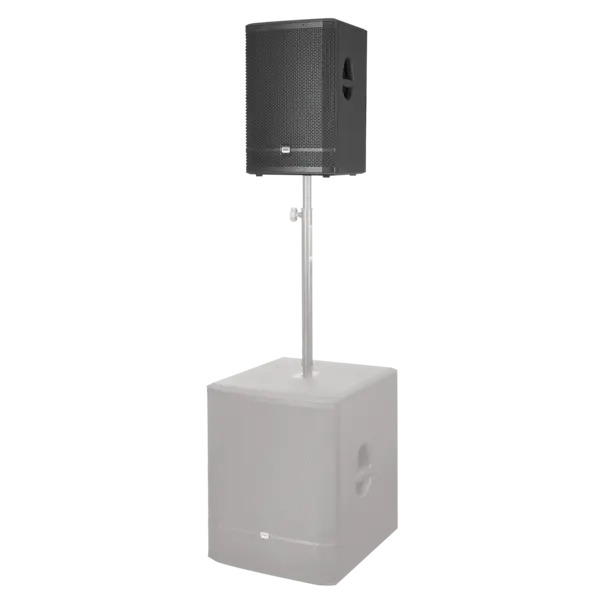

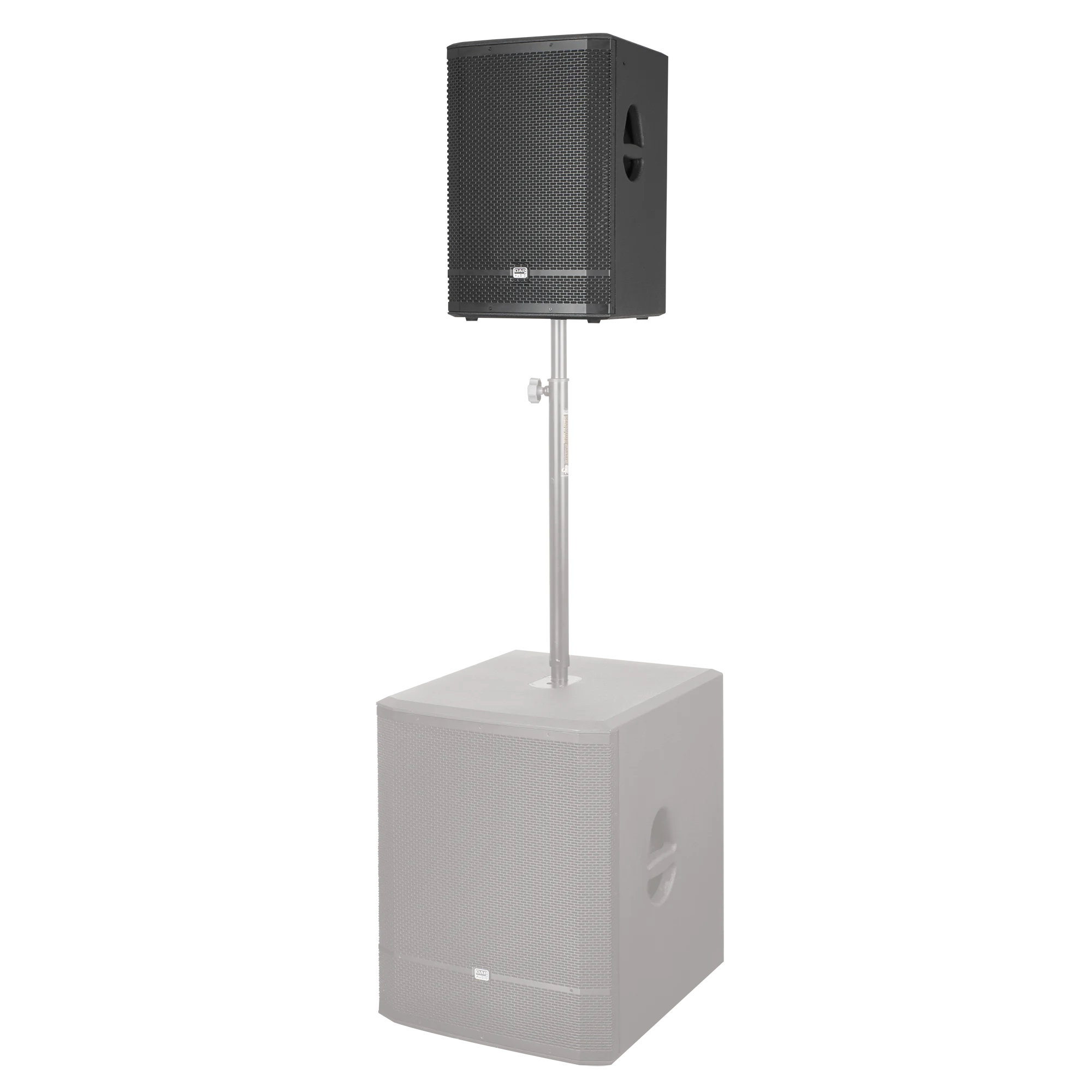

The Pure-15A can deliver an impressive 128 dB SPL at 1 meter. You can use it in combination with the Pure-18S for adding a pure and deep bass sound. This bass will most definitely work to get your party started.
Equipped with a sturdy design, this speaker is suitable for touring and other on-the-road applications. They can be placed on optional Mammoth stands (35 mm pole mount) or it can be flying by using M8 hanging eyes. A Power Pro cable is included and a transport cover is optional.
Technical specifications Low Driver Power: 500 W High Driver Power: 100 W Power Amplifier RMS Output: 300 W Power Amplifier Peak Output: 1200 W Mono Inputs: 2 Auxiliary Inputs: 1 THD Level: < 0.5 % Signal-to-noise Ratio: > 105 dB Amp Technology: Class D Speaker System: 2-way Maximum SPL at 1 m: 128 dB Frequency Response (-6 dB) Minimum: 40 Hz Frequency Response (-6 dB) Maximum: 20000 Hz Crossover Frequency (High): 2100 Hz Woofer Voice Coil Diameter: 3" Compression Driver Voice Coil: 1.75" Dispersion Angle (Horizontal): 75° Dispersion Angle (Vertical): 50° User Presets: Yes User Presets Capacity: 6 Power Supply: 100-240 VAC 50-60 Hz Power Consumption: 600 W Power Connector In: Power Pro Blue Height (mm): 640 mm Width (mm): 426 mm Depth (mm): 410 mm Material: Wood Weight: 29 kg Electronic Protection: Compressor / Convection-fan / Digital limiter / Overload / Thermal
