The DAP Odin Line Array Series is a versatile sound system suitable for high-energy indoor and outdoor events for up to 2500 visitors. It is a scalable and rental-friendly solution for both stackable and suspended setups, suitable for almost any venue of any size. Odin systems have a robust design and can deliver incredible sound quality at an unprecedented low price. With DAP Odin, DJs, bands, actors and other performers can quickly and easily create deep, punchy bass, subtle instrument details and true vocal emotions.
The Odin Active Series is a collection of active line array satellites (T-8A), active line array subwoofers (S-18A and S-218A) and active full-range speakers (SF-12A and SF-15A). The DSP settings of each loudspeaker (group) in a setup can be adjusted from a laptop via a network. Up to 48 units can be connected to the CL-4 network interface. Celestion components, DSP optimisation and Class D amplifiers ensure excellent sound quality in any location and setup.
Multiple stacking and hanging solutions are available with dedicated fly bars, stack bars, pole mount adapters and fly towers. Safe transportation/storage is also ensured with dedicated flight cases, transport covers and castor boards. IP covers protect your speakers from heavy rain, making them a reliable and trustworthy companion in all conditions.

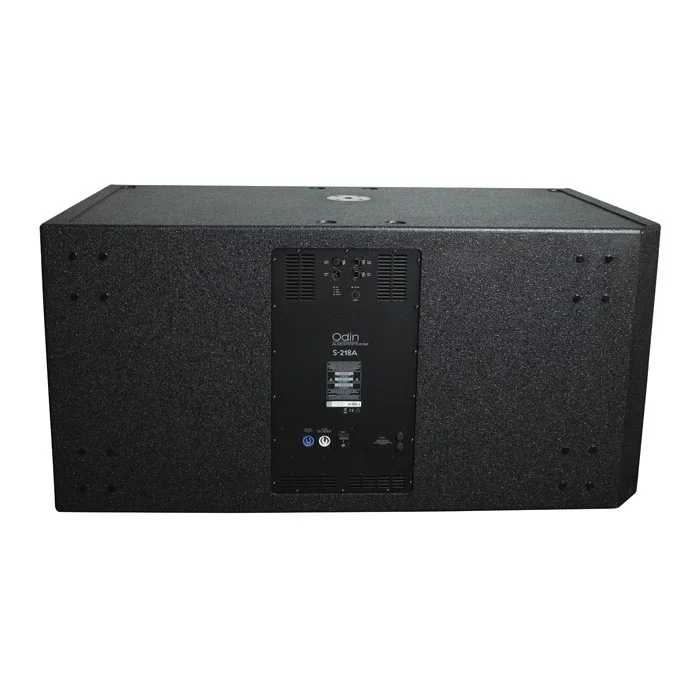

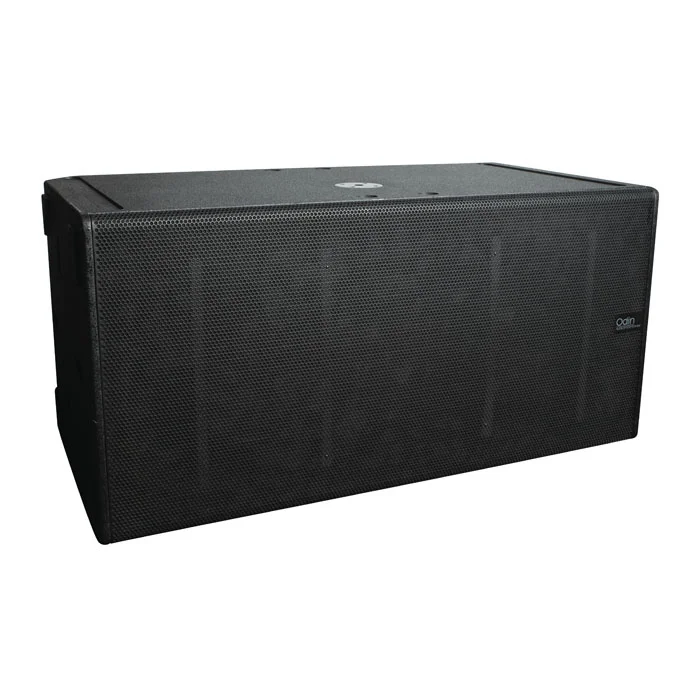

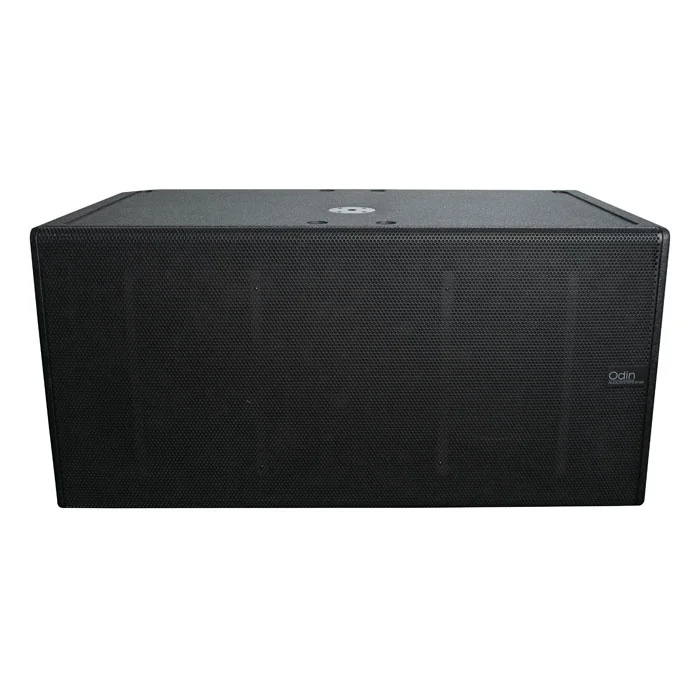

The DAP Odin S-218A is an extra bold, heavy weight Ultra Subwoofer suitable for medium to big crowds. It produces an awesome wall of sound with a frequency response as low as 28 Hz for an extremely low bass. The internal high-power 4 kW Class D amplifier has a peak output power of 10,000 watts. The subwoofer is intended to be used in combination with T-8(A) Line Array Satellites for a super punchy full-range sound.
The Odin S-218A is equipped with two 18" Celestion Ferrite Magnet subwoofers containing 5" voice coils producing up to a staggering 141 dB SPL at 1 meter distance. The DSP settings are configurable to make sure that the S-218A delivers under any circumstance and in any setup.
Several DSP presets are available, including preset for “Cardioid” and “End Fire” mode. A great addition to the T-8(A) Satellite and S-18(A) Subwoofer to literally bring more punch and depth to your live shows.
With the Odin Active loudspeakers, the free Odin Editor software, in combination with the CL-4 Connect, allows you to freely adjust the EQ, gain and delay per speaker or per group of speakers from a Windows PC/laptop. It also allows you to monitor live information from each speaker, such as amplifier temperature and high/low output. In addition, EASE Focus 3 software can be used to calculate the splay angle and "Throw". A plug-in has been developed for adding our speakers to its database.
Please note that powerCON and network cables are not included but are to be ordered separately.
Technical specifications Low Driver Power: 1600 W Power Amplifier RMS Output: 4000 W Power Amplifier Peak Output: 10000 W Mono Inputs: 1 THD Level: < 0.5 % Signal-to-noise Ratio: > 90 dB Amp Technology: Class D Speaker System: Subwoofer Maximum SPL at 1 m: 141 dB Frequency Response (-6 dB) Minimum: 28 Hz Frequency Response (-6 dB) Maximum: 110 Hz Crossover Frequency (High): 90 Hz Woofer Voice Coil Diameter: 5" User Presets: Yes User Presets Capacity: 10 Power Supply: 100-240 VAC 50-60 Hz Power Consumption: 3100 W Power Connector In: powerCON Blue Data Connector In: etherCON Height (mm): 665 mm Width (mm): 1400 mm Depth (mm): 635 mm Material: Plywood Weight: 115.5 kg Electronic Protection: Convection-fan / Digital limiter / Overload / Thermal
