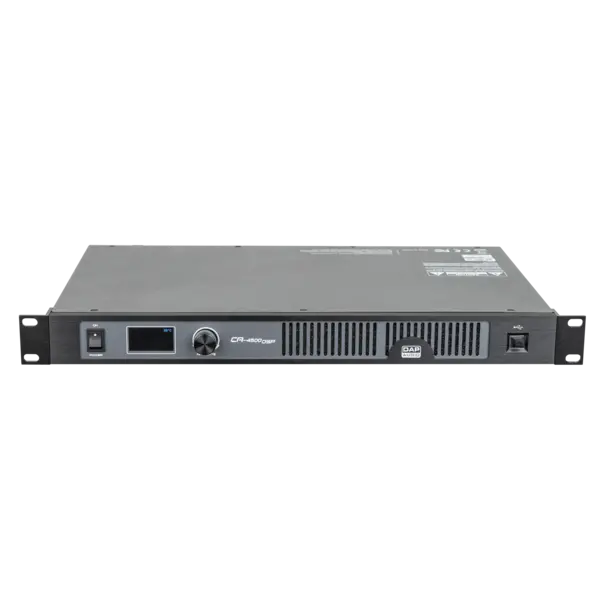

DAP | D4515 | CA-4500 DSP | Compact 4-channel amplifier (4x 500 W) - DSP driven

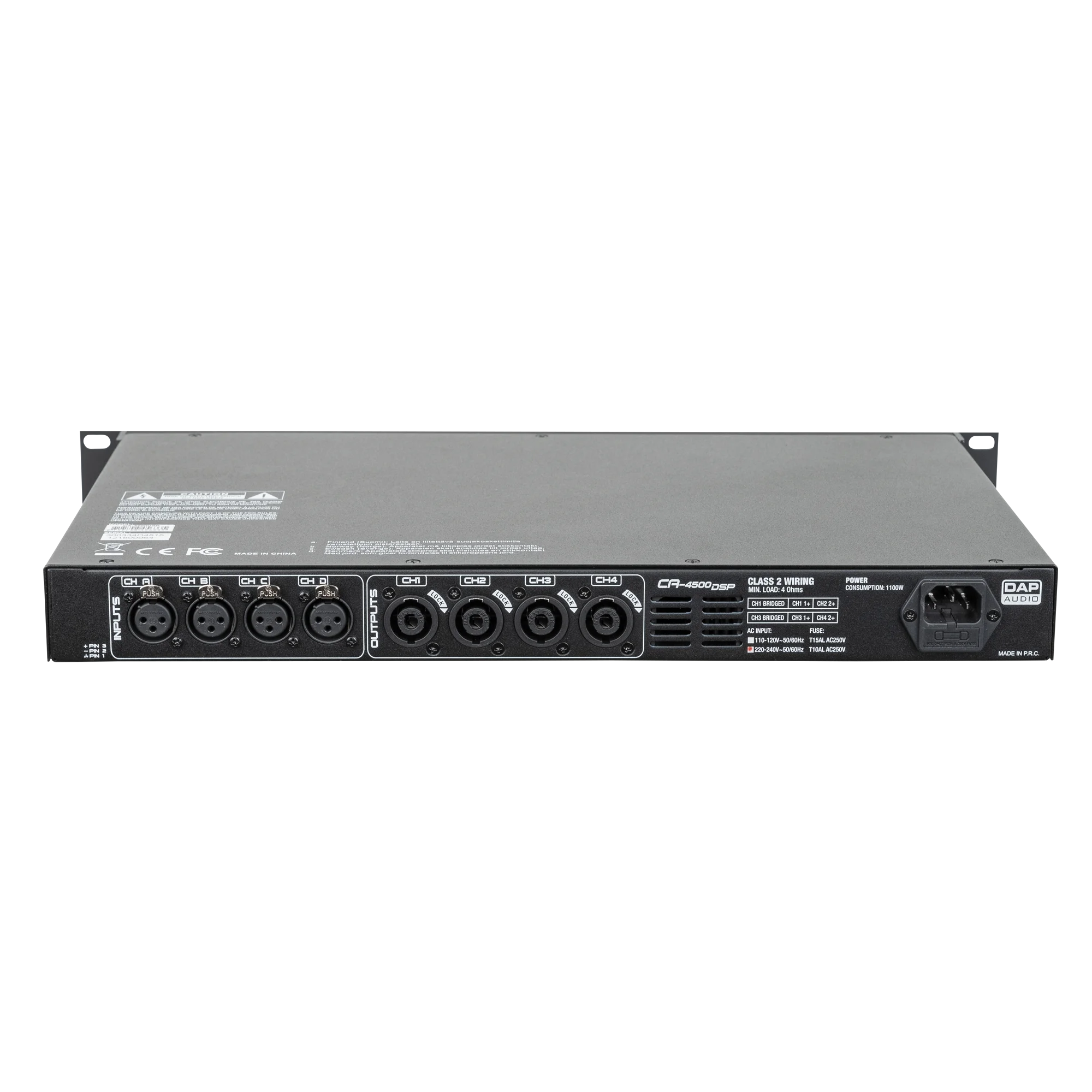

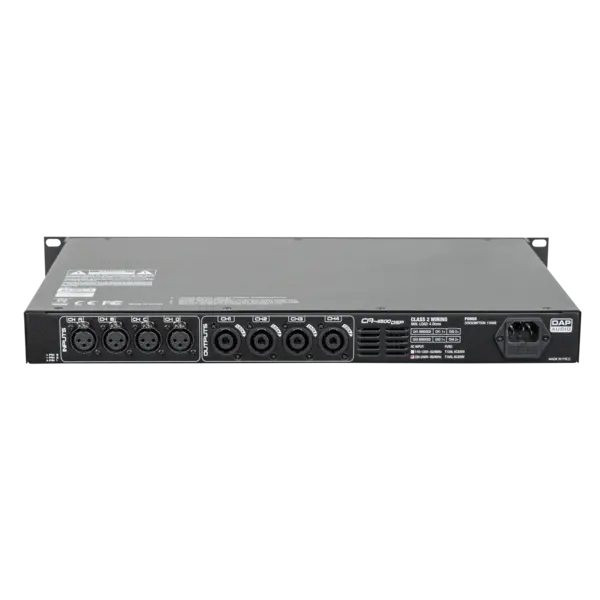

The DAP CA-4500 DSP is a high power digital 4-channel amplifier with 500 W in 4 Ohm and four 500 watt speakON outputs. It can drive a 70/100 V speaker system and can deliver two channels of 1000 watt each in bridge mode. This amplifier is especially suitable for the installation market.

The CA-4500 includes a powerful DSP. All parameters, such as 8-band EQ settings, delay, compression, noise gate and more, are configurable manually or via included software on any Windows PC/laptop. Besides, all four inputs and output channels are freely routable.

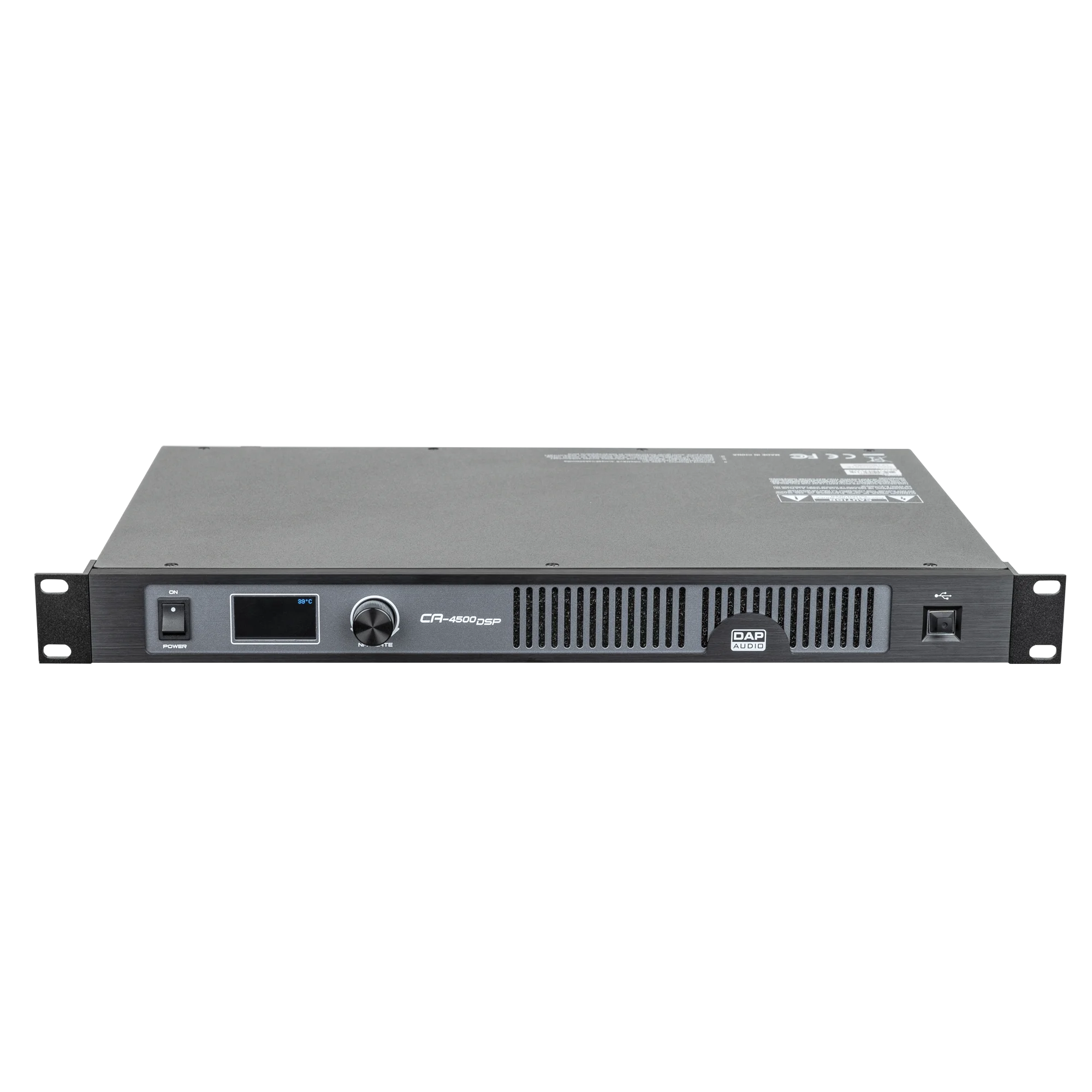

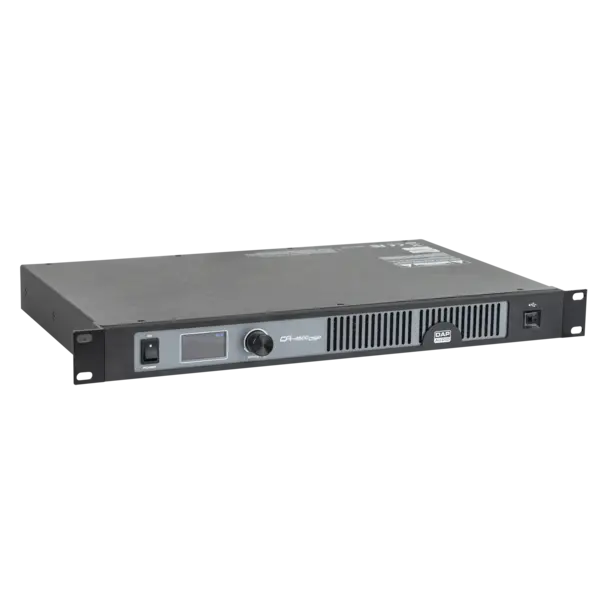

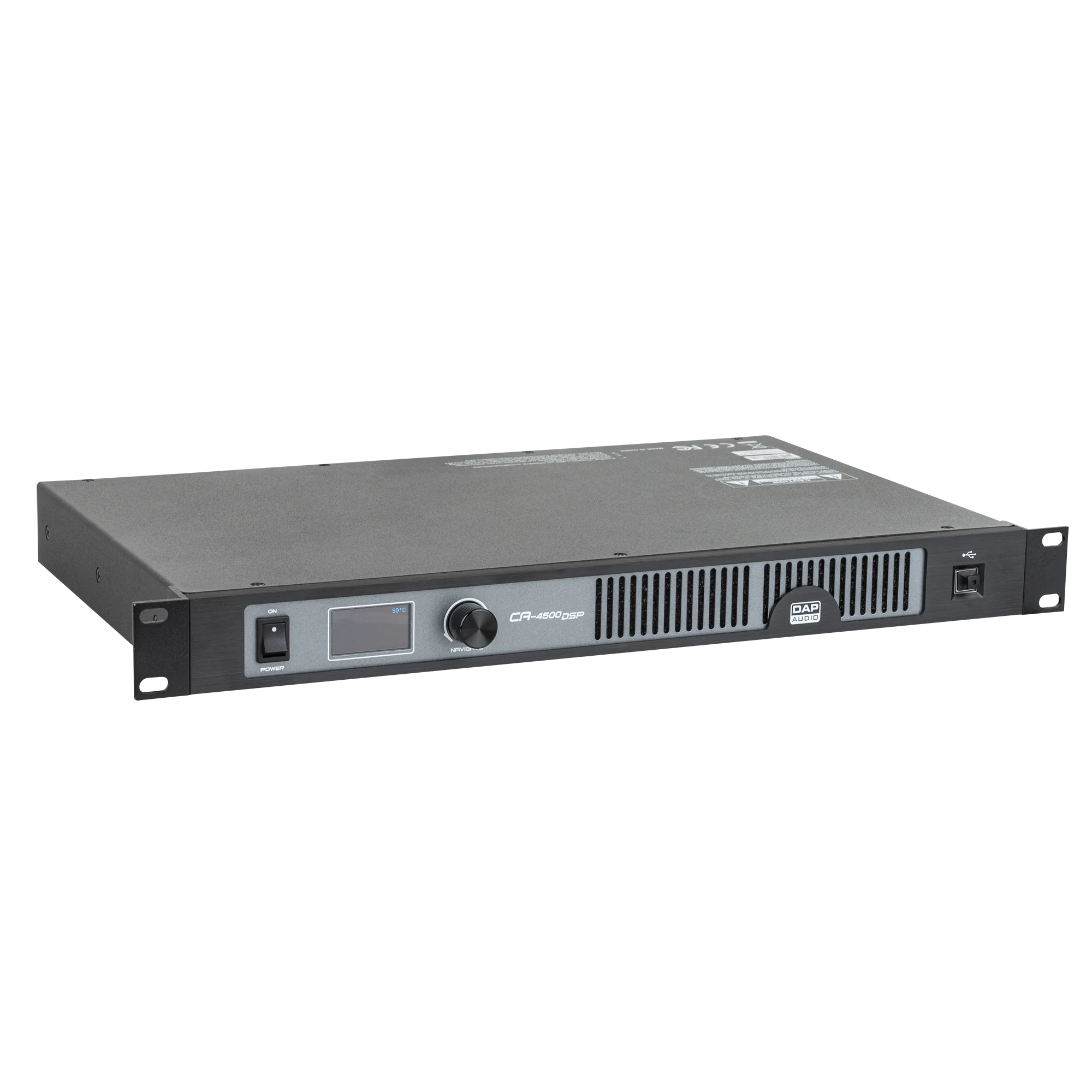

This amplifier not only has many functionalities but is also safe to use thanks to advanced protection circuits, such as soft start technology and a clip limiter. All of this fits in a compact 19-inch design with a 1 unit height.

Technical specifications
2 ohms Stable: No
Output per Channel into 8 ohms at 1 kHz: 250 W
Output per Channel into 4 ohms at 1 kHz: 500 W
Bridge Output into 8 ohms at 1 kHz: 1000 W
Output Channels: 4
Output Mode: 4-channel / Bridge / Mono / Stereo
Output Connector: Speaker Connector 4 pole
Mono Input Connector: 3-pin XLR
THD Level: < 0.15 %
Signal-to-noise Ratio: > 96 dB
Slew Rate: 25 V/μs
Amp Technology: Class D
Damping Factor: 180 :1
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Parametric Input Equalizer: 8 Bands
Parametric Output Equalizer: 8 Bands
Crossover Filter Types: Bessel / Butterworth / Linkwitz Riley
Power Supply: 220V-240 VAC 50 Hz
Power Consumption: 1741 W
Height (mm): 44 mm
Width (mm): 483 mm
Length (mm): 285 mm
Rack Units: 1 U
Weight: 5.9 kg
Electronic Protection: Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal
