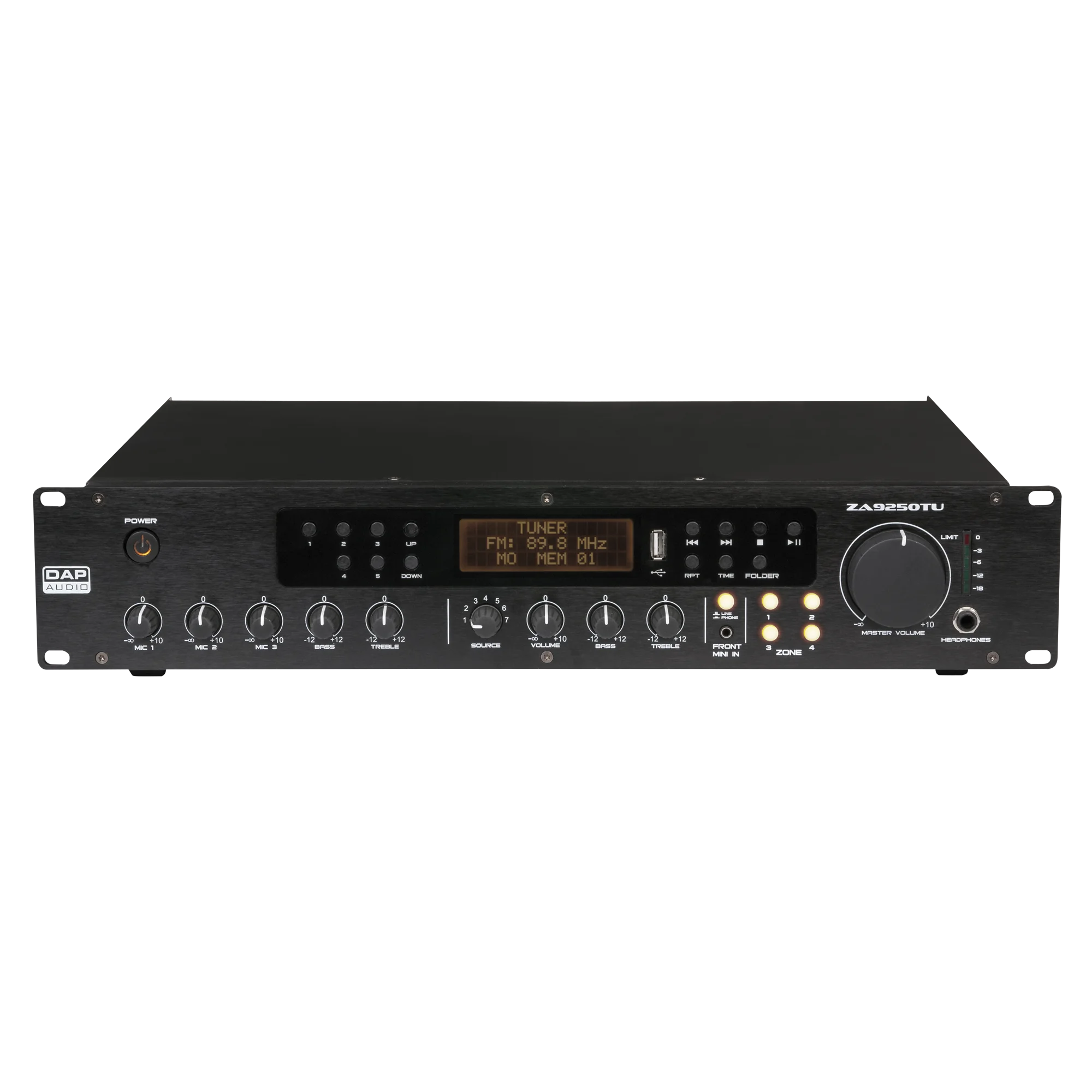

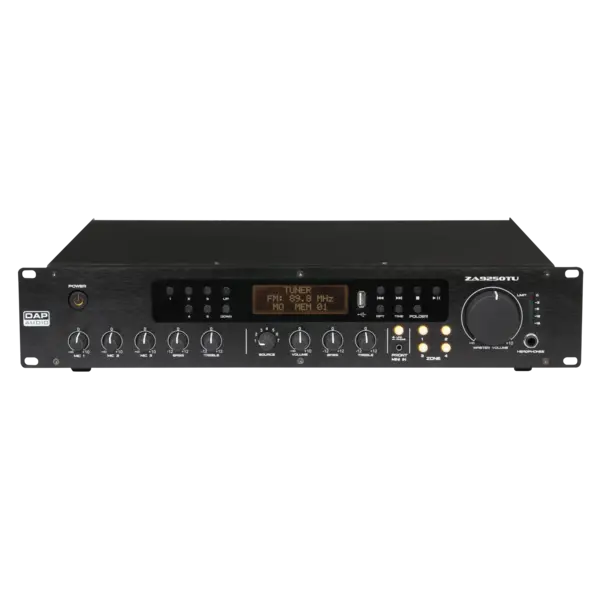

DAP | D6154 | ZA-9250TU | 250 W 100 V 4-Zone Mixer Amplifier

The DAP ZA-9250TU is a 250-watt 100 V 4-zone mixer amplifier and media player. It is equipped with 3 microphone/line inputs with +48 V phantom power and you have a choice of 7 audio sources, including a built-in USB player and FM tuner from which you can store up to 10 radio stations.

The ZA-9250TU has several functions. For example, it has a special input for emergency announcements (such as a fire alarm) that will override all other inputs. It is also equipped with an adjustable chime function, ducking level control, loop-through connection and a line output that can be used as a line output, for music only or microphones only. Besides, each zone also has its own line outputs for being able to connect extra amplifiers, allowing you to extend the PA system if needed.

This 100 V zone mixer amplifier is designed to support a PA system intended for intercommunication or background music in public and business areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. It has an integrated protection circuit to protect against overload and short circuit of the output. This results in very high reliability and easy installations without the need for additional audio processors.

Technical specifications
Power Amplifier RMS Output: 250 W
Output Channels: 4
Output Mode: Parallel
Output Connector: Terminal
Main Outputs: 1
Main Output Connector: RCA
Zone Outputs: 4
Zone Output Connector: Terminal / RCA
Mono Inputs: 3
Mono Input Connector: 3-pin XLR / Terminal / TS unbalanced 6.3 mm
Stereo Inputs: 3
Stereo Input Connector: RCA / TRS balanced 3.5 mm
Auxiliary Inputs: 1
Auxiliary Input Connector: RCA
Transformer: 100 V
Supported Audio Files: MP3 / WAV
Media Input/Output: USB-A
Phantom Power: 18 V
Parametric Channel Equalizer: 2 Bands
Parametric Microphone Equalizer: 2 Bands
Speech Filter Attenuation: 3 dB
Speech Filter Frequency: 300 Hz
FM Frequency Start: 87.5 MHz
FM Frequency End: 108 MHz
Power Supply: 240 VAC 50-60 Hz
Backup Power Supply: 24 VDC
Power Consumption: 500 W
Power Connector In: IEC
Data Connector In: USB
Height (mm): 88 mm
Width (mm): 483 mm
Depth (mm): 328 mm
Rack Units: 2 U
Weight: 12 kg
PTT: Yes
Chime: Yes
Telephone Input: Yes
Electronic Protection: Overload / Short circuit
