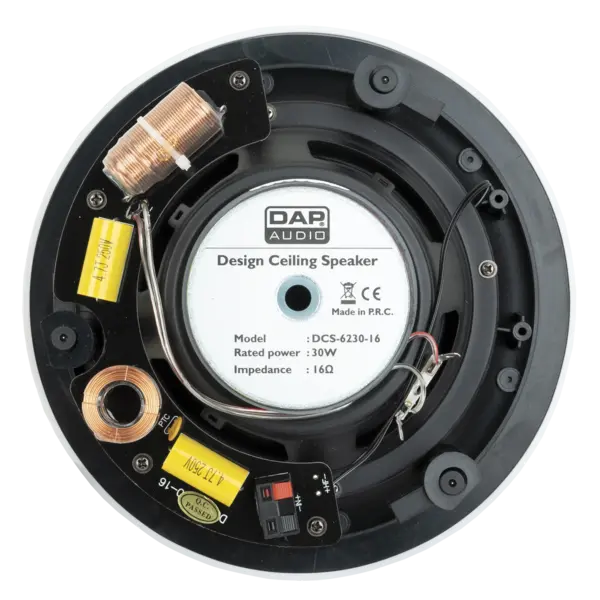

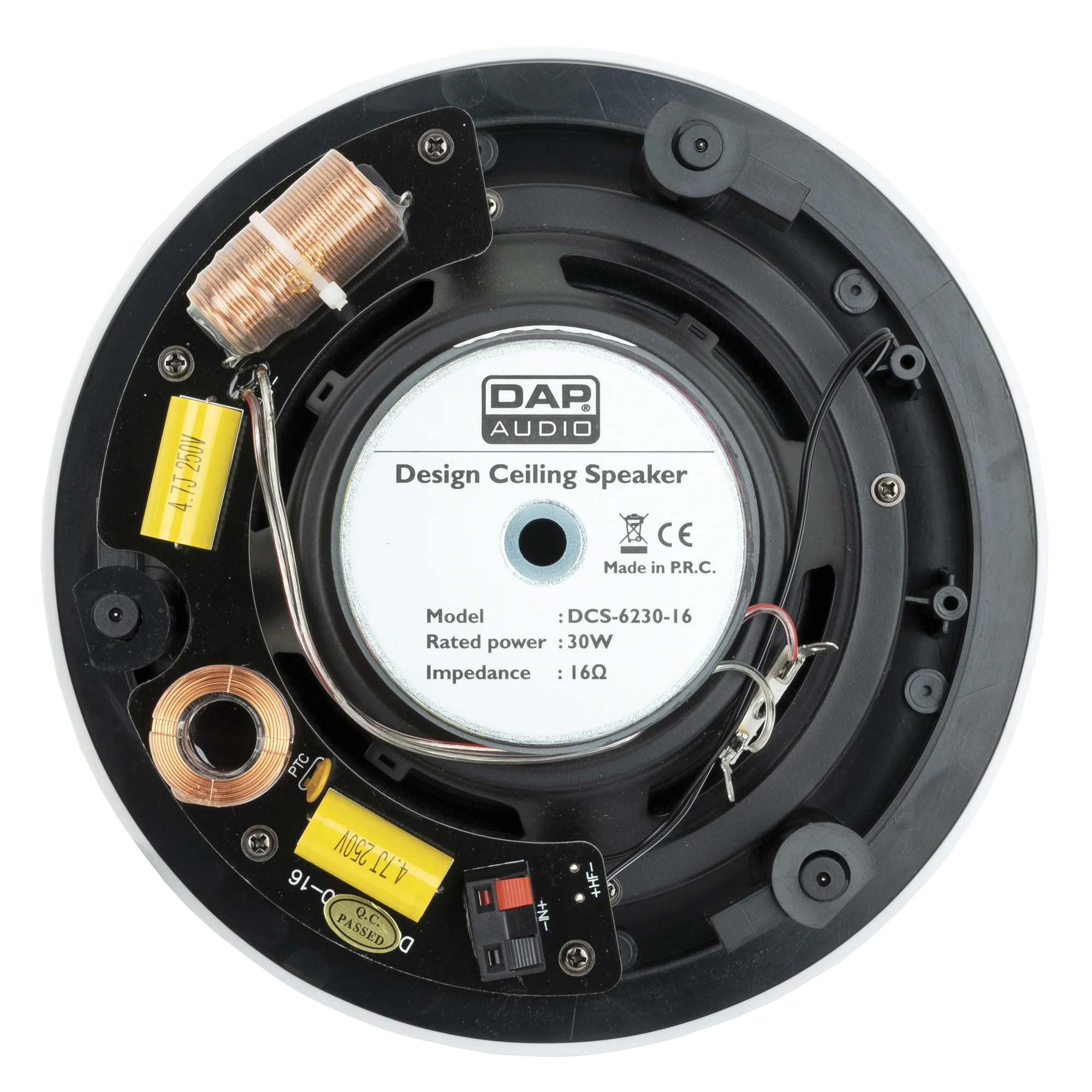

DAP | DCS-16 | Passive Ceiling Speaker | Colour: White

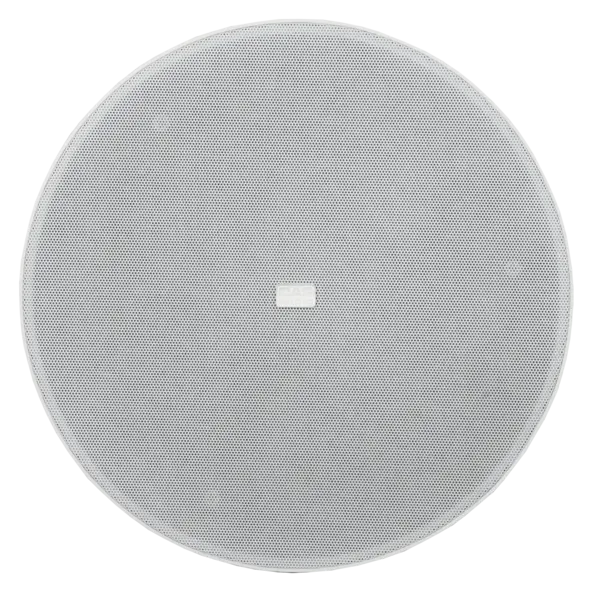

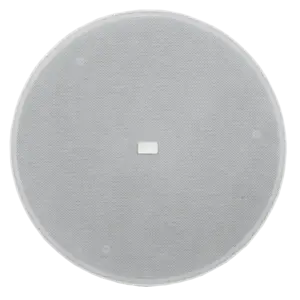

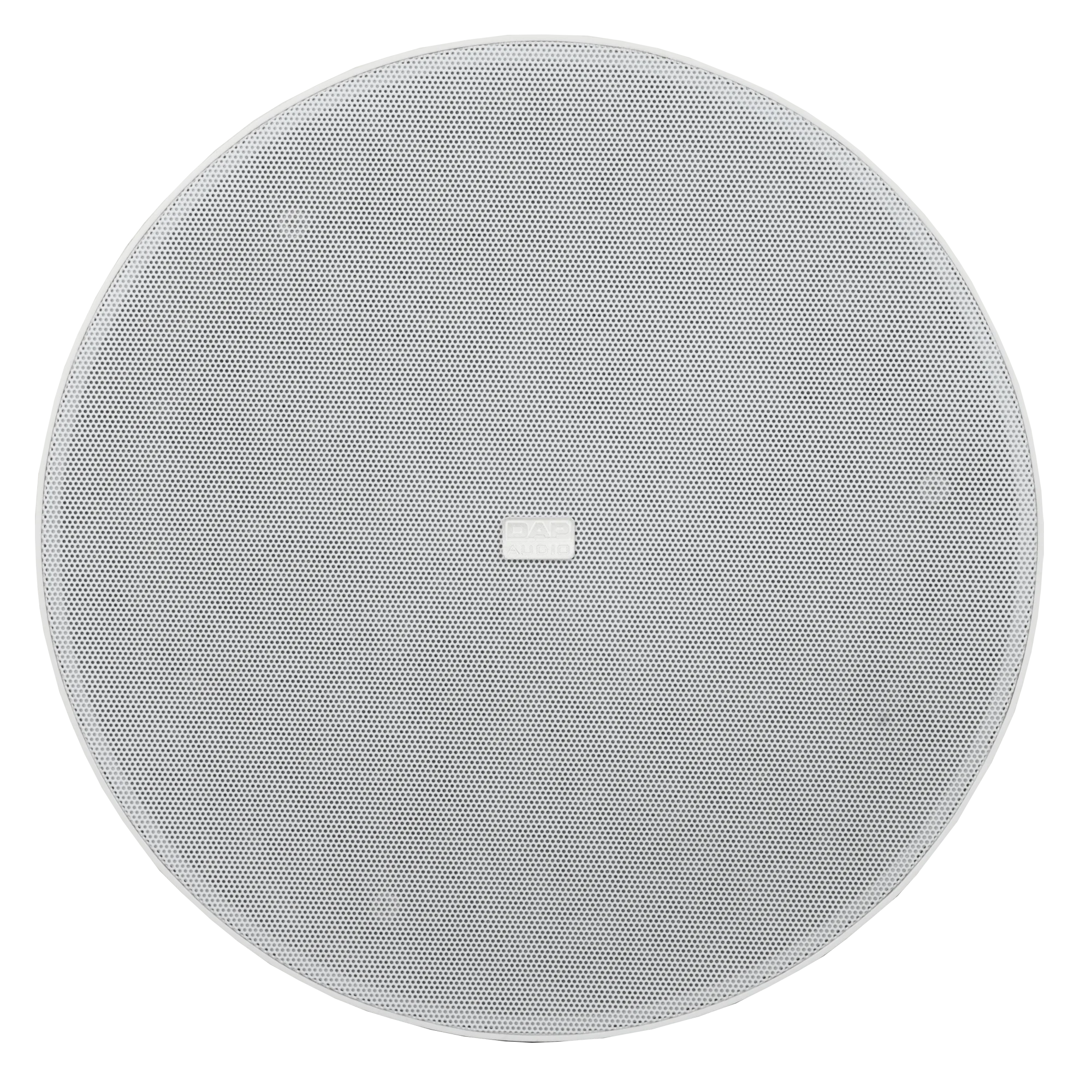

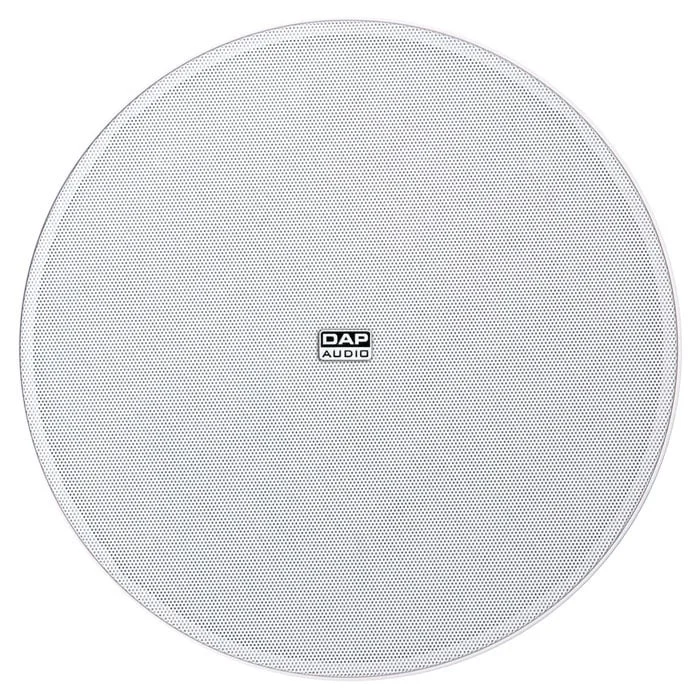

The DAP DCS-16 is a passive 6- or 8-inch design ceiling speaker with an impedance of 16 ohms. This white recessed ceiling speaker is designed with almost no edge around the grille and the depth of the grille is also very limited. This makes this recessed speaker almost invisible after mounting.

The DCS-6240-16 is a 2-way system with a high peak power of 60 W (30 W RMS). Besides a 6" low driver, it is also equipped with a 0.75" Neodymium high driver for clear full-range sound.

Technical specifications
RMS input power: 30 W
Peak input power: 60 W
Passive input connector: Terminal
Speaker system: 2-way
Speaker sensitivity (1W/1m): 86 dB
Speaker impedance: 16 Ω
Max. SPL/m: 101 dB
Minimum frequency response: 46 Hz
Maximum frequency response: 19000 Hz
Low driver diameter: 6"
Low driver voice coil: 1"
High driver diameter: 0.75"
High driver voice coil: 0.5"
Horizontal radiation: 80°
Radiation vertical: 80°
Height (mm): 102 mm
Width (mm): 237 mm
Length (mm): 237 mm
Installation depth (excl. connector): 98 mm
Material: Plastic
Colour: White
Weight: 1.5 kg
IP value: IP40
