DAP | EVO 5 | Passive 5" speaker set

The DAP Evo range offers solid 4" to 8" wall-mounted speaker sets with multi-angle brackets that are easy to install and adjust, suitable for background music in public places, businesses and theme parks. They are available in three versions: active indoor, passive outdoor and 100 V outdoor sets. The speakers have different mounting options for both horizontal and vertical placement and are available in black and white versions. This makes them suitable for any environment.

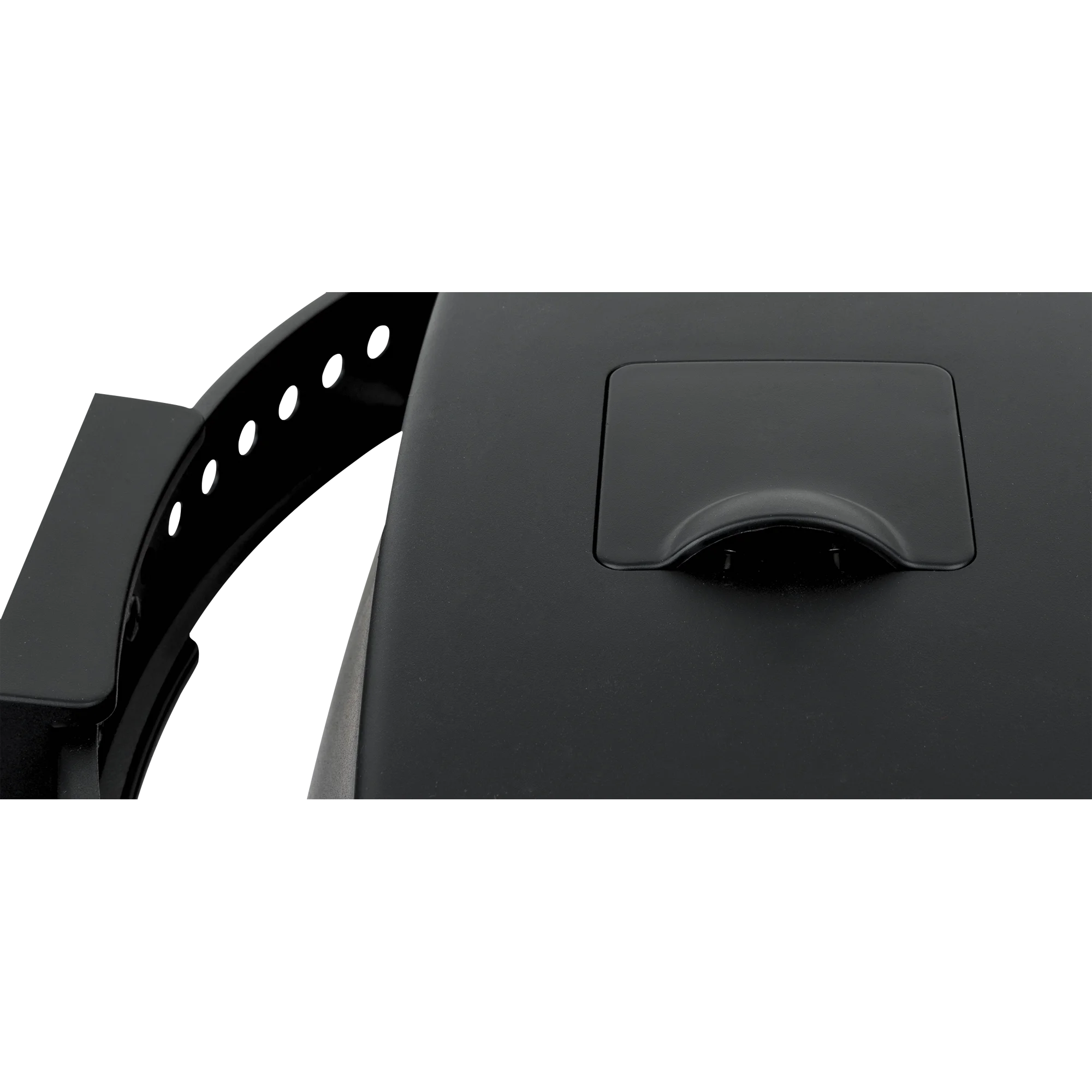

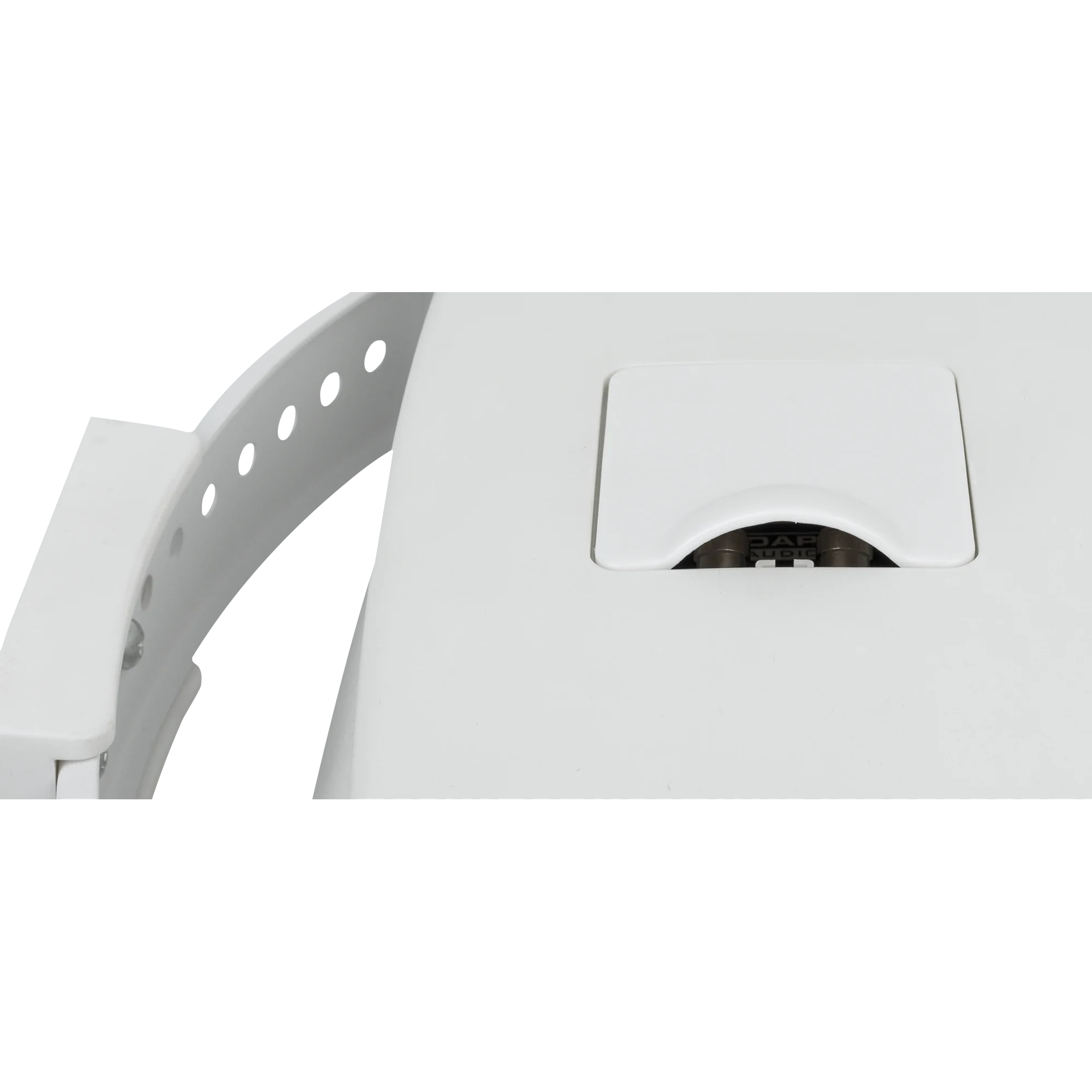

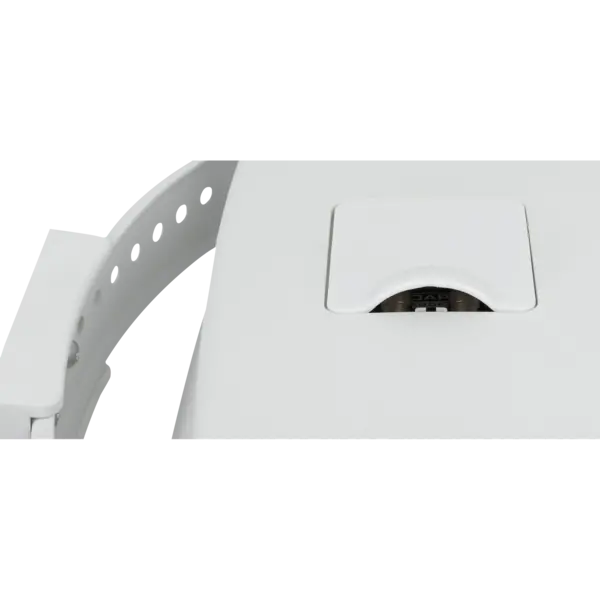

The active Evo speakers feature a built-in Class-D amplifier with 2-band equaliser and volume control. The RCA and balanced green terminal inputs allow quick and cost-effective installation. The passive Evo speakers are suitable for outdoor installations. In fact, they have an IP54 rating and are equipped with a cap to protect the connectors from heavy rain. The 100 volt Evo speakers are also IP54 rated and are suitable for both 70 and 100 volt installations with 5 power taps and low impedance.

Interested in our DAP Evo range? Then contact us now for free advice and receive an offer you can't refuse or check out our product pages for more information.

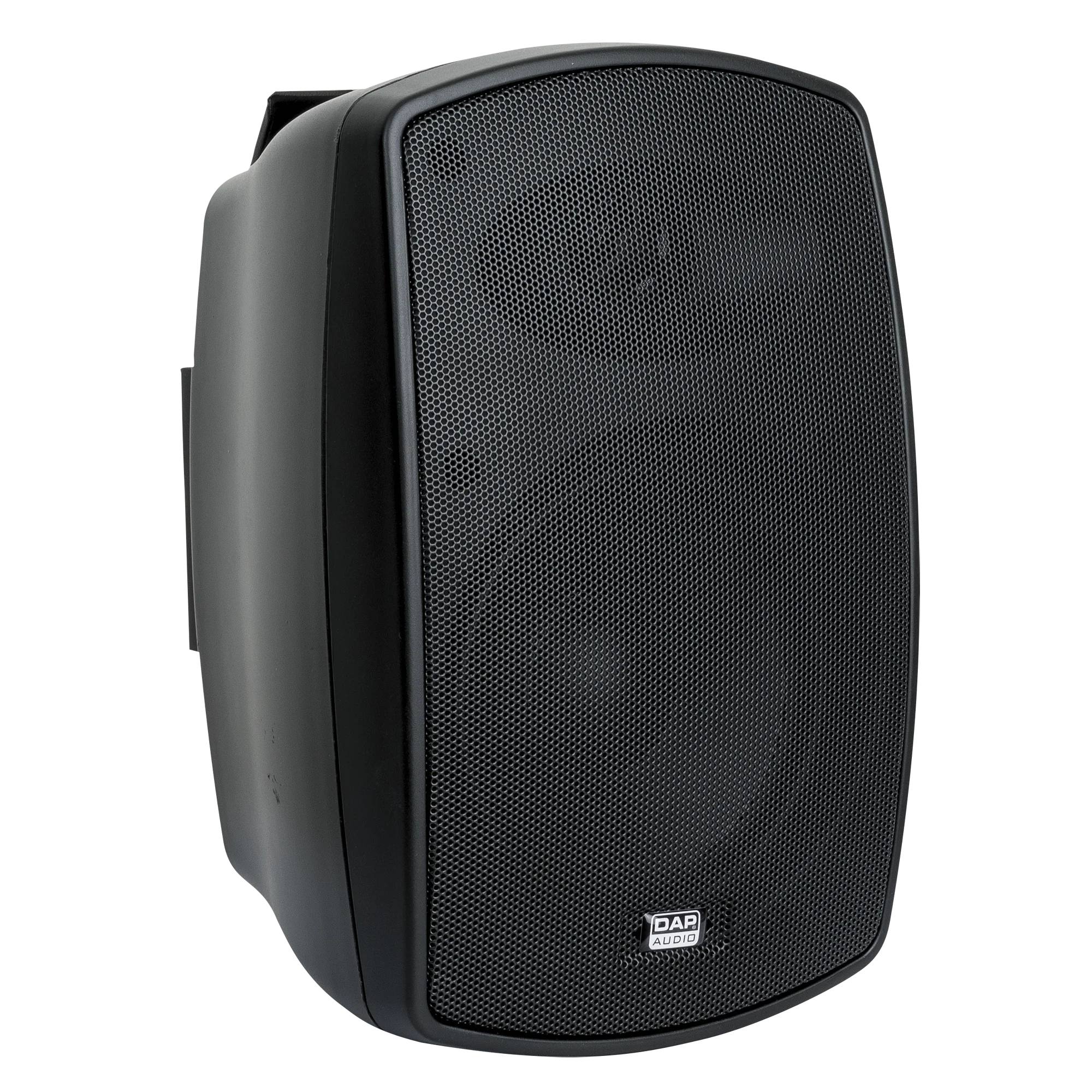

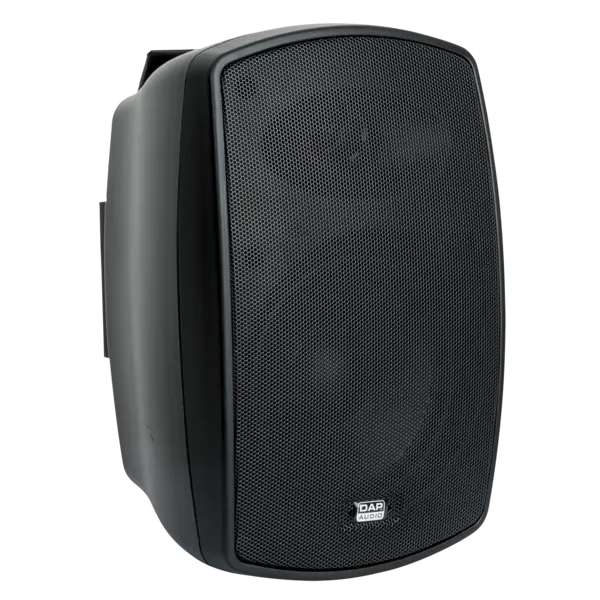

The DAP EVO 5 is a set of two 5-inch passive installation speakers for producing excellent sound quality up to 113 dB at one metre distance. With a peak power of 120 watts each, these 2-way Hi-Fi speakers have a high load capacity. It is therefore a perfect full-range audio solution for many venues such as restaurants, shops and even clubs.

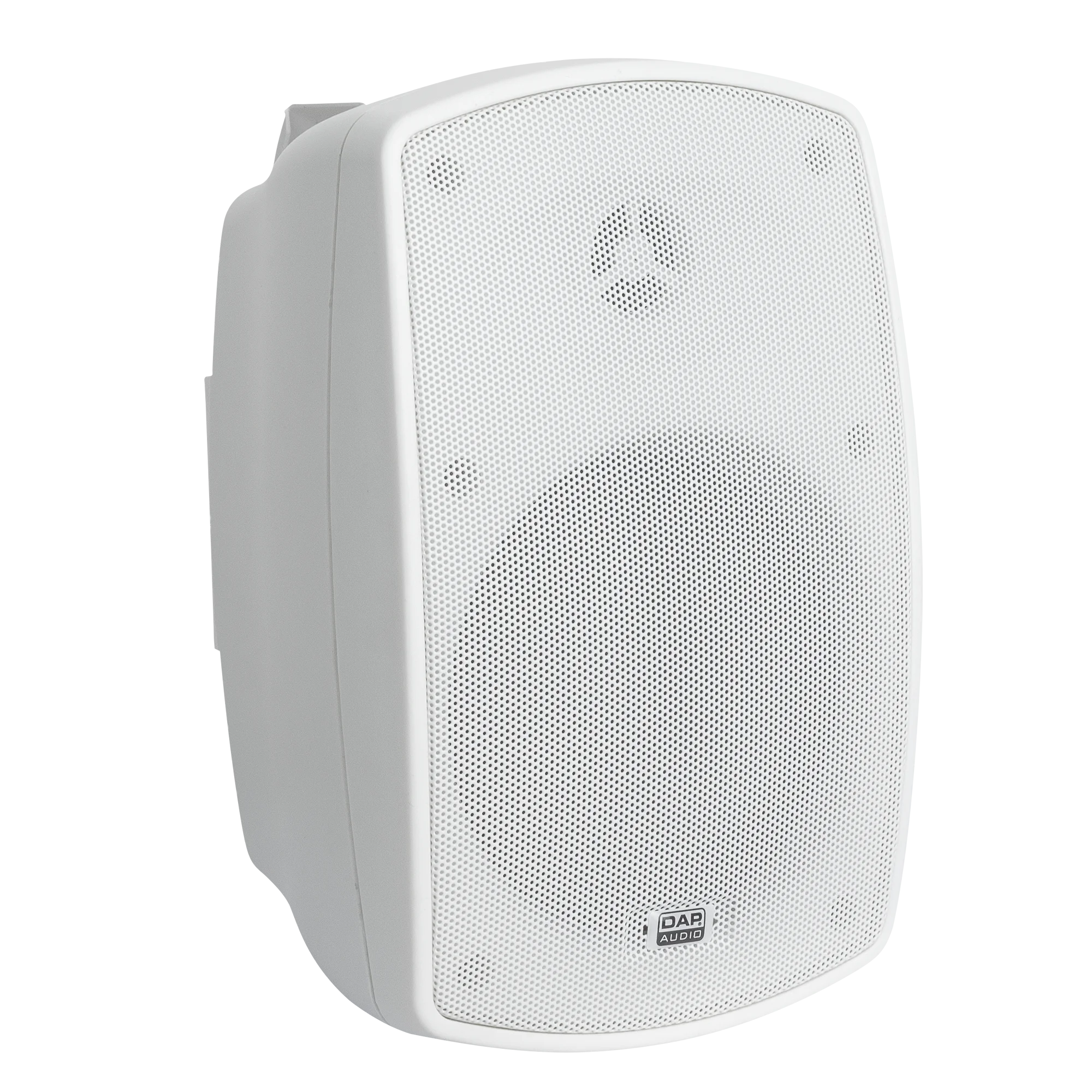

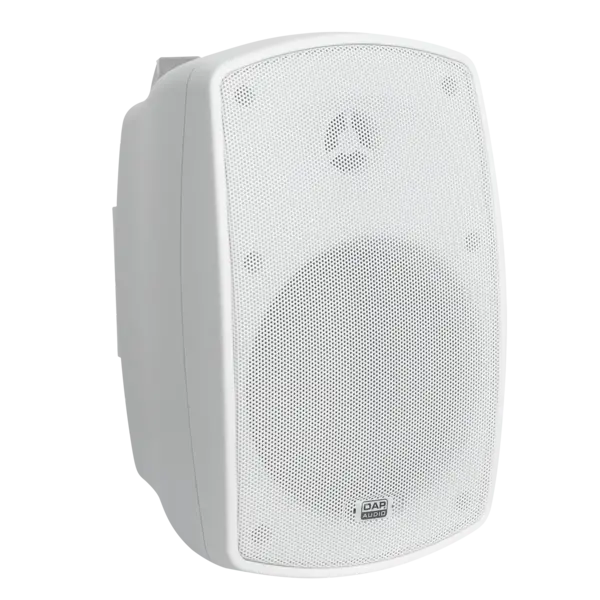

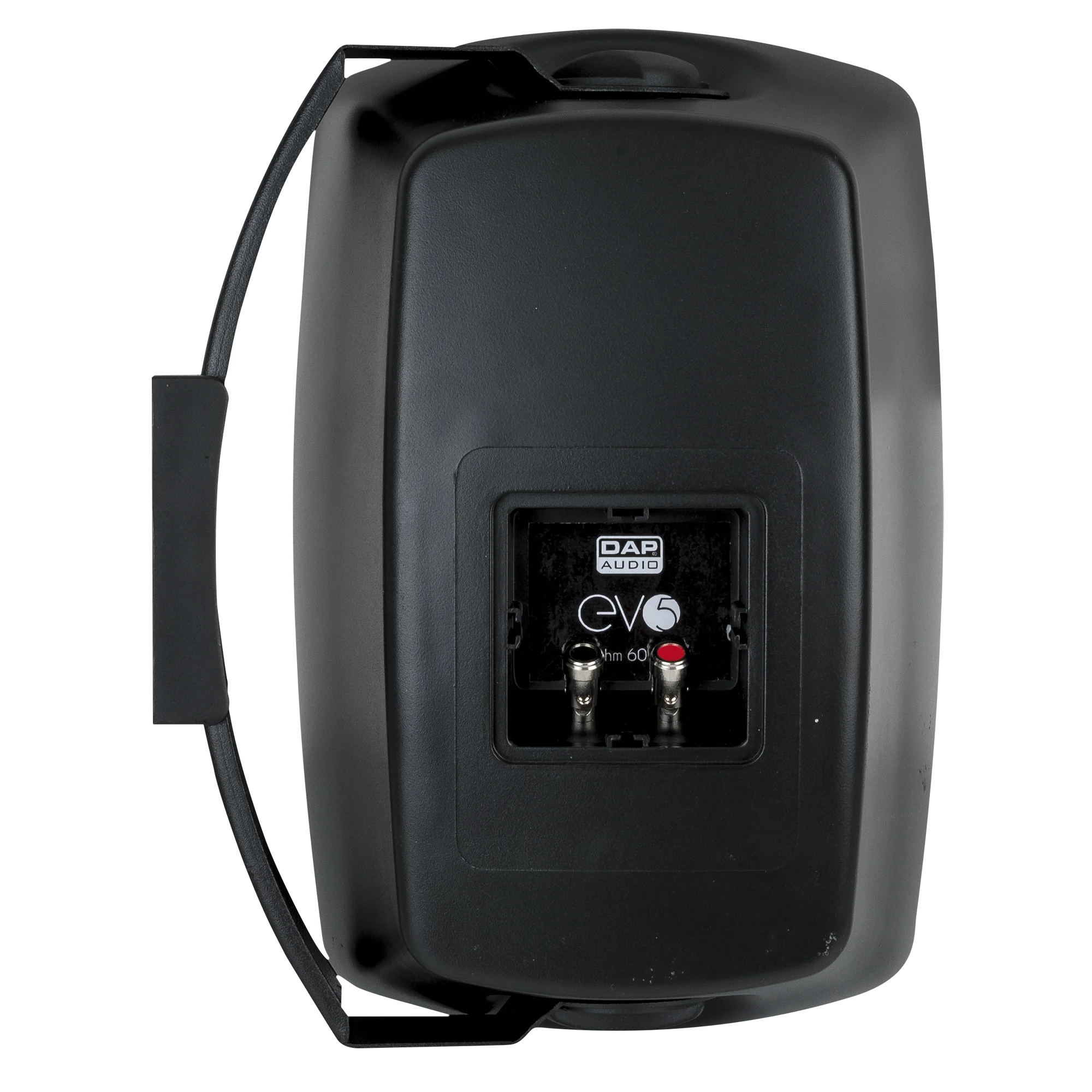

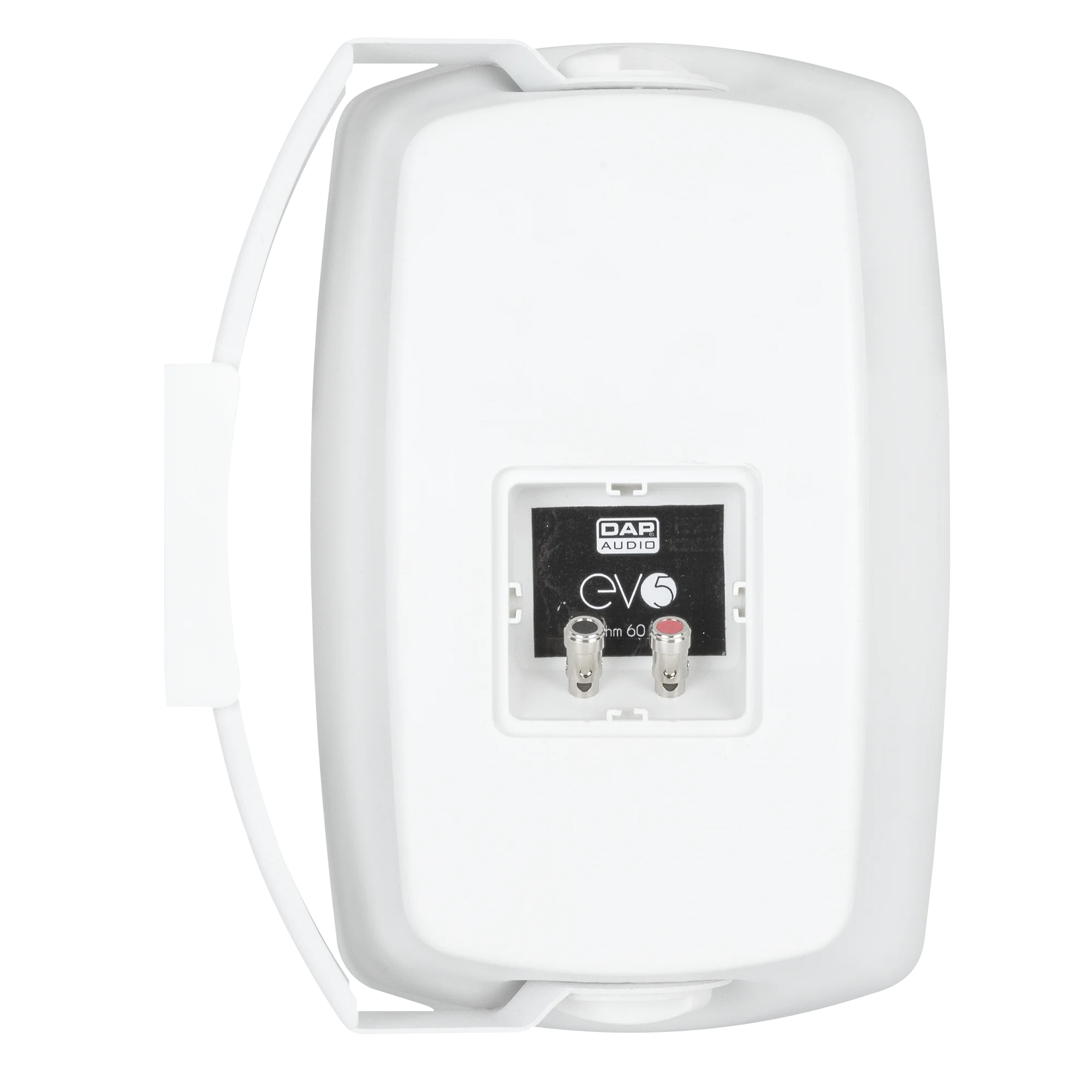

The EVO 5 fits nicely in any permanent indoor or outdoor location due to its elegant design (available in black and white), strong ABS construction and IP54 rating for protection against heavy rain, penetrating dust and splashing water.

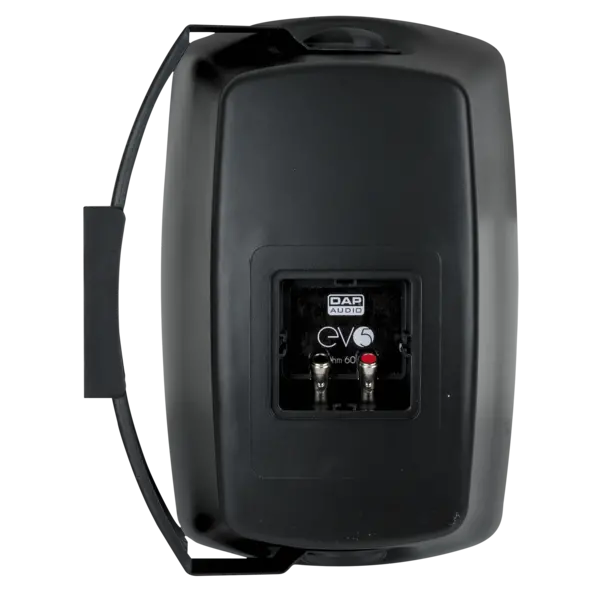

Installation can be done quickly and easily with a terminal connector and included bracket suitable for both horizontal and vertical mounting. Please note that an external amplifier is required. The DAP CA-4150 is a suitable amplifier for the EVO 5 speakers.

Technical specifications
RMS input power: 60 W
Peak input power: 120 W
Passive input connector: Terminal
Speaker system: 2-way
Speaker sensitivity (1W/1m): 89 dB
Speaker impedance: 8 Ω
Max. SPL/m: 113 dB
Minimum frequency response: 80 Hz
Maximum frequency response: 20000 Hz
Low driver diameter: 5.25"
Low driver voice coil: 1"
High driver diameter: 1"
High driver voice coil: 0.5"
Radiation horizontal: 110°
Radiation vertical: 90°
Height (mm): 252 mm
Width (mm): 163 mm
Length (mm): 163 mm
Material: ABS
Weight: 2 kg
IP rating: IP54
