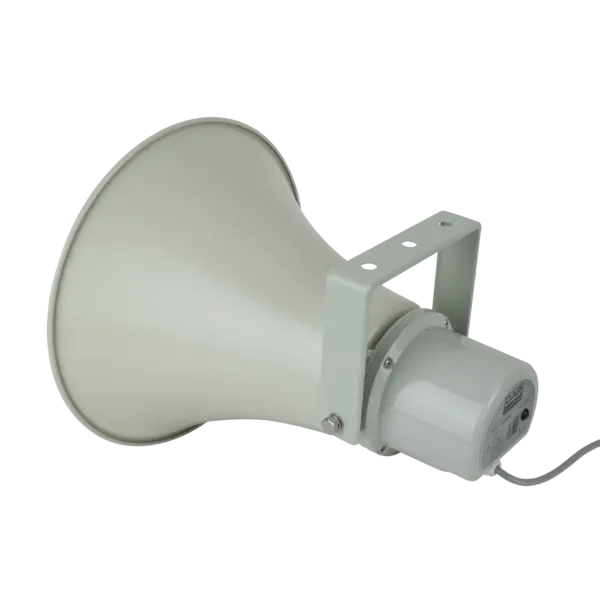

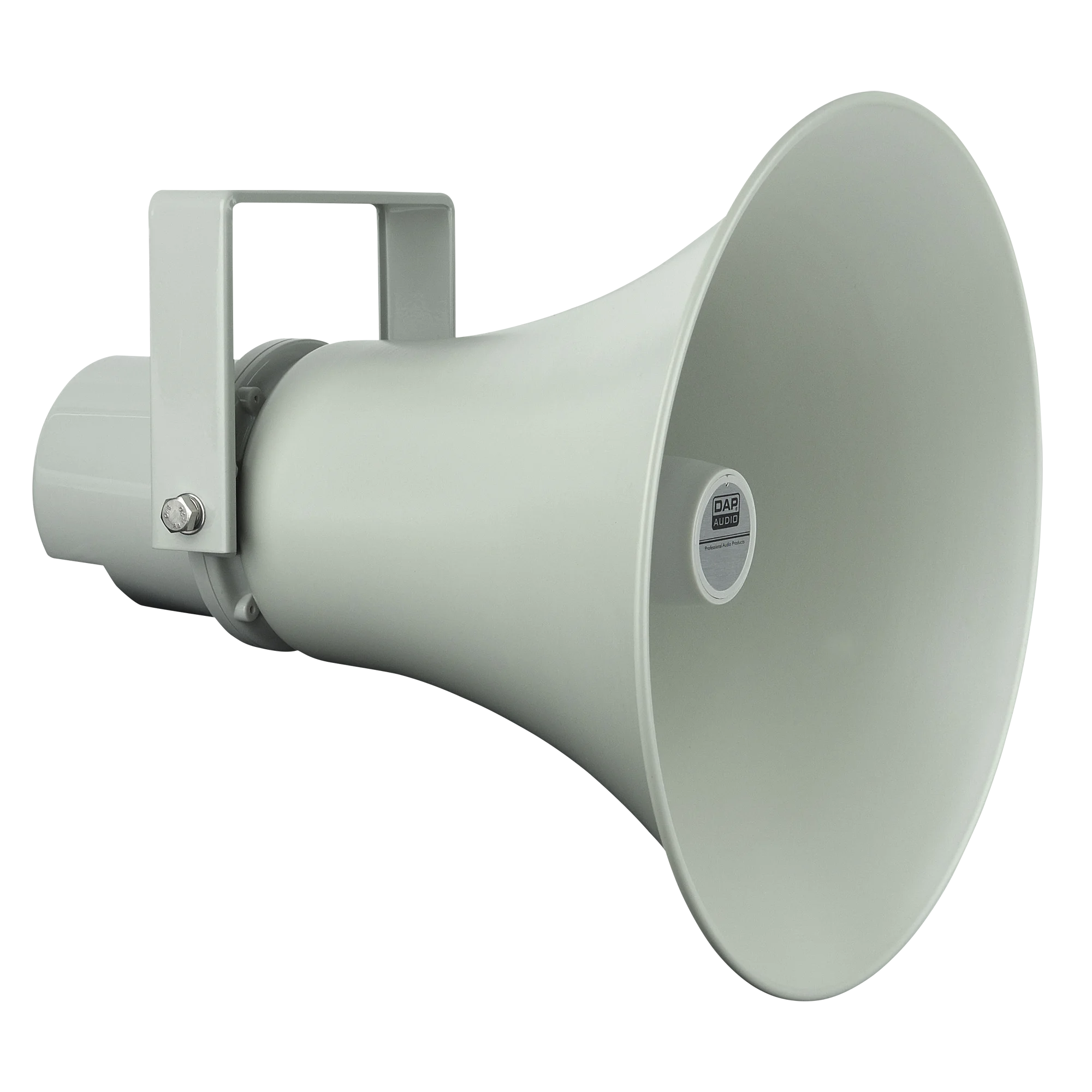

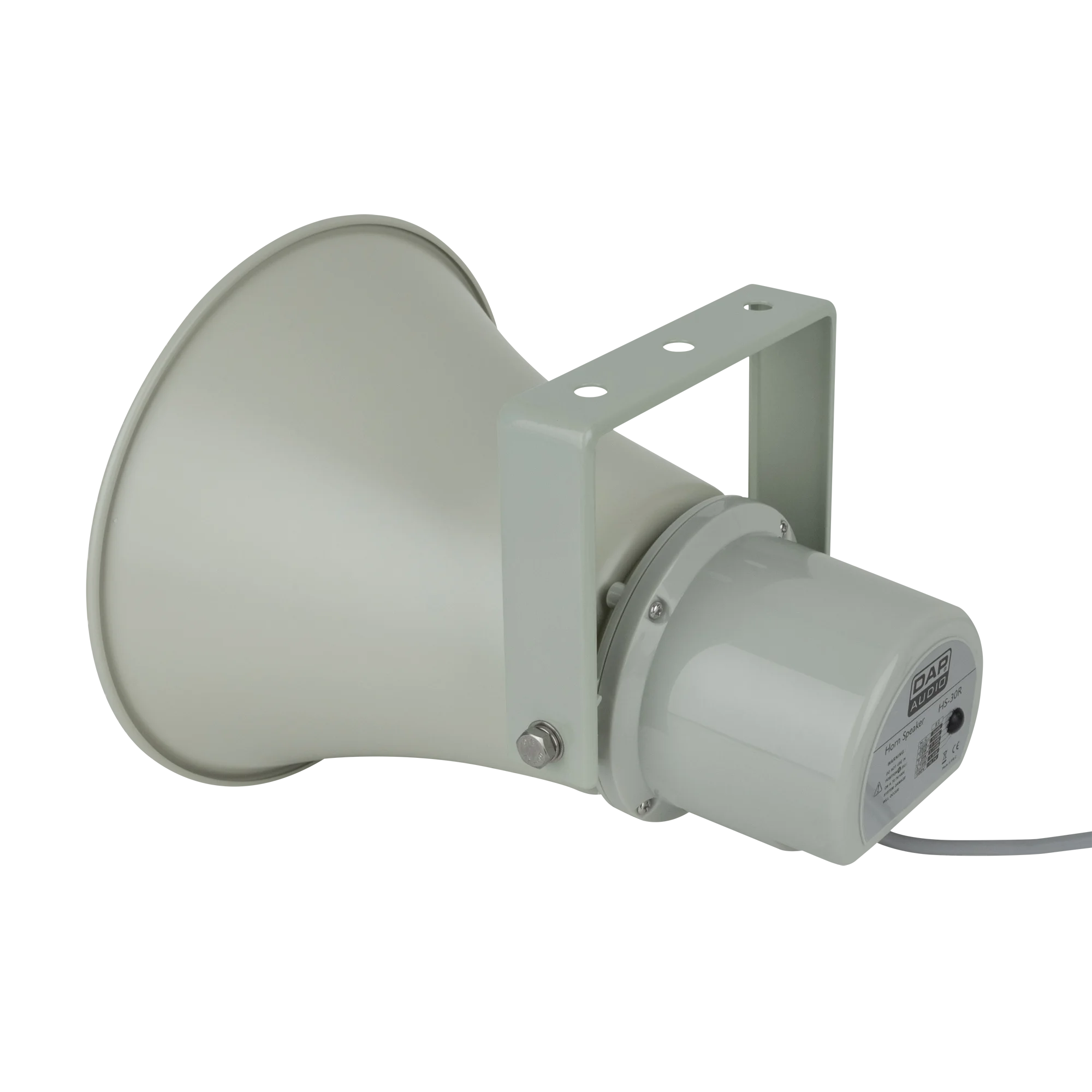

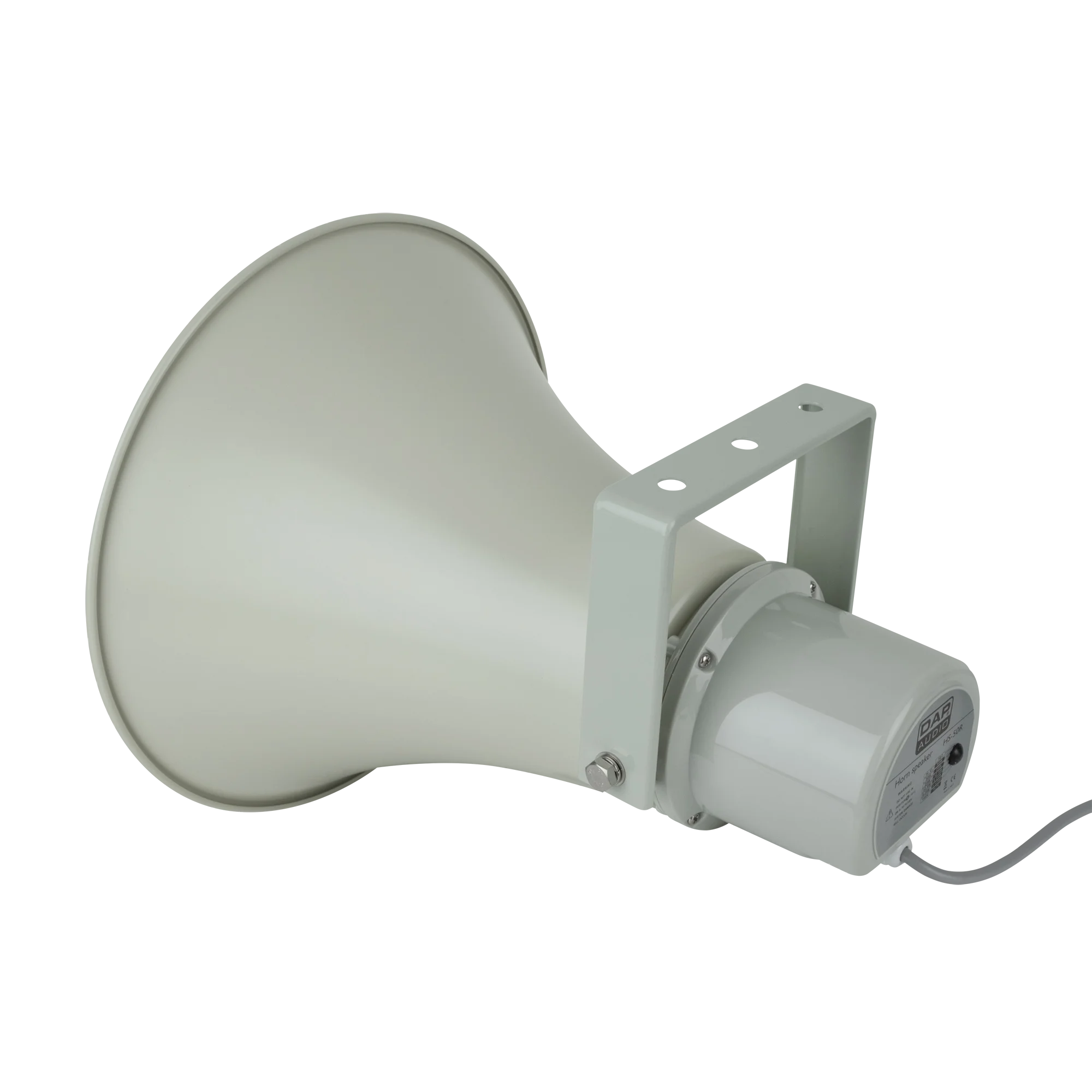

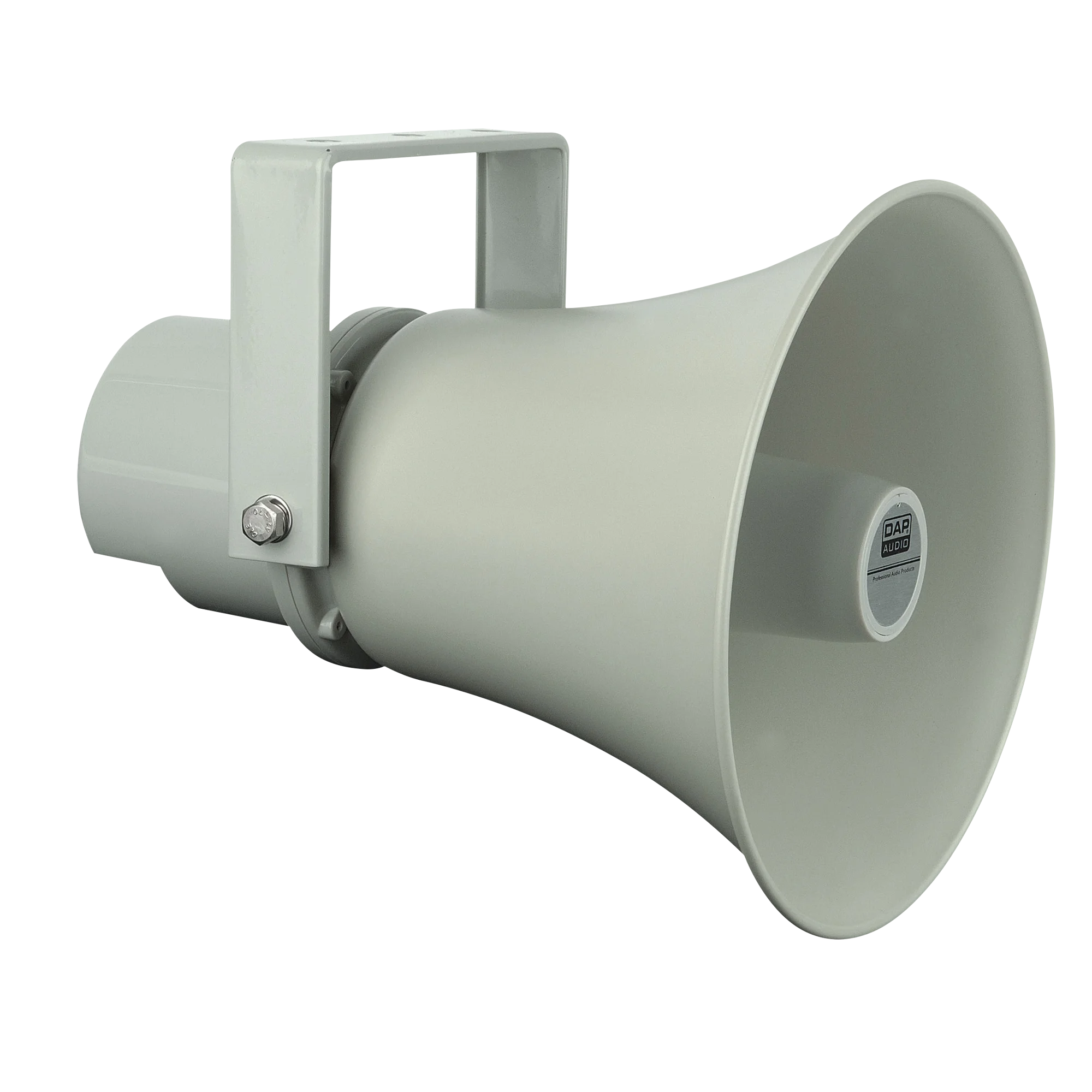

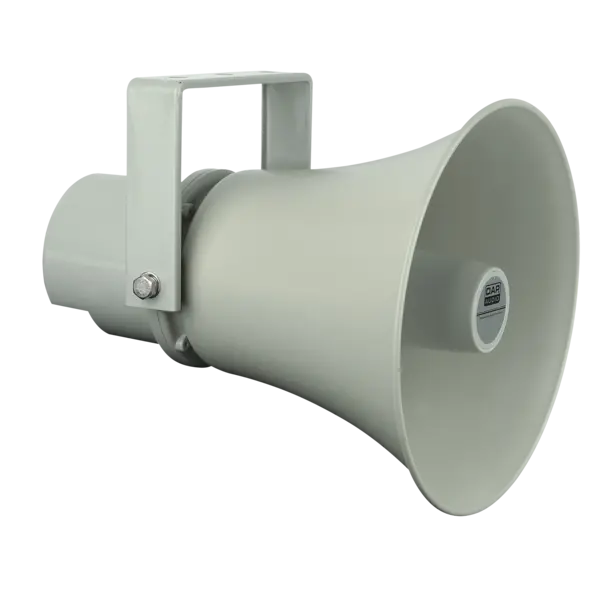

DAP | HS-R | Passive Round Horn Speaker | Colour: Light Grey

The DAP HS-R is a light grey passive 30- or 50-watt round horn loudspeaker suitable for public addressing. Because the dispersion is equal in all directions, this speaker is often used for long-distance applications, such as sports stadiums and shopping streets.

You can use the HS-30R in a 70V/100V installation to produce nice mid to high frequencies with a maximum SPL of 105 dB at 1 metre distance. You can match the volume to the other components in the system thanks to its line transformer with multiple power taps. With IP66 certification, it is suitable for outdoor applications. An included bracket ensures easy installation.

Technical specifications
Peak input power: 30 W
Transformer: 70+100 V

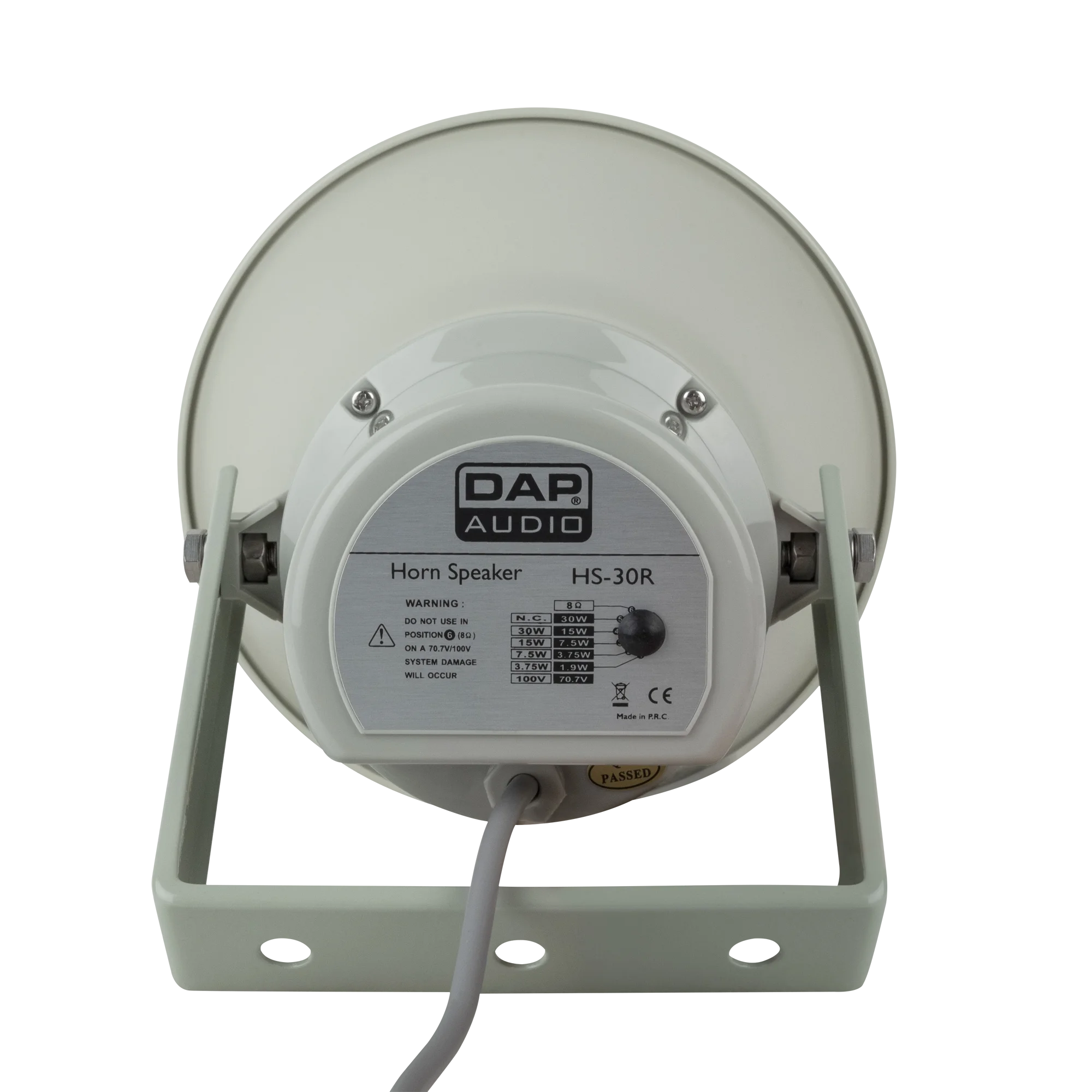

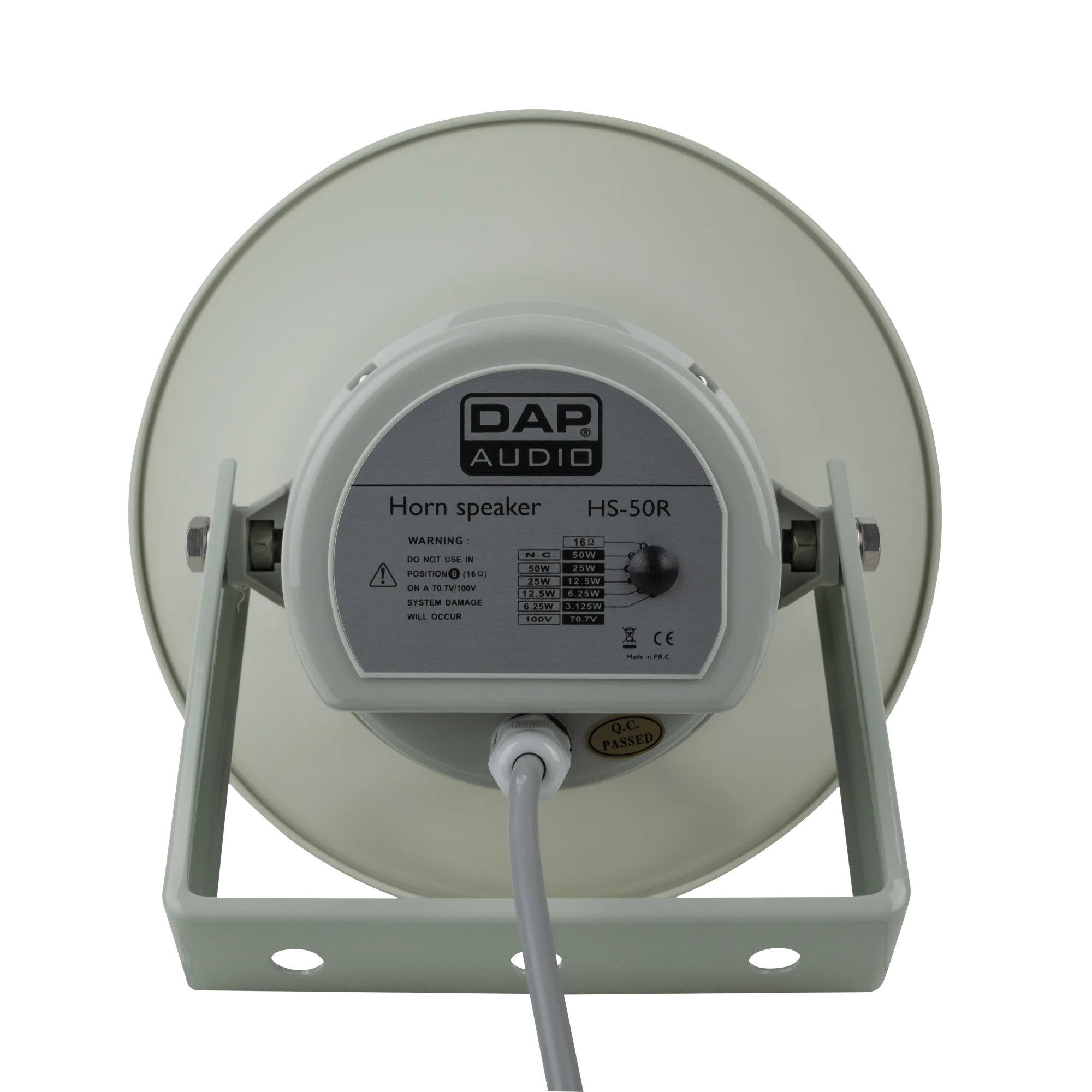

Line transformer steps: 1.9 / 3.8 / 7.5 / 15 / 30 W
Passive input connector: Open End
Speaker system: Horn
Speaker sensitivity (1W/1m): 107 dB
Speaker impedance: 8 Ω
Minimum frequency response: 380 Hz
Maximum frequency response: 6500 Hz
Speaker driver diameter: 39.5 mm
Height (mm): 250 mm
Width (mm): 245 mm
Length (mm): 290 mm
Weight: 2.1 kg
IP value: IP66
