DAP | Xi-6 | Passive 6" installation loudspeaker

The DAP Xi series offers passive installation speakers for decent bass and clear Hi-Fi sound in indoor venues. It is a perfect audio solution in places like pubs, restaurants and shops. You can mount them tightly against a wall or ceiling thanks to multiple available mounting options and recessed speaker connector. The Xi speakers' design is solid and practical. The high-quality Celestion HF drivers meet the demands of today's audio enthusiast.

Xi speakers can be mounted close to a wall or ceiling with an optional U-shaped mounting bracket and compact speaker wall bracket. The speakers can be placed both horizontally and vertically, as the horn of the Xi-8 and Xi-10 can be rotated up to 90 degrees. To do so, you need to remove the grill. This can be easily removed as it is mounted on a magnet.

Our latest version is not only equipped with a speaker input and output connector, but also with a green terminal connector. This is a more simple and cost-effective solution for setting up a fixed audio installation.

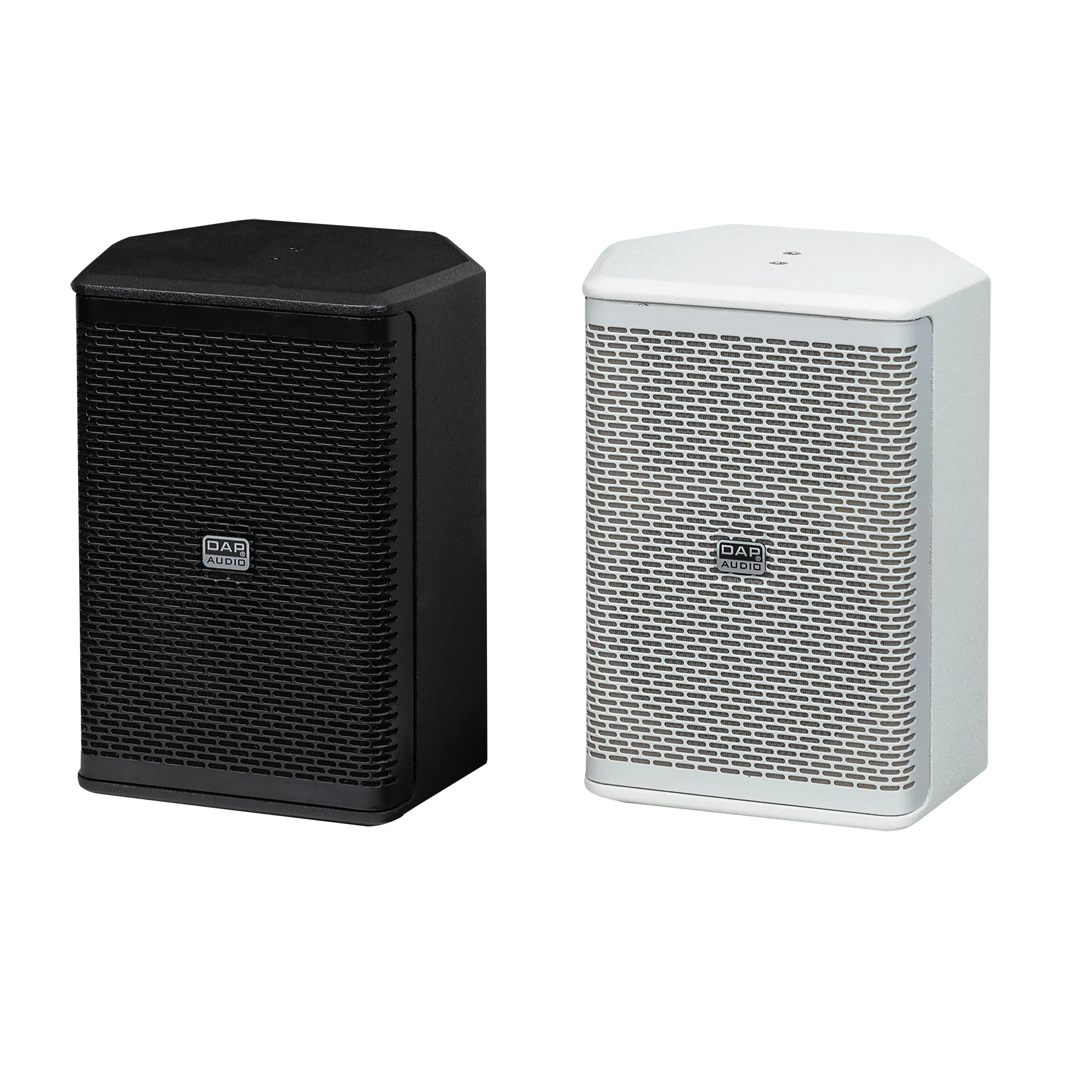

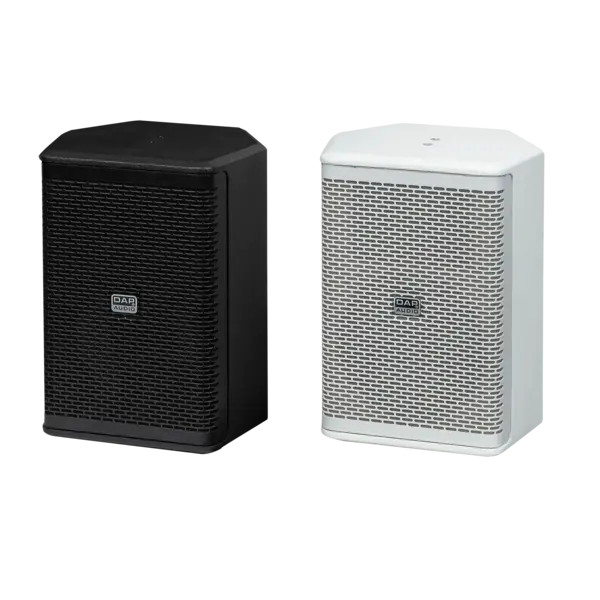

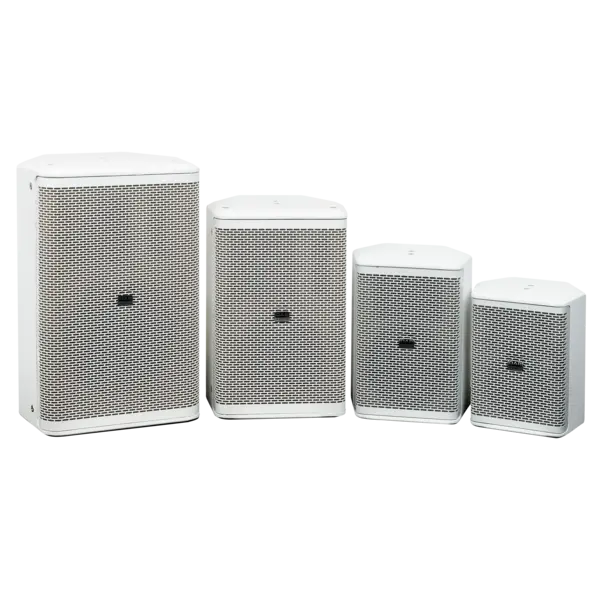

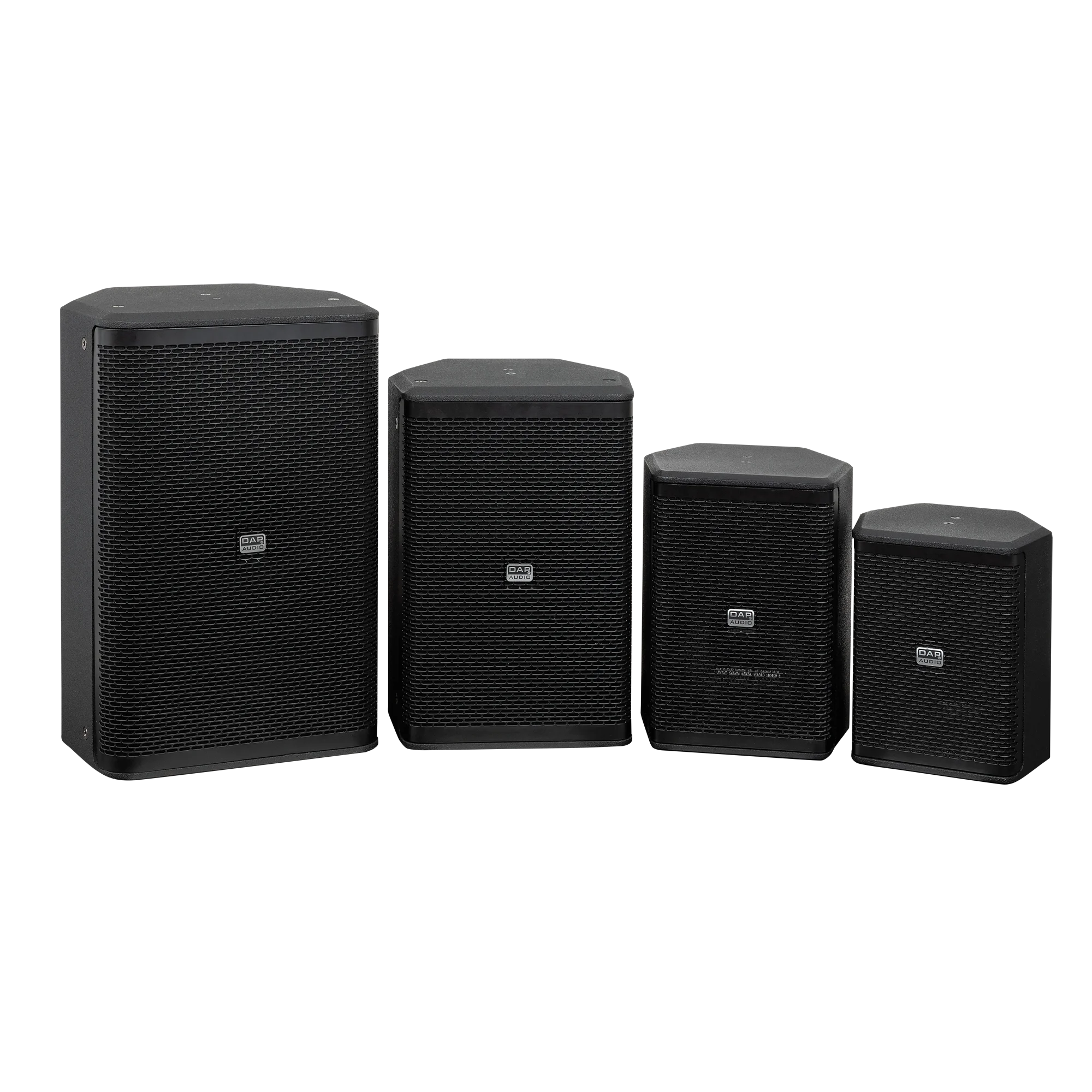

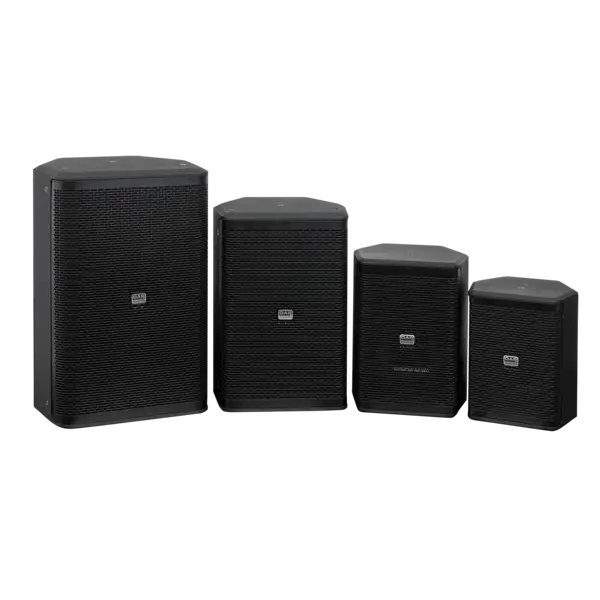

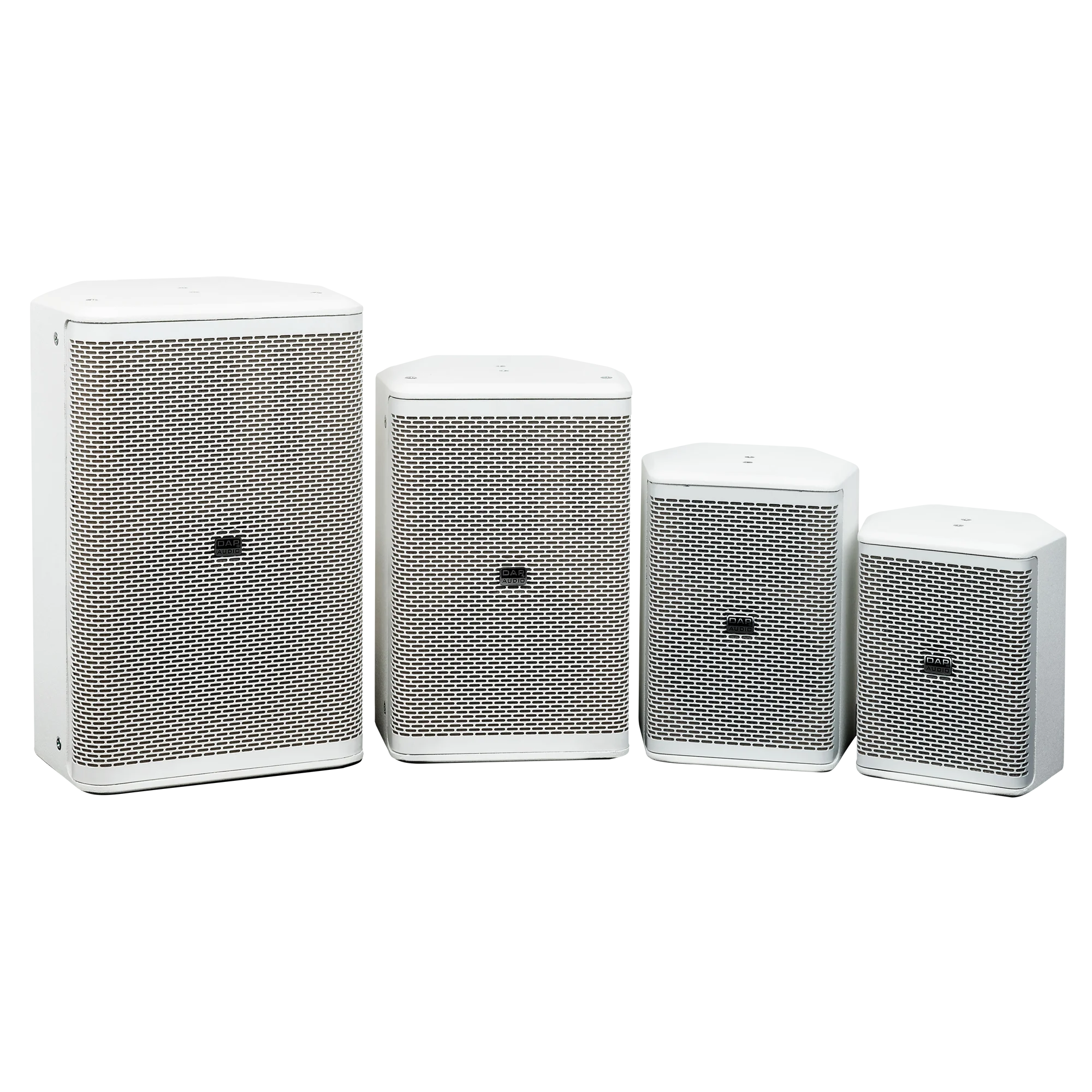

The Xi series consists of 5-inch to 10-inch full-range 2-way speakers. There are also 12-inch and 2x 8-inch Xi subwoofers available for adding natural bass response under high pressure. All models are available in black and white to suit any environment. Interested in our DAP Xi series? Then contact us now for free advice and receive an offer you can't refuse, or check out our product pages for more information.

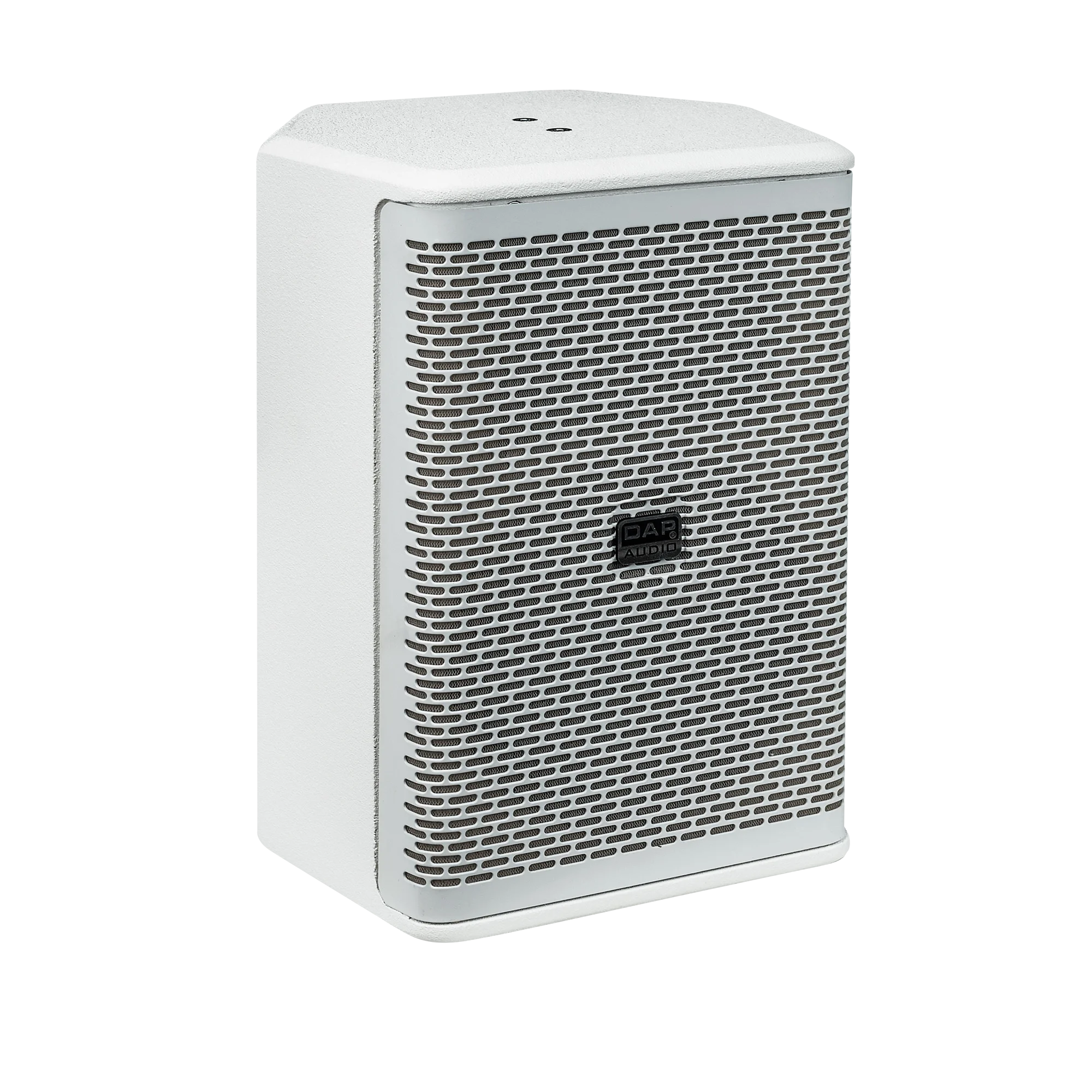

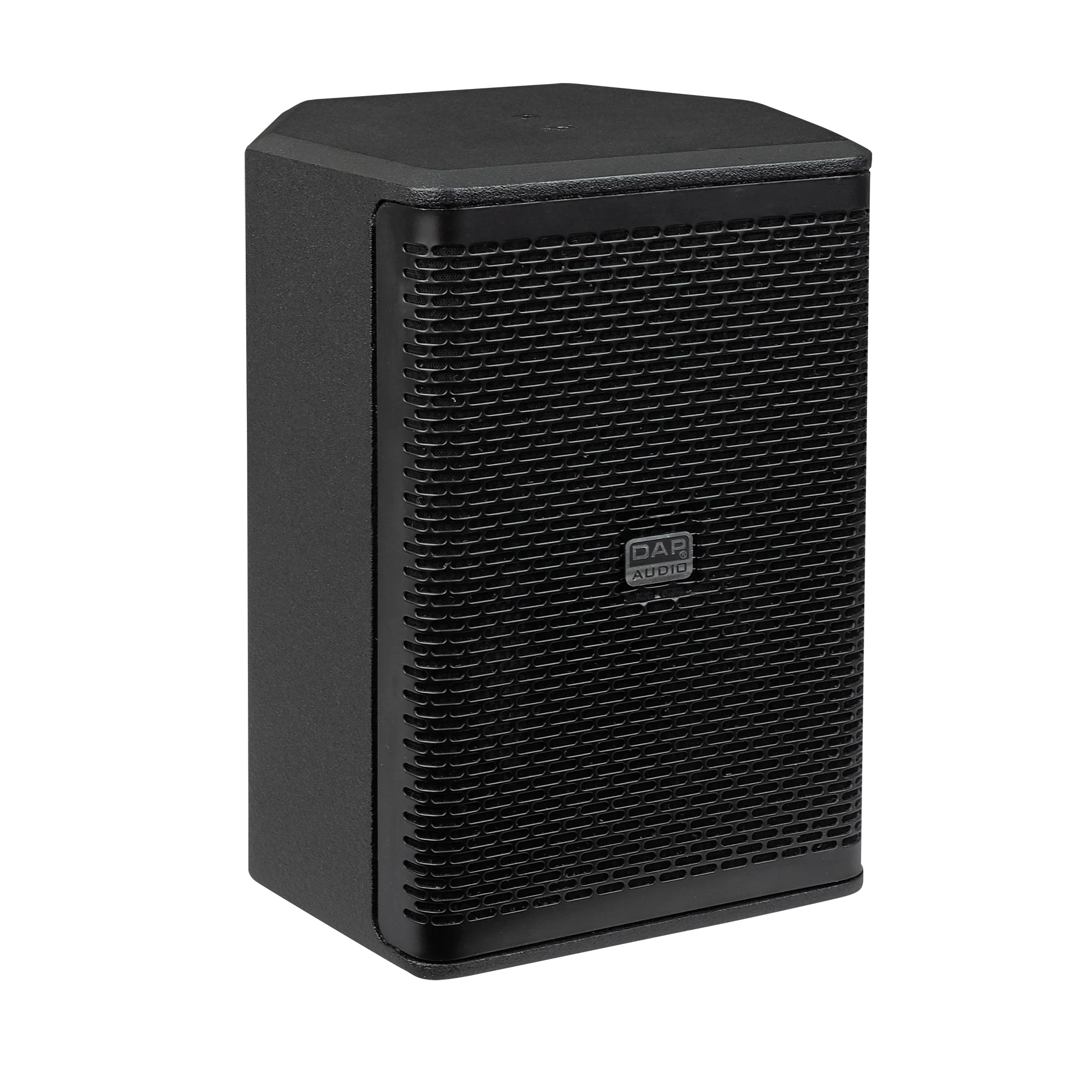

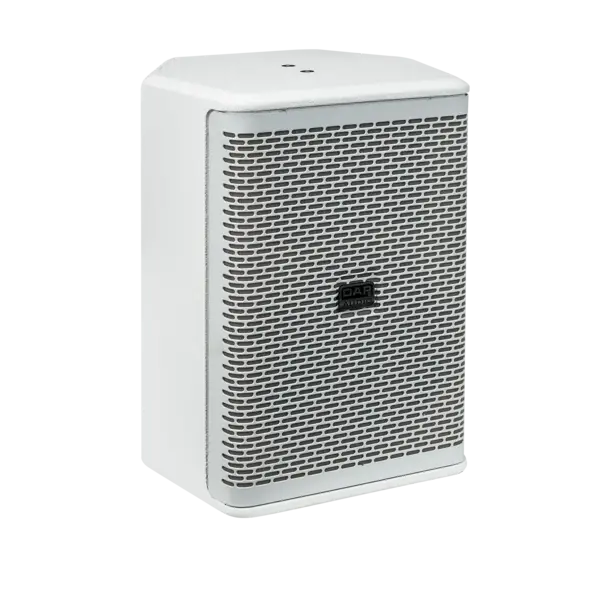

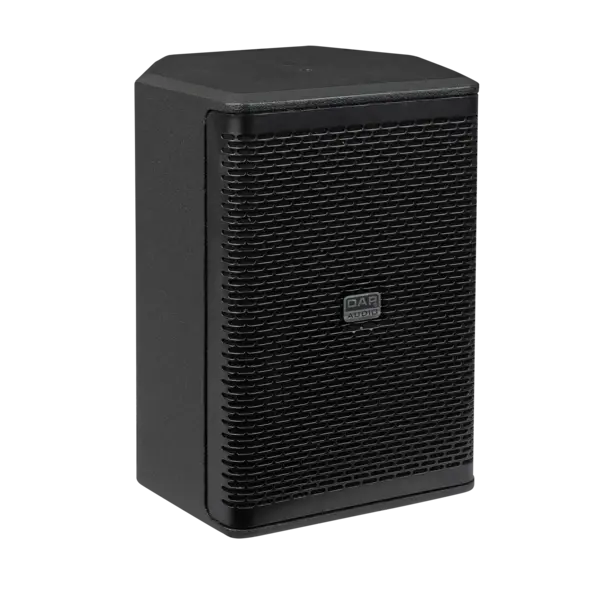

The DAP Xi-6 is an elegant 6.5-inch passive installation speaker with a 1" Celestion HF driver for clear hi-fi sound. It is particularly suitable for fixed indoor locations. Its smart design, with recessed Speaker 4-pole chassis, easily removable magnet-mounted grill and rotatable logo, is perfect for various applications. The speaker can also be placed horizontally as well as vertically due to its various mounting options.

This full-range 2-way speaker can be mounted directly to any ceiling or wall using the optional U-shaped suspension bracket and compact speaker wall bracket. Not only is the Xi-6 versatile, it fits into any environment with a black or white enclosure and works on any 16 Ω audio infrastructure.

Speakers can be connected via Speaker 4-pin or green PCB connectors for quick and inexpensive installation.

Technical specifications
RMS input power: 175 W
Peak input power: 700 W
Passive input connector: Speaker Connector 4 pole / Terminal
Speaker system: 2-way
Speaker sensitivity (1W/1m): 92 dB
Speaker impedance: 16 Ω
Max. SPL / m: 122 dB
Frequency response minimum: 80 Hz
Frequency response maximum: 20000 Hz
Frequency response (-10dB) minimum: 60 Hz
Frequency response (-10dB) maximum: 20000 Hz
Low driver diameter: 6.5"
Low driver voice coil: 2"
High driver diameter: 1"
High driver voice coil: 1"
Radiation horizontal: 90°
Radiation vertical: 60°
Height (mm): 333 mm
Width (mm): 250 mm
Length (mm): 226 mm
Material: Plywood
Weight: 6.7 kg
IP value: IP20 (indoor use only)
Rotatable handset: No
