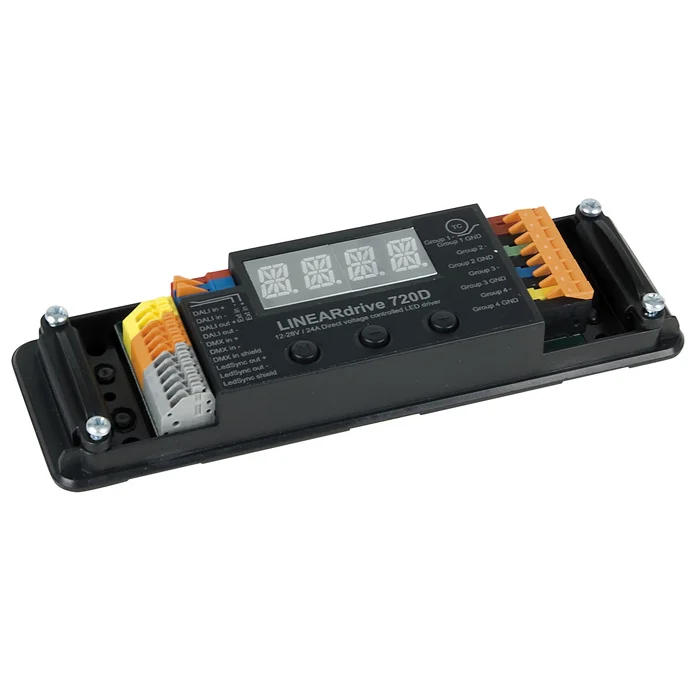

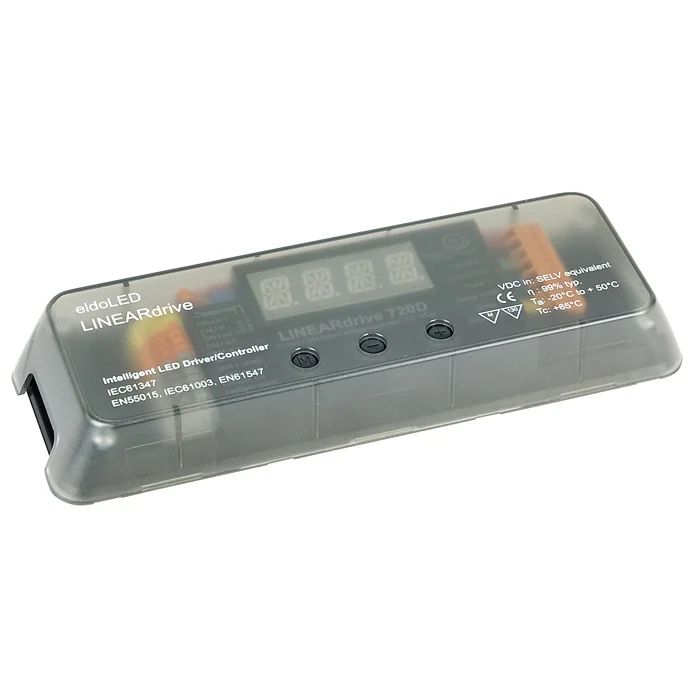

EldoLED | A9950051 | LINEARdrive Constant Voltage | eldoLED LIN720D DALI / DMX 4 channels 4 outputs 6 A/Ch

eldoLED Lineardrivers are high-end PWM dimmers for flickerfree and smooth dimming, even in the very low ranges. The are available in 0-10 V, Dali and DMX, for single and multicolour.

Technical specifications
Control Mode: DMX
DMX Channels: 4
Protocols: DMX
Power Supply: 12-28 VDC
Output Voltage: 12-28 VDC
Maximum Output Current (A): 24 A

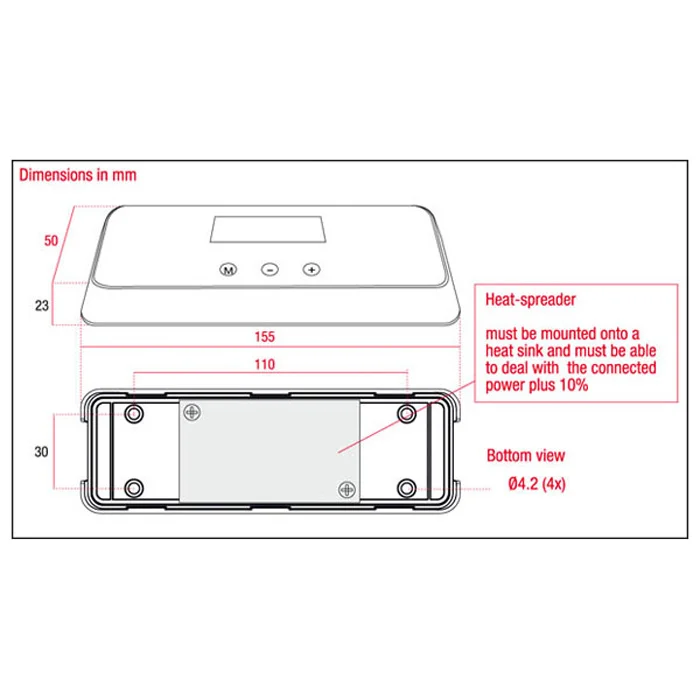

Length (mm): 155 mm
Height (mm): 23 mm
Width (mm): 50 mm
IP Rating: IP20 (indoor use only)
