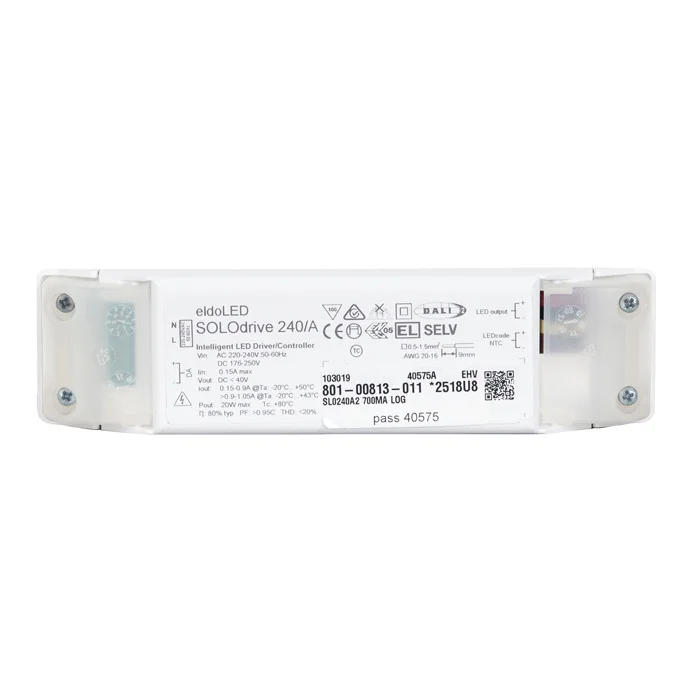

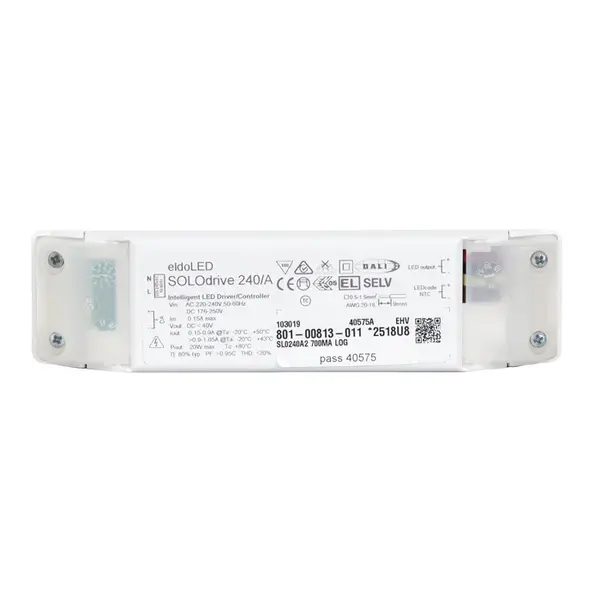

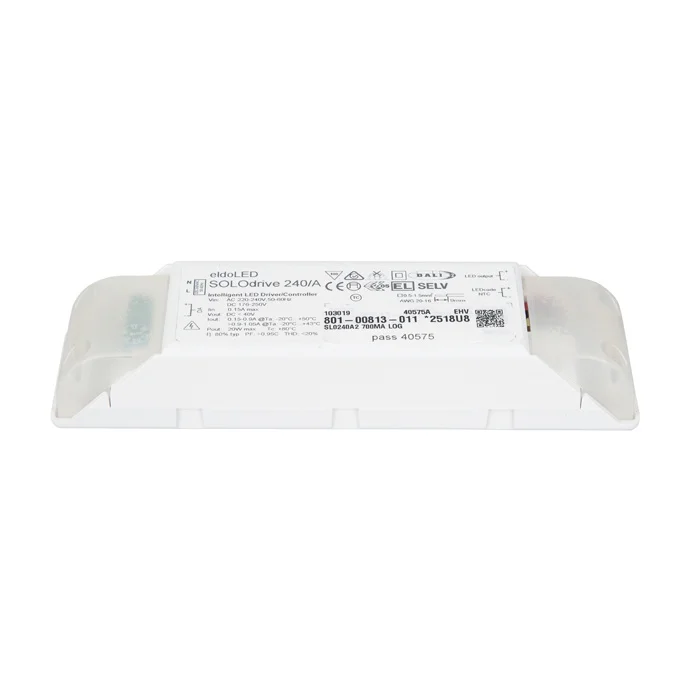

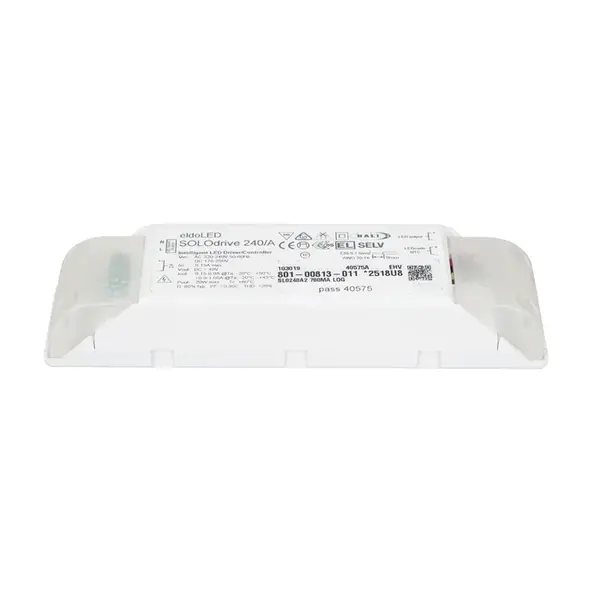

EldoLED | A9950250 | Solodrive 240 A | 20 W Dali LED driver pulse dimming

SOLOdrive 240/A delivers 20 W and is DALI-2 certified. As all SOLOdrives, the 240/A smoothly dims all the way down to dark. The 20 W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50 mm diameter hole in the ceiling into a plenum with a 110 mm height between functional and decorative ceiling.
With Pulse dimming it is possible to create lighting systems that can be easily switched and smoothly dimmed from multiple control points at low cost.

Technical specifications
Control Mode: DALI / Push-dim
Dimmable: Yes
Power Supply: 220V-240 VAC 50 Hz
Output Voltage Vf/Vo Minimum: 2 VDC
Output Voltage Vf/Vo Maximum: 40 VDC
Length (mm): 160 mm
Height (mm): 31 mm
Width (mm): 42 mm
IP Rating: IP20 (indoor use only)
