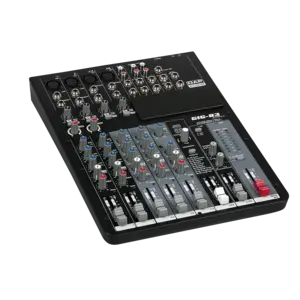

DAP | D2282 | GIG-83CFX | 8-channel analog mixer

The DAP GIG-83CFX is an 8-channel analogue mixer with 3 stereo and 2 mono inputs, equipped with +48 V phantom power that allows the use of both dynamic and condenser microphones. The mono and first two stereo channels each have a 3-band EQ and the third stereo channel has a 2-band EQ.

The GIG-83 is equipped with a 24-bit DPS effects engine with 100 adjustable presets for adding beautiful effects such as chorus, delay and reverb. In addition, two mono channels have a compression module to ensure that vocals are clearly intelligible and do not have large peaks in volume difference.

It is possible to add an external effects pedal thanks to the 'send' and 'return' connections. Besides, you can integrate the MP3 USB Record Module that is especially designed for DAP GIG analogue mixers.

Technical specifications
Mono Inputs: 4
Stereo Inputs: 3
2-track Audio Input: Yes
Stereo Return Input: Yes
Main Outputs: 1
FX Send Outputs: 1
Control Room Output: 1
Headphone Output: 1
THD Level: < 0.03 %
Signal-to-noise Ratio: > 100 dB
Frequency Response Minimum: 22 Hz
Frequency Response Maximum: 22000 Hz
Phantom Power: 48 V
Parametric Channel Equalizer: 2 Bands
Input Channel Fixed Frequencies: 80, 12.000 Hz
Parametric Microphone Equalizer: 3 Bands
Microphone Input Fixed Frequencies: 80, 2.500, 12.000 Hz
Dynamics Processing: Compressor
Built-in FX: Yes
Power Supply: 240 VAC 50-60 Hz
Power Consumption: 40 W
Height (mm): 63 mm
Width (mm): 254 mm
Length (mm): 343 mm
