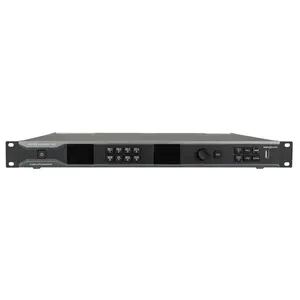

Novastar | 101635 | HDR Master 4K | 4K video processor for improving image quality (SDR - HDR)

The Novastar HDR Master 4K is a video processor for improving image quality by converting SDR to HDR for a wider dynamic range, more colours and richer bright and dark details. Any laptop, PC, camera and video player is assignable due to various switchable inputs and to be displayed properly on various sources, like TVs or LED screens. Equipped with a resolution scaling option, the HDR Master 4K can perfectly upscale and downscale the input to almost any desired pixel size up to 4K resolution @60 fps. Unlike other video processors, no external preview display is required thanks to its built-in preview LED-screen. Also, a back and front content layering function is included, allowing you to add a logo or background image to your visuals. Optionally, you can use the fiber connector for bridging large distances (>20 m).

Please note that you'll need two HDR Master 4K units (sender & receiver) for being able to use its fiber connector.

Technical specifications
DP 1.2: 1
HDMI 2.0: 1
12G-SDI: 4
USB 2.0 (In): 3
HDMI 2.0 (Out): 2
HDMI (for Control): 1
12G-SDI (Out): 4
SFP Slot Type: 10G
SFP Slot Quantity: 4
Scaling Function: Yes
Image Mosaic: Yes
Layers: 1
GenLock: In & Out
Background Image: Yes
Logo: Yes
Maximum Input Resolution: 4K x 2K
Maximum Output Resolution: 4K x 2K
Ethernet Ports: 1
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 120 W
Power Connector In: IEC
Data Connector In: RJ45
