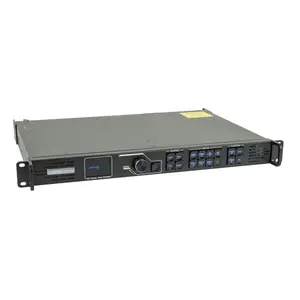

Novastar | 101626 | VX600 | All-In-One Video Processor

The Novastar VX-600 is an all-in-one video processor suitable for small to medium size LED screen installations. It can drive up to 3,900,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels in height, which is ideal for ultra-wide and ultra-high LED screen applications.

The VX-600 offers a variety of video inputs and it allows you to switch seamlessly between several input sources. Furthermore, it supports up to three layers (1x main / 2x PIP), scaling function, low latency and Gen-Lock function.

Besides the built-in sending card with 6 Ethernet ports, the VX-600 also offers the option to install an SFP module. With this module you can cover bigger distances than the 100 metre limit of Ethernet cables and drive another VX-600 (fibre mode) or CVT10 fibre connector, which then drives your LED screens. The second fibre output serves as a backup and will automatically take over in case something happens to the main output ("Output 1").

For controlling even bigger LED screen installations, Image Mosaic function is available. This enables you to combine up to four VX-600 units.

Screen configuration can be done by USB and Ethernet connection. The modern 1U box fits nicely in a 19" rack or case, making it most suitable for rental companies and fixed installations.

Technical specifications
HDMI 1.3: 2
Single Link DVI: 1
3G-SDI: 1
Main Outputs: 6
HDMI 1.3 (Loop): 1
HDMI (PVW / MVR): 1
Single Link DVI (Loop): 1
3G-SDI (Loop): 1
SFP Slot Type: 10G
SFP Slot Quantity: 2
Scaling Function: Yes
Image Mosaic: Yes
PIP: Yes
Layers: 3
GenLock: In & Out
Maximum Loading Capacity: 3.9 Mpx
Maximum Input Resolution: 1920 x 1200 / Width and Height can be defined by users
Control Options: Ethernet / USB
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 28 W
Power Connector In: IEC
Data Connector In: RJ45 / USB
Data Connector Out: RJ45 / USB
