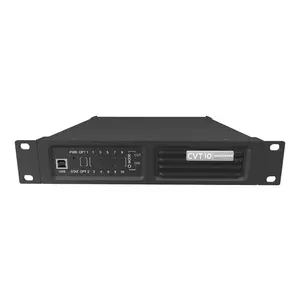

Novastar | 101655 | CVT10-M | 10x gigabit ethernet to fibre converter

The Novastar CVT10-M is a cost-effective long distance transmission solution for medium to large LED screen applications. It converts up to 10 network signal cables into a single fibre cable. Its design enables you to install it easily, securely and reliably in a 19-inch rack or case with a 1 unit height.

The CVT10-M can be connected directly to processors which are equipped with fibre optic output such as the VX1000, MCTRL660 PRO, Phobos R5 and the MCTRL4K.

This LED screen fibre convertor can be used both as receiver or transmitter and can therefore also be used with other Novastar processors. You'll need two devices (TX/RX) when using a processor without fibre optic output.

The CVT10-M can be used for sending data of 10 individual 1 Gb signals to a distance of up to 300 m. It comes with a power cord, USB cable, 2x 10G SFP (LC)modules, two supporting brackets (of which one with nuts), connecting piece, screws, 19" installation kit and assembling diagram.

Technical specifications
Main Outputs: 10
SFP Slot Type: 10G
SFP Slot Quantity: 2
SFP Module Fibre Connector Type: LC
SFP Module(s) Included: Yes
Fibre Mode: Multi-mode
Maximum Transmission Distance: 300 m
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 22 W
Power Connector In: IEC / powerCON TRUE1
Data Connector In: USB
Data Connector Out: RJ45
