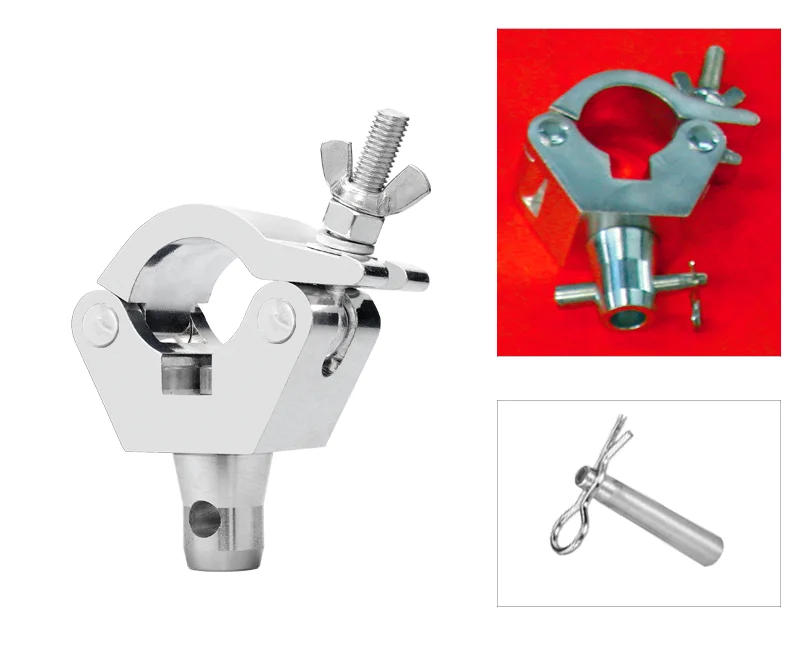

GUIL | ABZ-13 | half coupler with tapered truss adapter (ref. TQN) | including key and lock spring | aluminium | width: 50mm | diameter: 45-52 mm tubes | load capacity: 300kg - Copy

Heavy duty aluminium half coupler with tapered adapter (solid aluminium) for attachment to truss. It is compatible with GUIL square truss, ref. TQN. The tapered adapter fits into the truss connector, allowing the truss to be installed in multiple positions.

For use on trusses/tubes with an external diameter of 45 mm to 52 mm. Our coupler ref. ABZ-13 has a double locking system with nut and wing nut, making it the right coupler for the most demanding set-ups, such as theatres, live shows, events etc. where the strictest safety requirements must be met.

By removing the taper adapter and adding a wing nut and bolt, an eye nut, a second clamp (making it a swivel coupler) or any other attachment, it can be used for other functions.
