JAG microphones | 801001 | IM5A | Headset microphone | Colour: Beige

Artikelcode 801001
JAG-microphones* JAG microphones | 801001 | IM5A | Headset microphone | Colour: Beige
104 in stock
Directly available

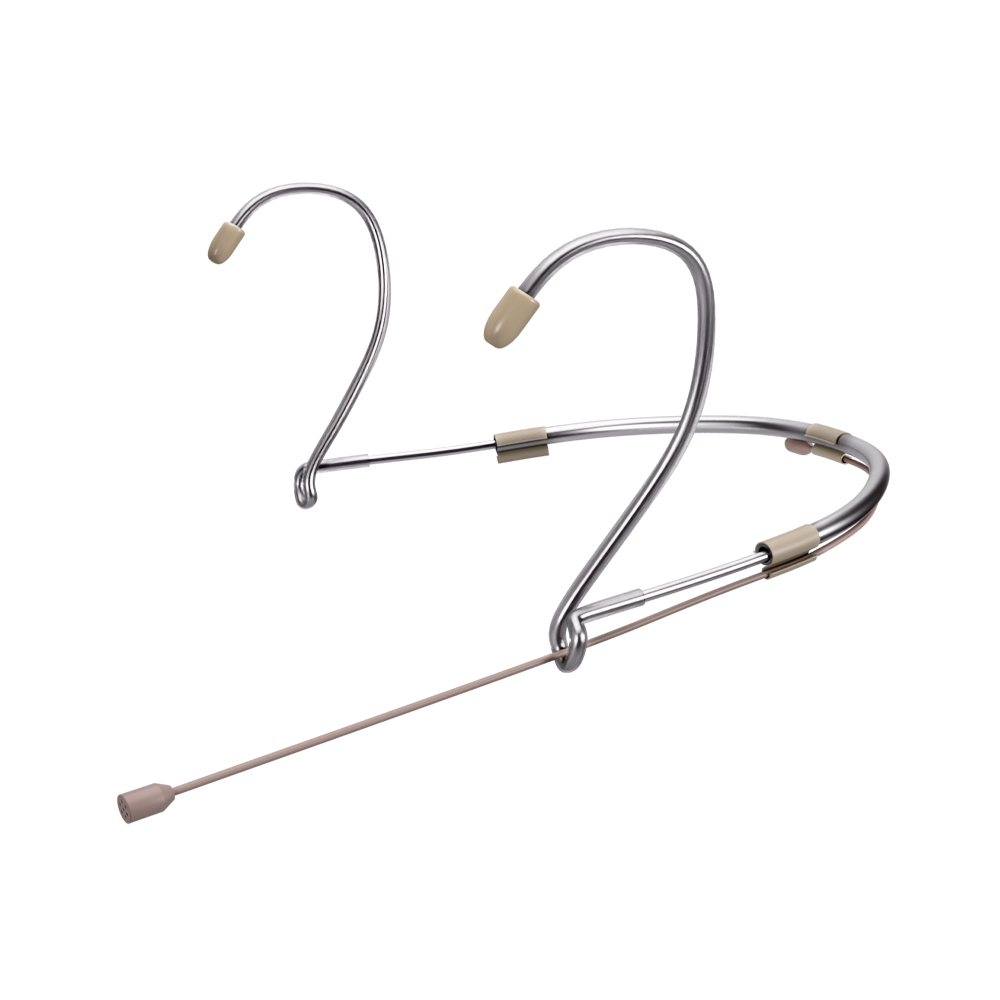

JAG microphones | IM5A |Headset microphone | beige

Just Audio Gear, abbreviated as JAG, is an Australian designer and manufacturer of microphones. They focus entirely on one product group, headset microphones, so they can guarantee optimum quality. The IM5A headset microphone targets the semi-professional market.

Very soft and very loud

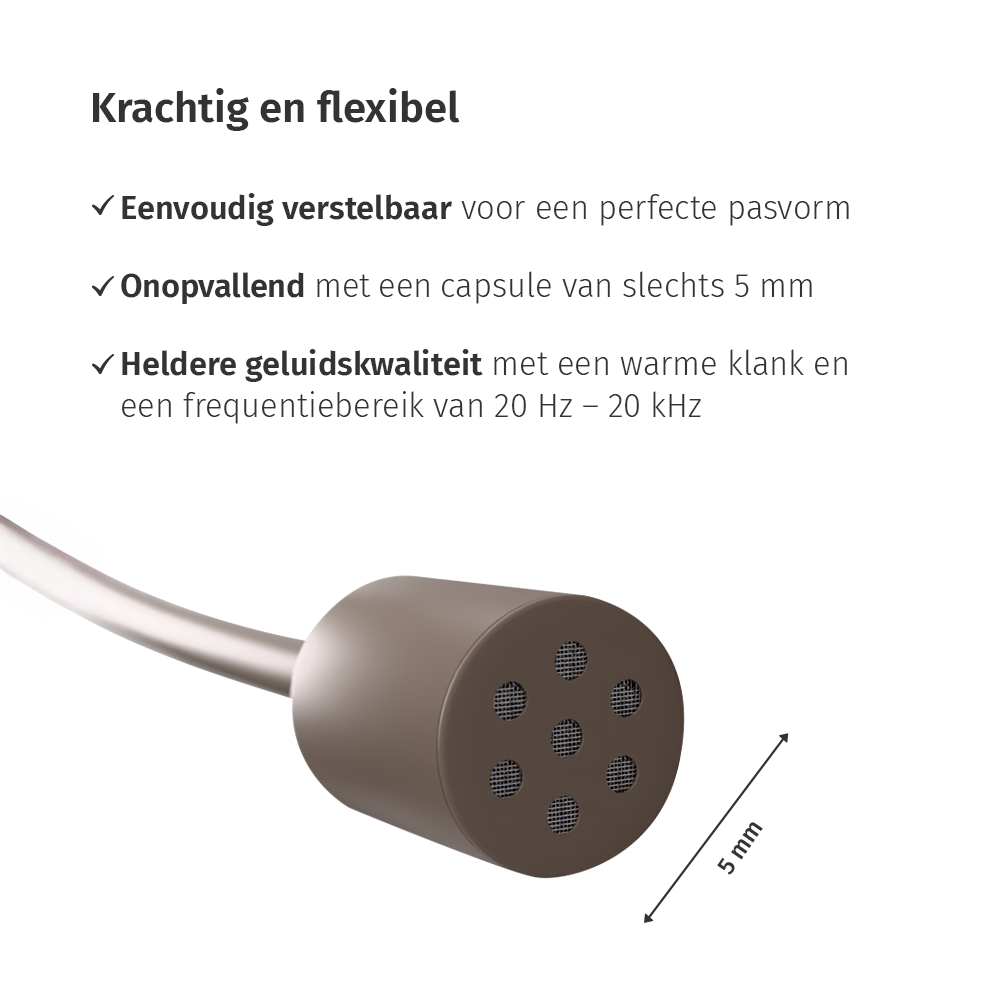

JAG meets the requirements of amateur and semi-professional users with the IM5A. The 5mm capsule delivers a warm and natural sound that captures even the softest voices. With a maximum SPL of 135dB, the IM5A can also handle the overwhelming performance of voices that have yet to learn to be mastered. At the same time, the IM5A responds excellently to EQ'ing and engineers can place this microphone in the mix with confidence.

International market

JAG's headsets now have a large number of enthusiastic users in Australia and the UK. Thanks to their reliability, robustness, modest design and service-friendliness, they enjoy popularity with rental and production companies.

If you want to test the JAG Headset Microphone yourself, no problem we have several demos in stock.

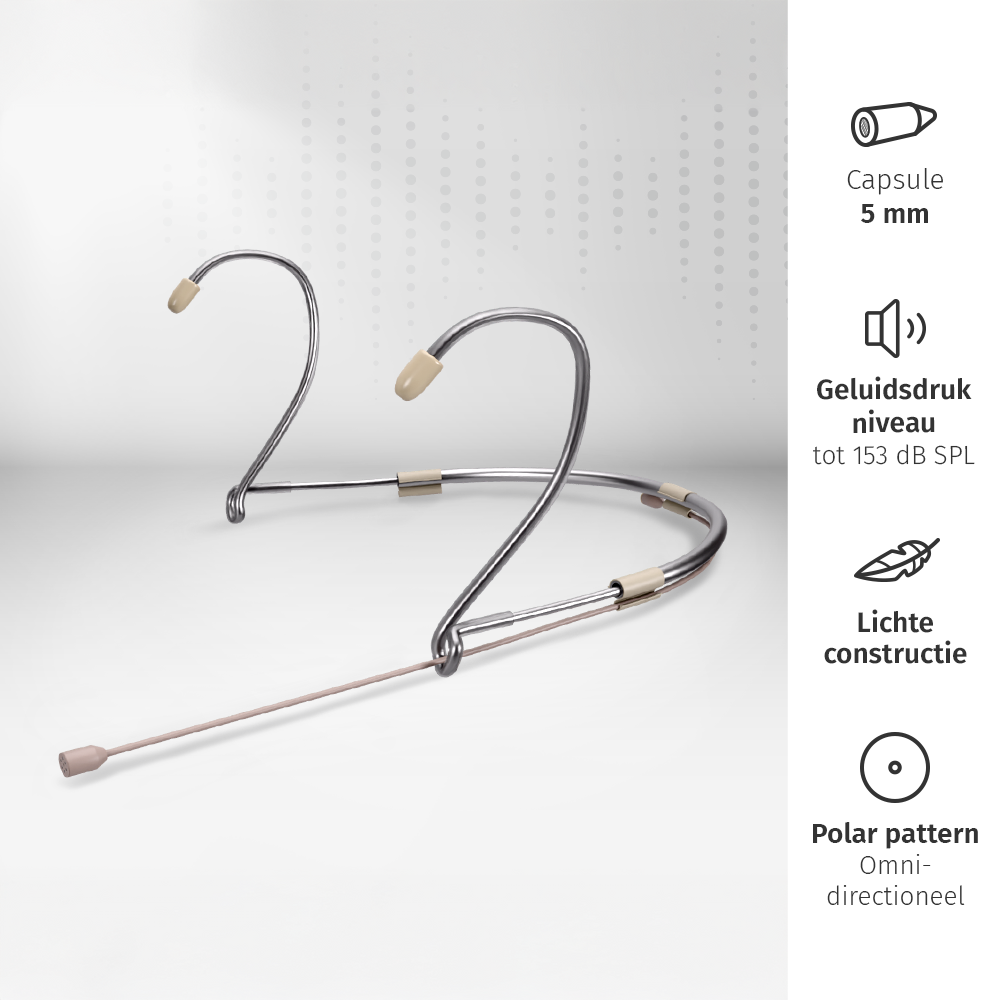

Specifications

Conversion:

electret

Directional characteristic:

omni-directional

Frequency response:

20 - 20KHz

Sensitivity:

-45dB ±3dB 1V/Pa

Output impedance:

2kΩ (±30%)

Max. SPL:

135dB

Enclosure:

Φ5.0mm

Adapters:

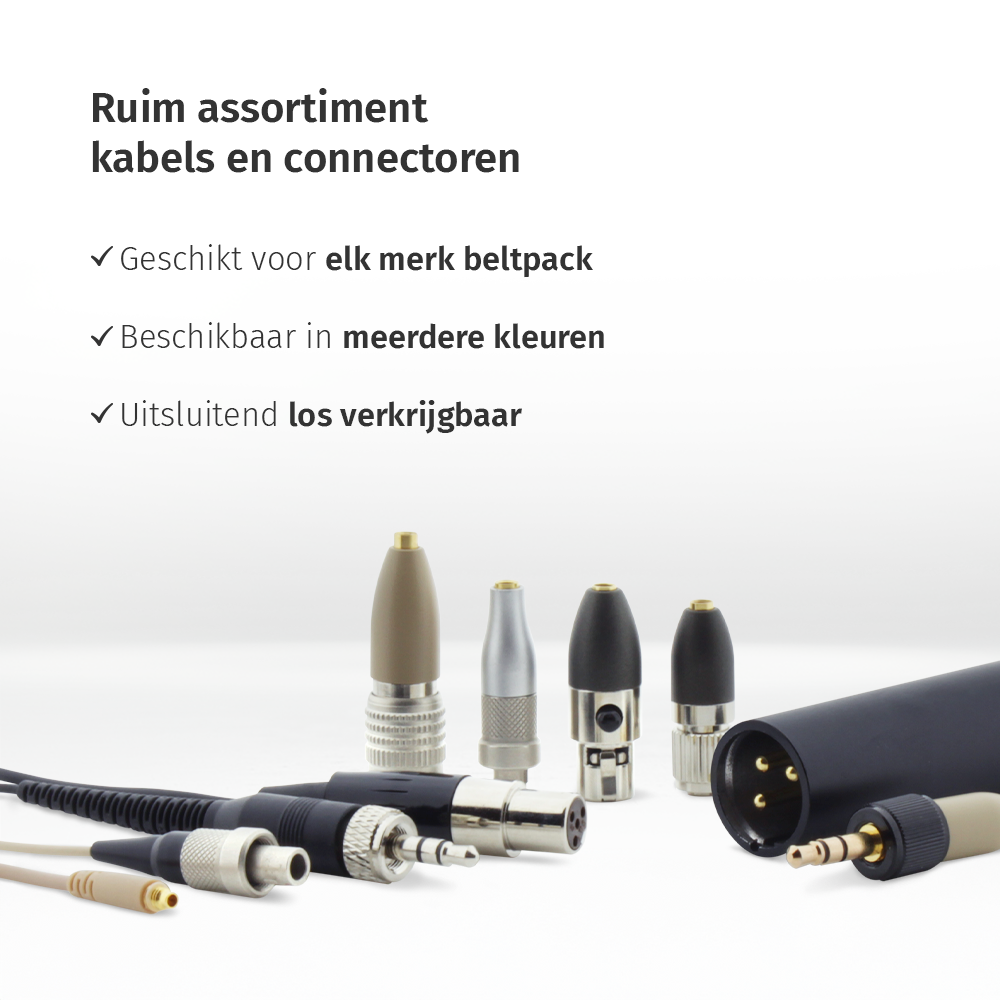

AT, AKG, Sennheiser EVO, Shure, JTS and more. Other pin assignments on request.





Read more
Cable
Connector
Cable with connector
Welcome back!
Log in if you have an account
Need help or advice? Our team is happy to assist you!
JAG microphones | 801001 | IM5A | Headset microphone | Colour: Beige

JAG microphones | IM5A |Headset microphone | beige

Just Audio Gear, abbreviated as JAG, is an Australian designer and manufacturer of microphones. They focus entirely on one product group, headset microphones, so they can guarantee optimum quality. The IM5A headset microphone targets the semi-professional market.

Very soft and very loud

JAG meets the requirements of amateur and semi-professional users with the IM5A. The 5mm capsule delivers a warm and natural sound that captures even the softest voices. With a maximum SPL of 135dB, the IM5A can also handle the overwhelming performance of voices that have yet to learn to be mastered. At the same time, the IM5A responds excellently to EQ'ing and engineers can place this microphone in the mix with confidence.

International market

JAG's headsets now have a large number of enthusiastic users in Australia and the UK. Thanks to their reliability, robustness, modest design and service-friendliness, they enjoy popularity with rental and production companies.

If you want to test the JAG Headset Microphone yourself, no problem we have several demos in stock.



Specifications

Conversion:

electret

Directional characteristic:

omni-directional

Frequency response:

20 - 20KHz

Sensitivity:

-45dB ±3dB 1V/Pa

Output impedance:

2kΩ (±30%)

Max. SPL:

135dB

Enclosure:

Φ5.0mm

Adapters:

AT, AKG, Sennheiser EVO, Shure, JTS and more. Other pin assignments on request.
