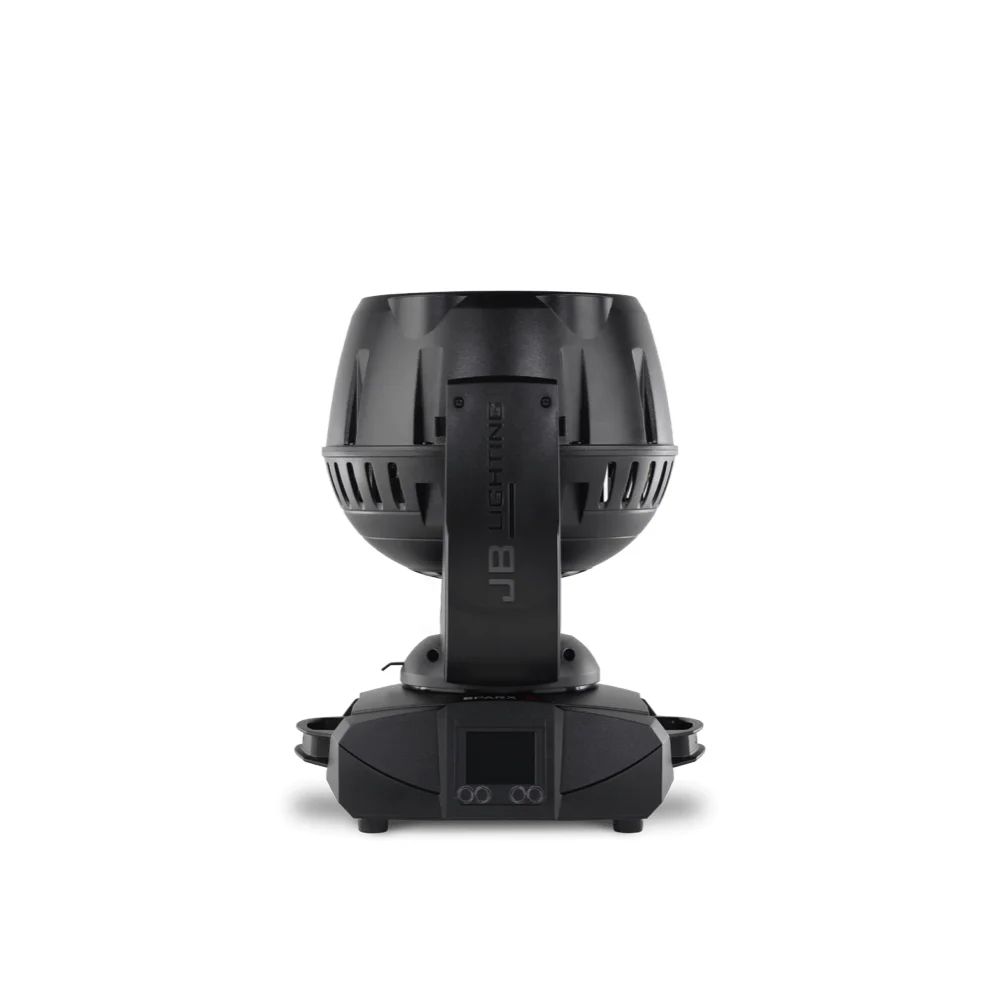

JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
Standard
€ --,--

JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG

Artikelcode VCSP121
19x 40W
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
JB-Lighting* JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG
Delivery time on request

JB-Lighting | Sparx 12 Washbeam | 19x 40W RGBW LEDs | Zoom 2.2°- 60° | 29dB(A) | 15.5kg | adjustable base colour temperature

The Sparx 12 Washbeam can be used both as a dedicated effect unit and in backlighting with individual pixels and TwinZoom function, as a high-quality wash unit with a perfectly homogeneous beam within the full zoom range of 2.2°- 60°.

Replacement for 2kW luminaires

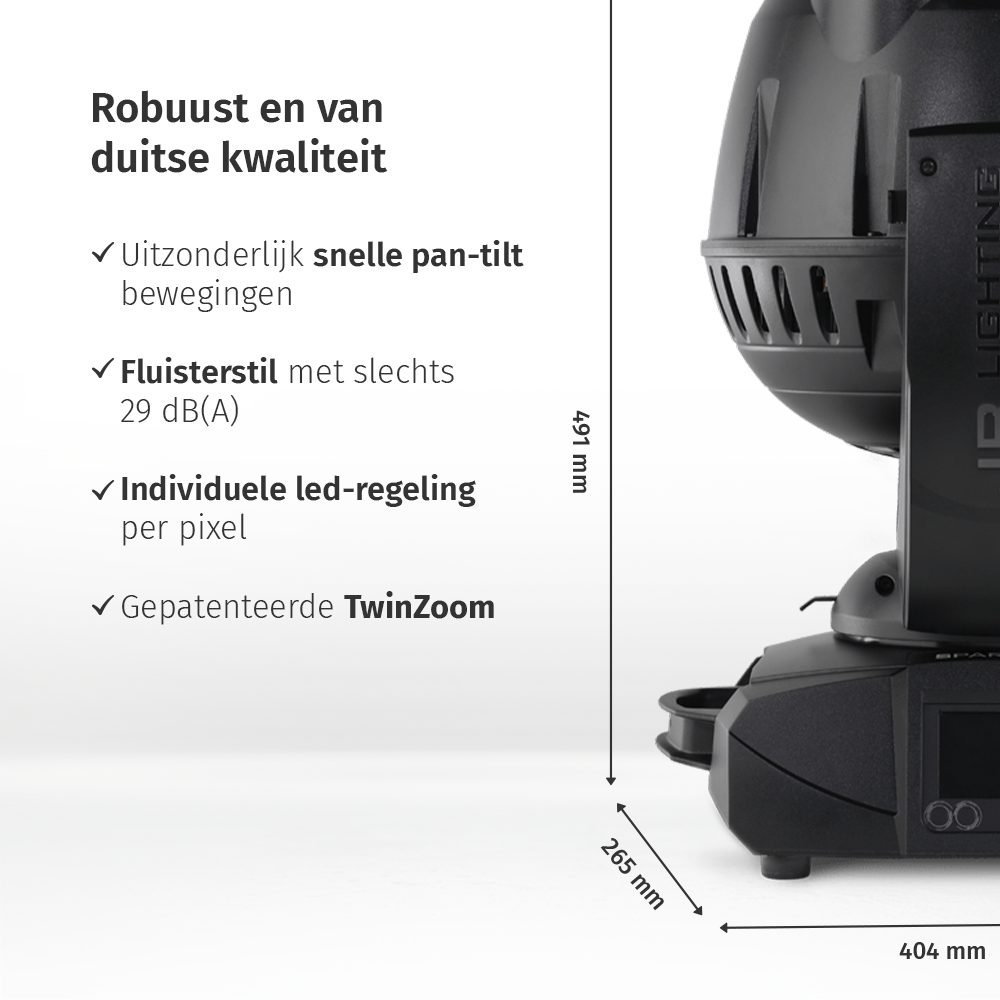

With 19x40 watts of LED power, the Sparx 12 can easily be used as a replacement for conventional 2kW spotlights in situations where colour rendering is critical. In fact, the Sparx 12 exceeds the light output of regular 2kW spots. At the same time, with a maximum height of 49cm, it is very compact and, at 15.5kg, extremely light.

Whisper-quiet heatpipe cooling

Of course, the Sparx 12 is also extremely quiet thanks to special heatpipe cooling, a feature that JB-Lighting has attached great importance to in new developments for years. The optical system of the Sparx12 guarantees perfectly homogeneous light and various multi-coloured effects based on intensity, brightness and speed that are attractive and inspiring. The Sparx 12 can also be used in TV/broadcast applications thanks to its flicker-free camera mode.

Beamshaper

As with JB-Lighting's other washbeams, a beamshaper is available for the Sparx 12, which gives the spotlight an elliptical light beam and can therefore be used in situations where rectangular objects need to be illuminated or where stage lighting is required to create a passageway or illuminate aisles: the Sparx 12 Beamshape.

Features:
  • Patented TwinZoom of 2.2°- 60° (1:27.3)
  • Optimised scattered light (hard / soft edge), homogeneous beams
  • Individual LED control per pixel
  • Sparkle channel for dynamic effects
  • Multi-layer overlay with independent patterns
  • Optimised colour mixing behaviour
  • High resolution, stepless and colour-accurate dimming from 0 -100%
  • Whisper-quiet 29dB(A)
  • Flicker-free operation, camera mode: 100, 120 and 600Hz
  • Electronic strobe with pulse and random effects.
  • Separate CTC channel
  • Selectable base colour temperature: 2,700K, 3,200K, 4,200K, 5,600K, 6,000K, 6,500K, 7,000K and 8,000K
  • Standard equipped with Lumen Radio for wireless DMX

The JB-Lighting Sparx 12 is an attractive, very compact and lightweight pixel-wash with a powerful and perfectly manipulable light beam. As a light effect, in backlighting and as a universally deployable, groundbreaking wash.

Read more
Matching beamshaper
Welcome back!
Log in if you have an account
Need help or advice? Our team is happy to assist you!
JB-Lighting | VCSP121 | Sparx 12 | Washbeam LED Movinghead | 19x40W RGBW | 29dB-A | 3° - 55° | 15.5KG

JB-Lighting | Sparx 12 Washbeam | 19x 40W RGBW LEDs | Zoom 2.2°- 60° | 29dB(A) | 15.5kg | adjustable base colour temperature

The Sparx 12 Washbeam can be used both as a dedicated effect unit and in backlighting with individual pixels and TwinZoom function, as a high-quality wash unit with a perfectly homogeneous beam within the full zoom range of 2.2°- 60°.

Replacement for 2kW luminaires

With 19x40 watts of LED power, the Sparx 12 can easily be used as a replacement for conventional 2kW spotlights in situations where colour rendering is critical. In fact, the Sparx 12 exceeds the light output of regular 2kW spots. At the same time, with a maximum height of 49cm, it is very compact and, at 15.5kg, extremely light.

Whisper-quiet heatpipe cooling

Of course, the Sparx 12 is also extremely quiet thanks to special heatpipe cooling, a feature that JB-Lighting has attached great importance to in new developments for years. The optical system of the Sparx12 guarantees perfectly homogeneous light and various multi-coloured effects based on intensity, brightness and speed that are attractive and inspiring. The Sparx 12 can also be used in TV/broadcast applications thanks to its flicker-free camera mode.

Beamshaper

As with JB-Lighting's other washbeams, a beamshaper is available for the Sparx 12, which gives the spotlight an elliptical light beam and can therefore be used in situations where rectangular objects need to be illuminated or where stage lighting is required to create a passageway or illuminate aisles: the Sparx 12 Beamshape.

Features:
  • Patented TwinZoom of 2.2°- 60° (1:27.3)
  • Optimised scattered light (hard / soft edge), homogeneous beams
  • Individual LED control per pixel
  • Sparkle channel for dynamic effects
  • Multi-layer overlay with independent patterns
  • Optimised colour mixing behaviour
  • High resolution, stepless and colour-accurate dimming from 0 -100%
  • Whisper-quiet 29dB(A)
  • Flicker-free operation, camera mode: 100, 120 and 600Hz
  • Electronic strobe with pulse and random effects.
  • Separate CTC channel
  • Selectable base colour temperature: 2,700K, 3,200K, 4,200K, 5,600K, 6,000K, 6,500K, 7,000K and 8,000K
  • Standard equipped with Lumen Radio for wireless DMX

The JB-Lighting Sparx 12 is an attractive, very compact and lightweight pixel-wash with a powerful and perfectly manipulable light beam. As a light effect, in backlighting and as a universally deployable, groundbreaking wash.

Specifications
Article codeVCSP121
SKUVCSP121
Light source type
Number of light sources
Power light source
LED-colours
Luminous flux
Color Rendering Index (CRI)
Colour temperature
Zoom type
Minimum Zoom
Maximum Zoom
Control
DMX channels
Protocols
Wireless
Dimmer
Strobe
Prism 1
Prism 2
Colour system
Dichroid colour wheel
Gobo system
Gobo wheel
Pan
Tilt
Power supply
Power consumption
Power connector in
Power connector uit
DMX Connector
Weight
IP rating
Housing
