Meanwell | LED Power Supply IP67 24 V Dali | Meanwell ELG-V-24DA 3Y

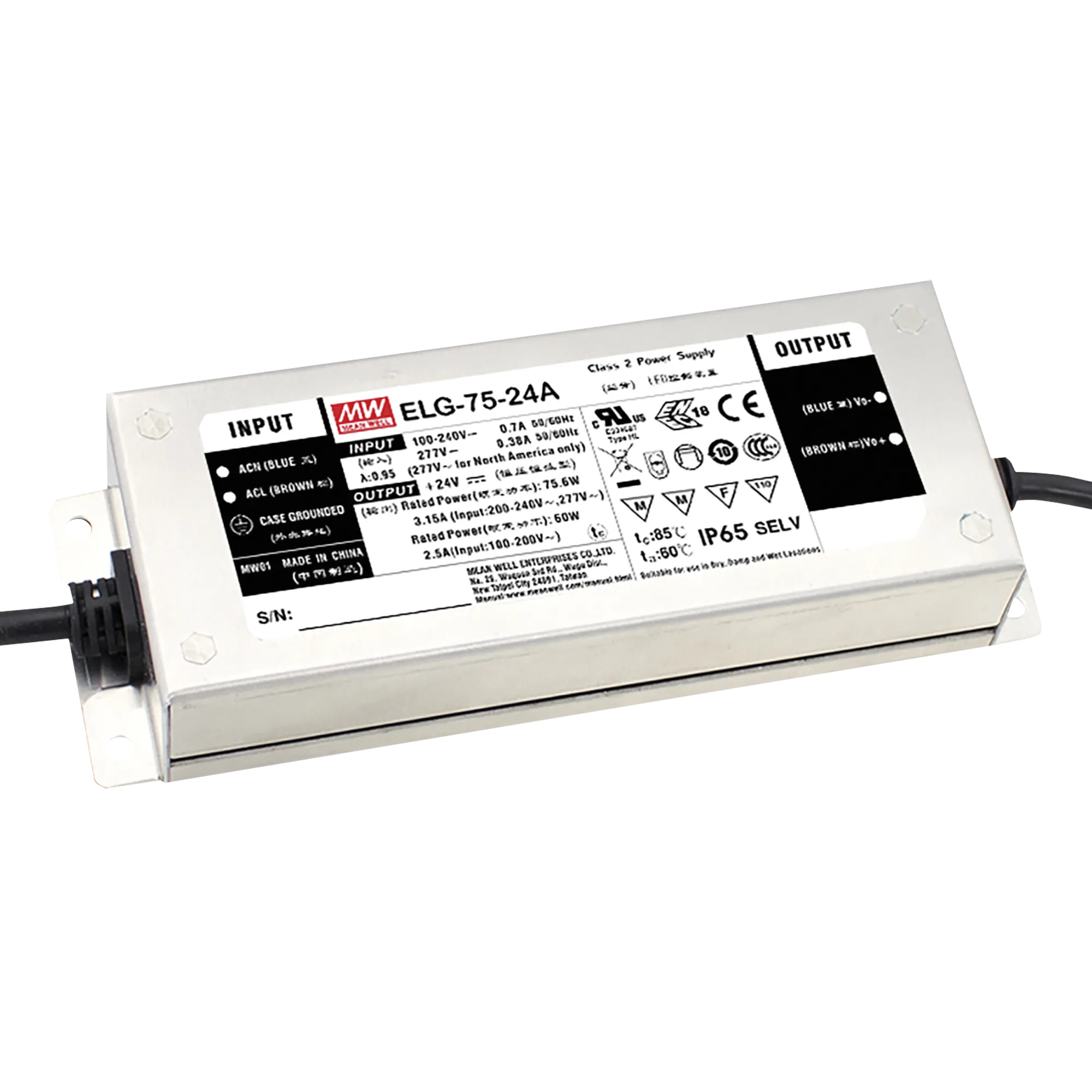

The ELG-75 series is a 75W AC/DC LED driver with dual mode constant voltage and constant current output. ELG-75 operates from 100~305 V AC at 24V. With high efficiency up to 90%, with fanless design, the whole series can operate for -40℃ ~ +85℃ housing temperature under free air convection. The metal housing design and IP67/IP65 ingress protection level allow this series to be used both indoors and outdoors. ELG-75 is equipped with various function options, such as dimming methodologies, to provide optimum design flexibility for LED lighting system.

Technical specifications
Input voltage: 100-240 VAC 50-60 Hz
Output voltage: 24 VDC
Power consumption: 75 W
Output power (A): 3 A
Protection class: II
Length (mm): 180 mm
Height (mm): 36 mm
Width (mm): 63 mm
IP rating: IP67
