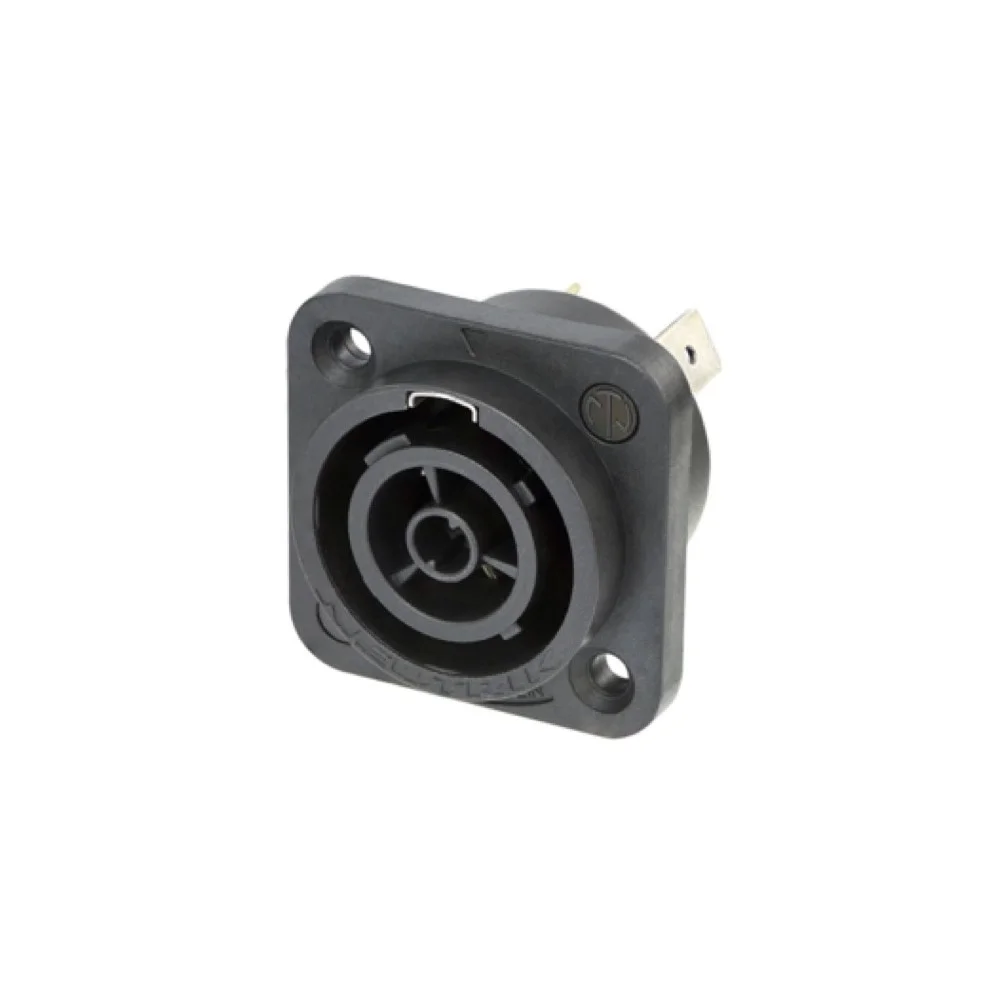

Neutrik NAC3FPX-WOT-TOP powerCON TRUE1 Panel Mount: Strong Power Connection with PCB Connection

Elevate your power connections with the Neutrik NAC3FPX-WOT-TOP powerCON TRUE1 panel mount. This quality connector with 2 pin + earth bus and PCB connection TOP guarantees a stable and reliable power supply. Ideal for outdoor applications.

Features:

• No isolation divider, 1/4" flat tab terminals
• Rated for 16A current in Europe, 20A in the US
• Durable design with locking element for extra safety
• Connector with breaking capacity (CBC), for safe connection/disconnection under load

Choose enhanced power connectivity with the Neutrik NAC3FPX-WOT-TOP powerCON TRUE1 panel mount. A robust solution for your power needs.

Technical Information:

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Res istance: > 1 GΩ (after vapour heat test)
• Number of Electrical Contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• Rating USA: UL 498: 20 A 250 V AC

Mechanical:

• Lifetime: > 5000 mating cycles
• Wire Size: 2.5 mm² (equivalent to 12 AWG)

Material:

• Contact Plating: 2 µm Silver (Ag)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)

Environmental:

• Flammability: UL 94 V-0
• Protection Class: IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with a closed cap).
• Temperature Range: -30 °C to +80 °C
• Solderability (for PCB): Complies with IEC 68-2-20
