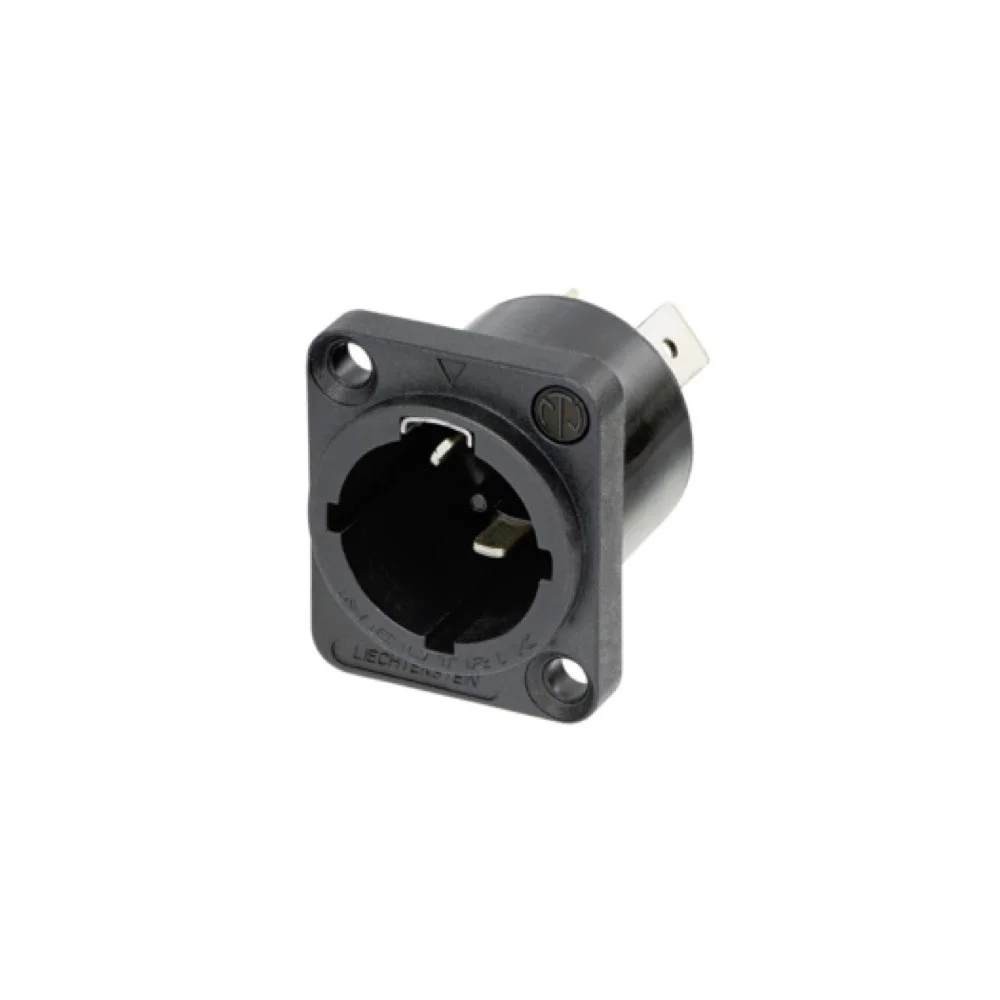

Reliable Neutrik NAC3MPX-WOT-TOP powerCON TRUE1 Connector for Outdoors

Upgrade your power connections with the Neutrik NAC3MPX-WOT-TOP powerCON TRUE1 connector. This panel-mount connector with D-shaped design and 2 pin + earth pin PCB TOP offers reliable performance for outdoor applications.

Features and Benefits:

• Rugged Power Connection: The powerCON TRUE1 TOP is a locking 16 A mains connector that replaces device connectors and provides a very rugged solution combined with a locking device for secure power connection.

• Secure Switching Capabilities: With its breaking capacity (CBC), you can connect or disconnect the connector under load or live, making it a safe and flexible choice.

• Durable Design: With a contact resistance of ≤ 2 mΩ, 4 kVdc / 2.8 kVac dielectric strength and a lifetime of over 5,000 torque cycles, this connector is designed to last.

• Optimal Current Performance: Meets European (EN 60320-1) and US (UL 498) standards for a rated current of 16 A at 250 V AC.

• Protection from Elements: With an IP65 protection rating and UL50E enclosure type 4 rating combined with SCNAC-MPX (paired or with closed cap), your power connection is protected from dust and water.

Upgrade to the Neutrik NAC3MPX-WOT-TOP powerCON TRUE1 connector for reliable and secure power connections outdoors. Rely on Neutrik's durability and quality for optimal performance.

Technical Information:

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Resistance: > 1 GΩ (after vapour heat test)
• Number of Electrical Contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• Rating USA: UL 498: 20 A 250 V AC

Mechanical:

• Lifetime: > 5000 mating cycles
• Wire Size: 2.5 mm² (equivalent to 12 AWG)

Material:

• Contact Plating: 2 µm Silver (Ag)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)

Environmental:

• Flammability: UL 94 V-0
• Protection Class: IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with a closed cap).
• Temperature Range: -30 °C to +80 °C
• Solderability (for PCB): Complies with IEC 68-2-20

Upgrade now to the Neutrik NAC3MPX-WOT-TOP powerCON TRUE1 connector for reliable outdoor power connections. Rely on Neutrik quality for high-performance power connectivity.
