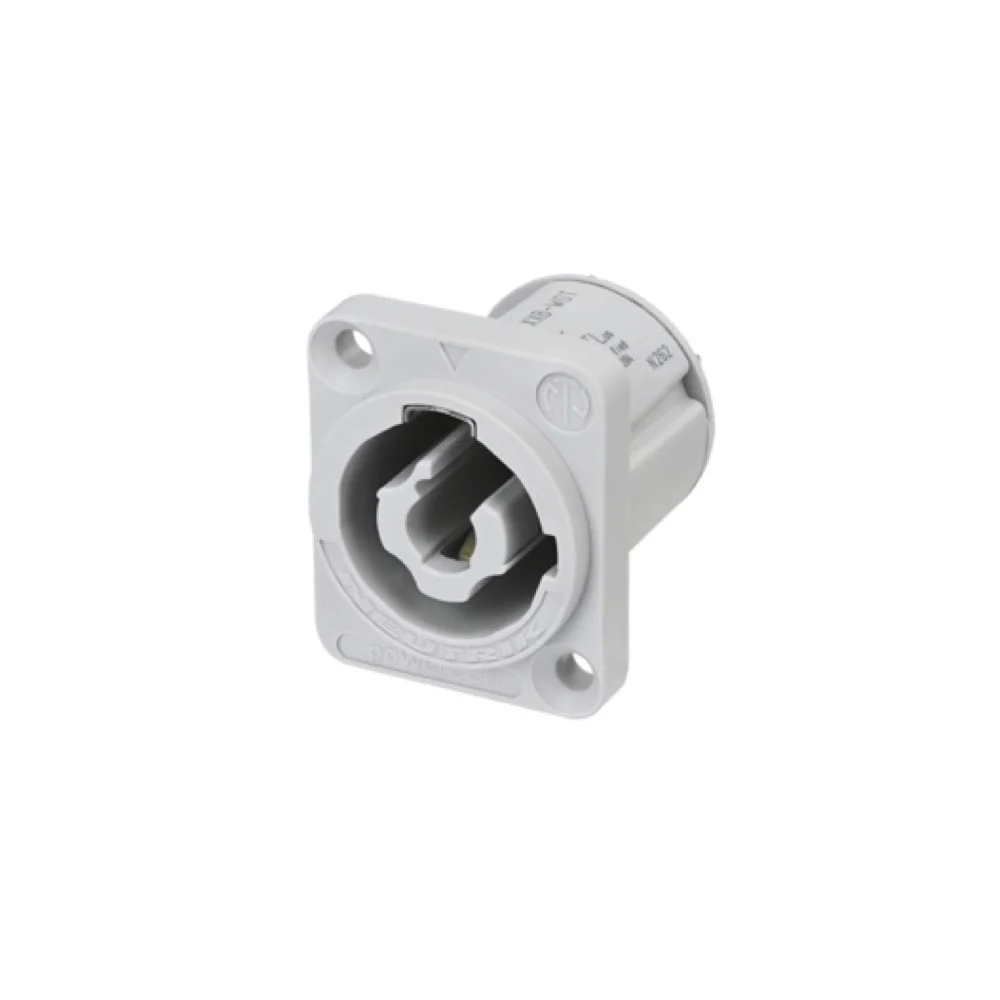

Reliable Power Connection with Neutrik NAC3MPXXB-WOT powerCON 20A Connector

Upgrade your power connections with the Neutrik NAC3MPXXB-WOT powerCON 20A connector. This panel-mount connector with D-shaped chassis and 2p+PE socket in grey offers a reliable solution for power connections.

Features and Benefits:

• IEC 62368-1 Compliance: This connector fully complies with the IEC 62368-1 standard thanks to component certification according to IEC 60320-1.

• Reliable Power Connection: Designed as a locking mains connector, the powerCON XX replaces device connectors where a highly reliable solution combined with a locking device is needed for secure power connections.

• Secure Switching Capabilities: With its breaking capacity (CBC), you can connect or disconnect the connector under load or live, providing additional safety and flexibility.

• Durable Design: With specifications such as a contact resistance of ≤ 2 mΩ, 4 kVdc / 2.8 kVac dielectric strength and a lifetime of over 5,000 torque cycles, this connector is built to last.

Upgrade to the Neutrik NAC3MPXXB-WOT powerCON 20A connector for reliable power connections. Rely on Neutrik's high-quality materials and safety features for optimum performance.

Technical Information:

Product:

• Title: NAC3MPXXB-WOT
• Gender: Male

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Res istance: > 10 GΩ (initial)
• Number of Electrical Contacts: 2 + PE
• Rating Europe:
  • EN 60320-1: 16 A 250 V AC
  • EN 61984: 20 A 250 V AC
• Rating USA:
  • UL 60320-1: 20 A 127 V AC
  • UL 1977: 20 A 250 V AC

Mechanical:

• Lifetime: > 5000 mating cycles
• Wire Size: 2.5 mm² (equivalent to 12 AWG)

Material:

• Contact Plating: Silver (Ag)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy

Environmental:

• Flammability: UL 94 V-0
• Temperature Range: -30 °C to +80 °C
• Protection Class: IP 20
• Solderability (for PCB): Complies with IEC 68-2-20

Upgrade now to the Neutrik NAC3MPXXB-WOT powerCON 20A connector for reliable power connections. Rely on Neutrik for high-quality connectivity solutions.
