Neutrik | NC10MRX-14-B | XLR cable section angled 10-pin black housing gold contacts RX

Neutrik | NC10MRX-14-B | XLR cable section angled 10-pin pin black housing gold contacts RX

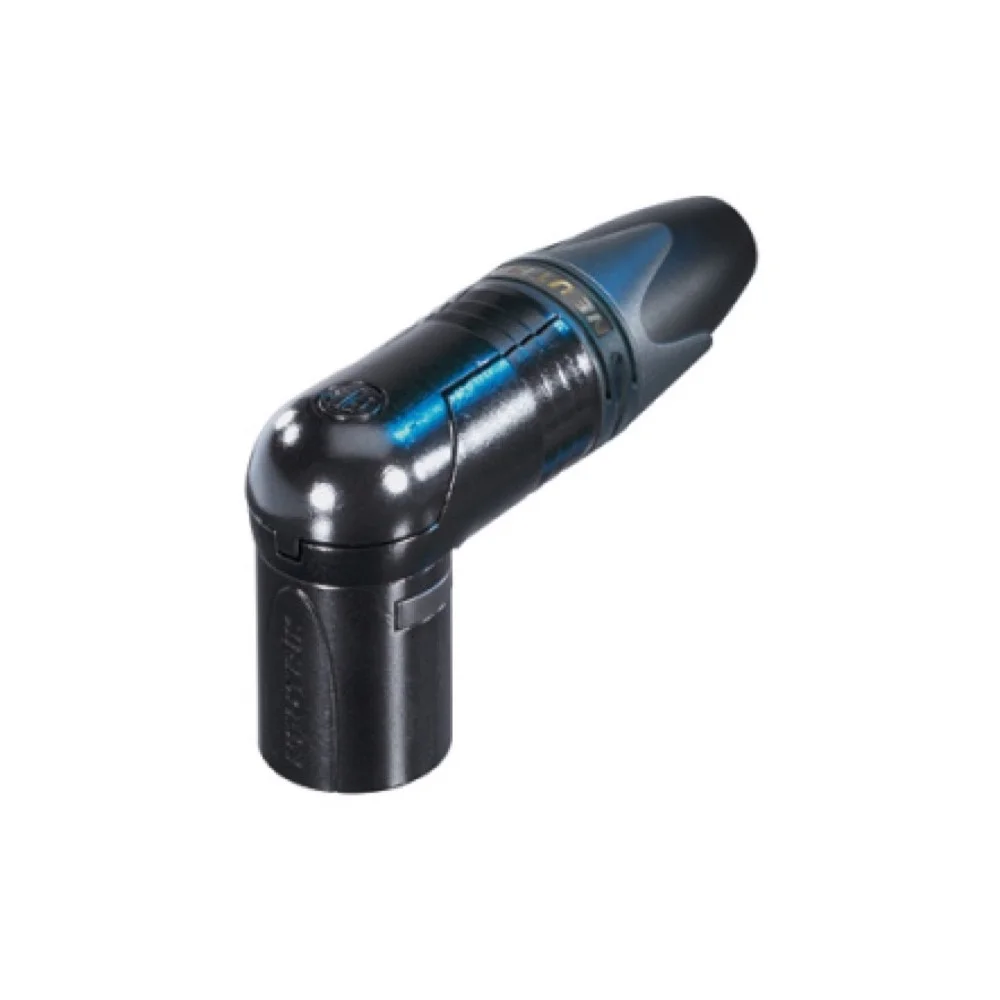

High-quality Neutrik NC10MRX-14-B XLR Cable Section Angled 10-Pin with Black Housing and Gold Contacts RX

Are you looking for a top-quality, reliable and easy-to-install XLR cable connector? Look no further than the Neutrik NC10MRX-14-B. Designed to meet the demands of professional audio and video applications, this high-quality cable part offers excellent performance and durability.

Features:

• Easy Assembly: The Neutrik NC10MRX-14-B is easy to assemble, even for users without extensive technical experience. Thanks to the proven Neutrik chuck-type strain relief system, you can count on a safe and secure connection.

• High-quality Construction: The black chrome metal housing not only provides a sleek look, but also offers durability and protection for the internal components. This product is built to last, even in demanding environments.

• Reliable Electrical Performance: With a contact resistance of less than 3 mΩ and a dielectric strength of 1 kVdc, you can rely on stable signal transmission. The gold-plated RX-type contacts provide excellent conductivity and minimise signal loss.

• Versatile Applications: With 8 + 2 electrical contacts, this connector is suitable for both power and data applications. The current pins can handle a rated current of 16 A, while the data pins can handle up to 3 A. The choice of connecting the cable shield to the housing offers flexibility in your designs.

• Robust Mechanical Performance: The NC10MRX-14-B is built to perform. With a lifetime of more than 1,000 torque cycles and mechanical properties such as insertion and tensile strength of less than 20 N, you can count on consistent operation.

• Excellent Materials: From brass contacts with a durable gold-plated finish to a black chrome-plated zinc alloy housing, the materials used have been carefully selected for optimum performance and longevity.

Whether you are engaged in audio, video or other professional applications, the Neutrik NC10MRX-14-B is the perfect choice for your projects. With its high-quality construction, reliable electrical performance and versatility, you can be confident that your connections will remain stable and consistent.

Product Information:

• Title: NC10MRX-14-B
• Connection Type: XLR
• Gender: Male

Electrical Information:

• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 1 kVdc
• Insulation Resistance:
  • Initial: > 10 GΩ
  • After Damp Heat Test: 0.1
• Number of Electrical Contacts: 8 + 2
• Rated Current Per Contact:
  • Power Pins: 16 A
  • Data Pins: 3 A
• Cable Shield - Shell Connection: Choosable
• Transmission Performance: CAT 5e

Mechanical Information:

• Cable O.D. (Outer Diameter): 8.0 - 10.0 mm
• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire Size:
  • Power Pins: 2.5 mm² / AWG 14
  • Data Pins: 1 mm² / AWG 18
• Material:
  • Bushing: PA / PU
  • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PA66
  • Locking Element: Zinc Diecast (ZnAl4Cu1)
  • Shell: Zinc Diecast (ZnAl4Cu1)
  • Shell Plating: Black Chromium
  • Strain Relief: POM

Environmental Information:

• Flammability: UL 94 V-0
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30 °C to +80 °C
• Manufacturing standard: IEC 61076-2-103

Add the Neutrik NC10MRX-14-B to your project and experience reliable performance and durability as only Neutrik can deliver. Prepare for smooth and stable signal transmission in your audio and video connections with this high-quality XLR cable section. Order today and make your connections stronger than ever before!
