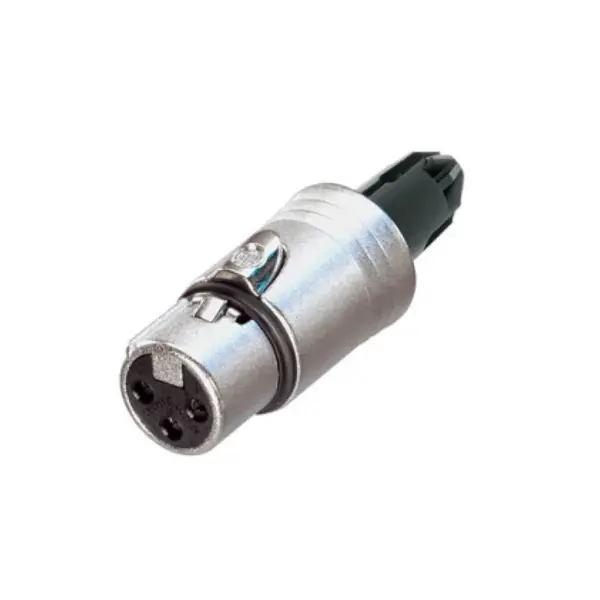

Neutrik | NC3FXX-WOB | XLR cable section 3 pin socket nickel housing silver contacts XX no grommet

Neutrik | NC3FXX-WOB | XLR cable section 3 pin socket nickel housing silver contacts XX no grommet

Product description:

The 3-pin female cable connector with nickel housing and silver contacts, without grommet. The grommet must be ordered separately.

The next generation of the globally accepted standard for XLR cable connectors. The successor to the X-series offers several new features that make it more reliable, easier to mount and improve contact integrity and cable strain relief.

Product Information:

• Title: NC3FXX-WOB
• Connection Type: XLR
• Gender: Female

Electrical Information:

• Capacitance Between Contacts: ≤ 4 pF
• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance: > 10 GΩ (initial)
• Rated Current Per Contact: 16 A
• Rated Voltage: < 50 V

Mechanical Information:

• Cable O.D. (Outer Diameter): 3.5 - 8.0 mm
• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire Size: max. 2.5 mm², max. 14 AWG
• Wiring: Solder Contacts
• Locking Device: Latch Lock

Material Information:

• Boot: Polyurethane
• Contact Plating: 2 µm Ag (Silver)
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA66)
• Locking Element: Zinc Diecast (ZnAl4Cu1) / Ck 67 (Spring)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Plating: Nickel
• Strain Relief: Polyacetal (POM)

Environmental Information:

• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30°C to +80°C
