Discover the Neutrik NC3FXX XLR Cable Part - Reliable Connection with Nickel Housing and Silver Contacts XX

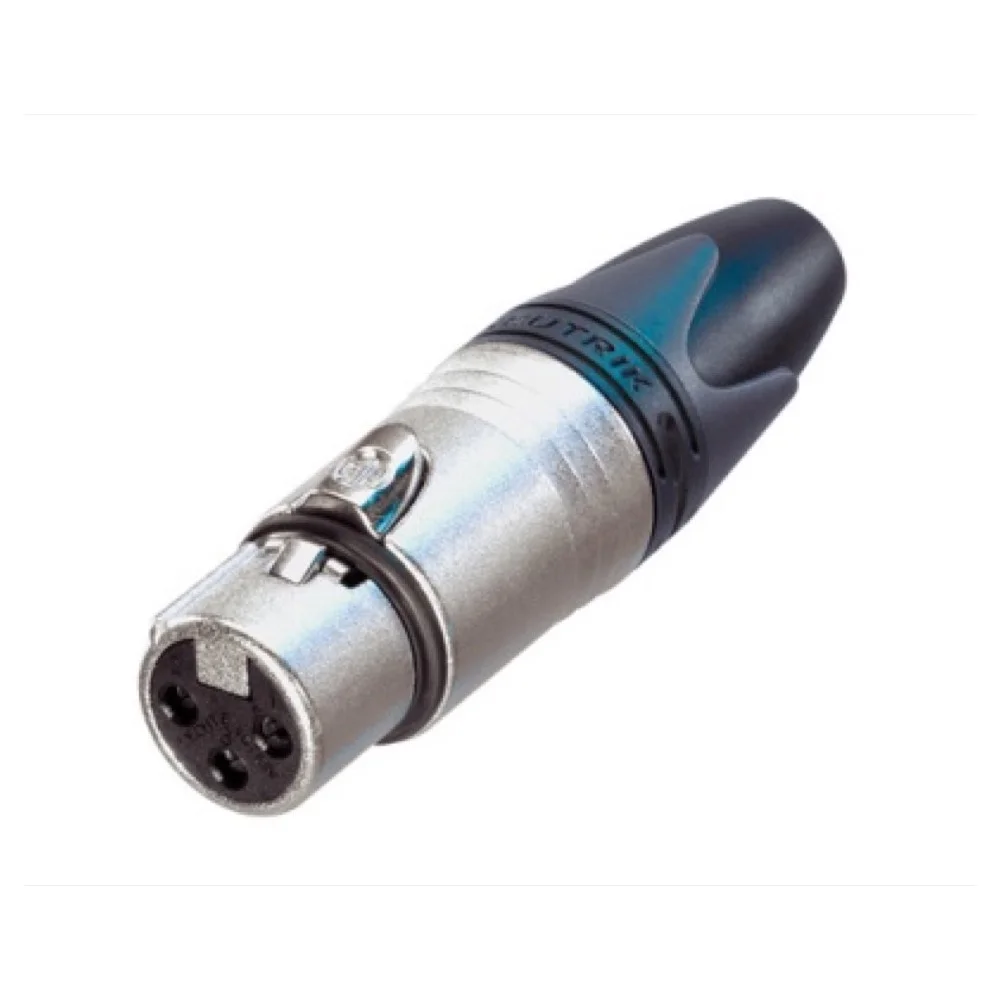

Meet the Neutrik NC3FXX XLR cable section - the next generation in the globally recognised standard for XLR cable connectors. The successor to the X-series, the NC3FXX offers improvements that ensure a more reliable connection, easier mounting and improved contact integrity, along with effective cable strain relief.

Features:

• Advanced Performance: This 3-pole female cable connector with nickel housing and silver contacts offers outstanding performance for professional audio and video applications.

• Enhanced Reliability: The NC3FXX builds on the heritage of the X-series and introduces new features that take reliability and durability to the next level.

• Easy Assembly: The updated design makes assembly easier than ever before, while maintaining a strong and secure connection.

• Optimal Contact Integrity: XX-series silver contacts provide excellent conductivity and minimise signal loss, resulting in crystal-clear audio performance.

• Durable Construction: With a robust nickel housing and polyamide insert, the NC3FXX is designed to withstand long-term use, even under demanding conditions.

• Secure Cable Stress Relief: The added cable stress relief helps extend the life of your cables and ensures a sturdy and reliable connection.

Product Information:

• Title: NC3FXX
• Connection Type: XLR
• Gender: Female

Electrical Information:

• Capacitance Between Contacts: ≤ 4 pF
• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance: > 10 GΩ (initial)
• Rated Current Per Contact: 16 A
• Rated Voltage: < 50 V

Mechanical Information:

• Cable O.D. (Outer Diameter): 3.5 - 8.0 mm
• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire Size: max. 2.5 mm², max. 14 AWG
• Locking Device: Latch Lock

Material Information:

• Boot: Polyurethane
• Contact Plating: 2 µm Ag (Silver)
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA66)
• Locking Element: Zinc Diecast (ZnAl4Cu1) / Ck 67 (Spring)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Plating: Nickel
• Strain Relief: Polyacetal (POM)

Environmental Information:

• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30°C to +80°C

Upgrade your audio and video applications with the Neutrik NC3FXX XLR cable section. With its advanced performance, reliable construction and enhanced features, this connector offers a seamless connection for professional applications. Order now and experience the benefits of Neutrik quality in your connections!
