Product description:

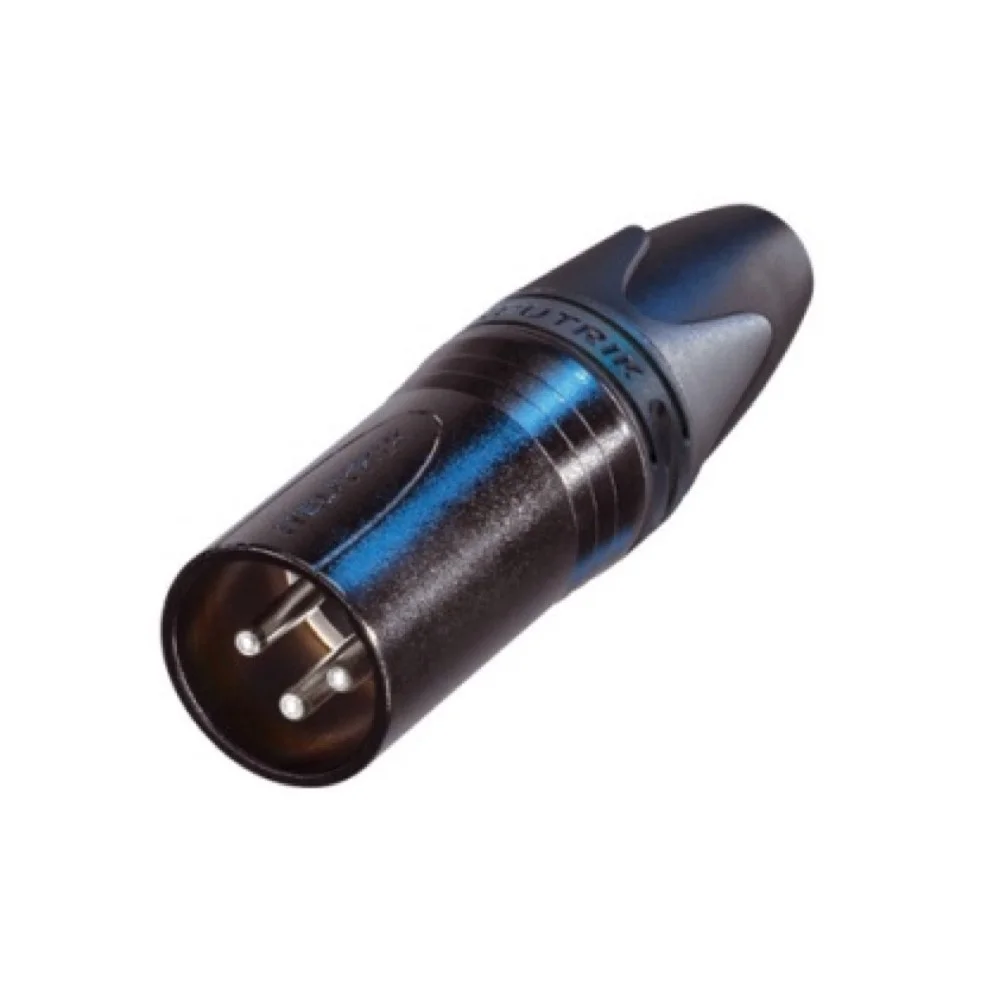

The Neutrik NC3MXX-BAG is a 3-pin male XLR cable connector with a black metal housing and silver contacts.

This is the next generation of the globally accepted standard for XLR cable connectors. The successor to the X-series offers several new features that make it more reliable, easier to mount and improve contact integrity and cable strain relief.

Product Information:

• Title: NC3MXX-BAG
• Connection Type: XLR
• Gender: Male

Electrical Information:

• Capacitance Between Contacts: ≤ 4 pF
• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance:
  • Initial: > 10 GΩ
• Rated Current Per Contact: 16 A
• Rated Voltage: < 50 V

Mechanical Information:

• Cable O.D. (Outer Diameter): 3.5 - 8.0 mm
• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire Size:
  • Max. 2.5 mm²
  • Max. 14 AWG
• Wiring: Solder Contacts
• Locking Device: Latch Lock

Material Information:

• Boot: Polyurethane
• Contact Plating: 2 µm Ag
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA66)
• Locking Element: Zinc Diecast (ZnAl4Cu1)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Coating: Black KTL
• Strain Relief: Polyacetal (POM)

Environmental Information:

• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30 °C to +80 °C
