Neutrik | NC4FXX-B | XLR cable section 4-pin socket black housing gold contacts XX

Neutrik | NC4FXX-B | XLR cable section 4 pin socket black housing gold contacts XX

Product description:

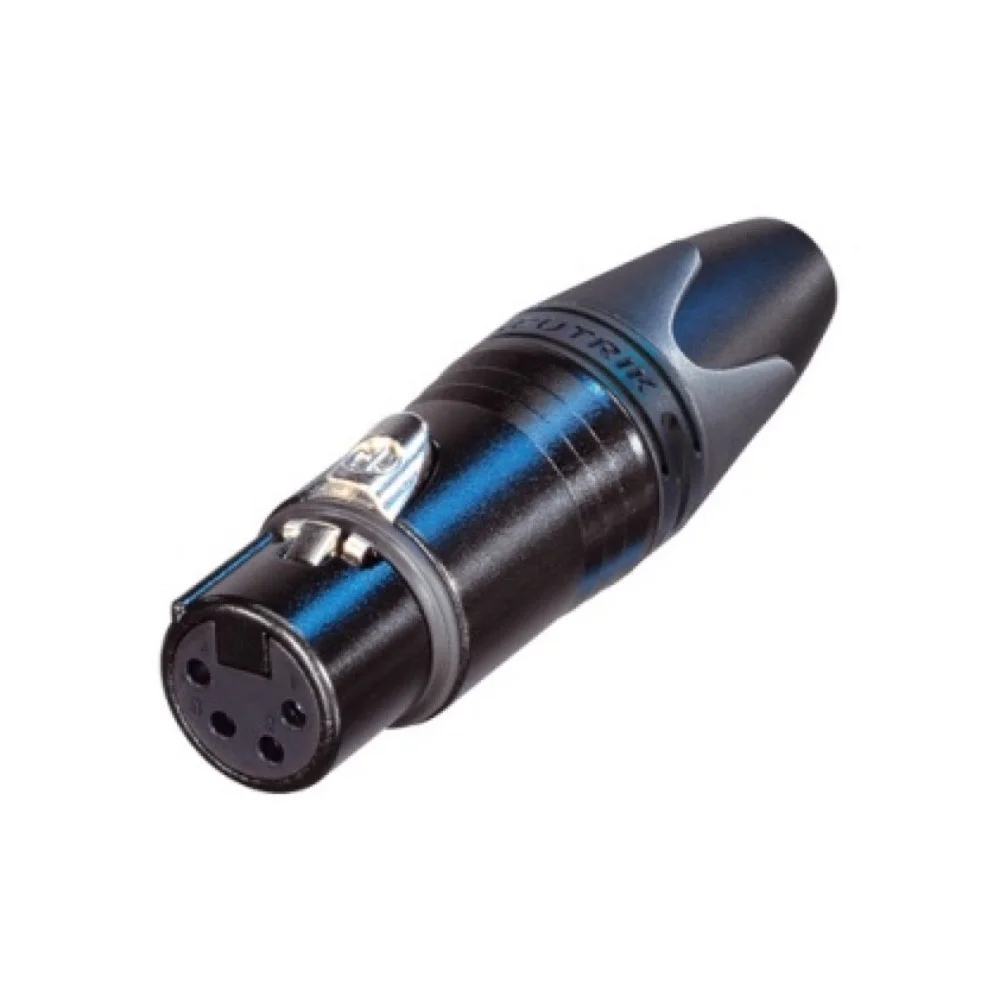

The 4-pin female cable connector with a black metal housing and gold-coloured contacts.

The next generation of the globally accepted standard for XLR cable connectors. The successor to the X-series offers several new features that make it more reliable, easier to mount and improve contact integrity and cable strain relief.

Product Information:

• Title: NC4FXX-B
• Connection Type: XLR
• Gender: Female

Electrical Information:

• Capacitance Between Contacts: ≤ 7 pF
• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance: > 10 GΩ (initial)
• Rated Current Per Contact: 10 A
• Rated Voltage: < 50 V

Mechanical Information:

• Cable O.D. (Outer Diameter): 3.5 - 8.0 mm
• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire Size: Max. 1.5 mm², Max. 16 AWG
• Wiring: Solder Contacts
• Locking Device: Latch Lock

Material Information:

• Boot: Polyurethane
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA66)
• Locking Element: Zinc Diecast (ZnAl4Cu1) / Ck 67 (Spring)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Coating: Black KTL
• Strain Relief: Polyacetal (POM)

Environmental Information:

• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30°C to +80°C
