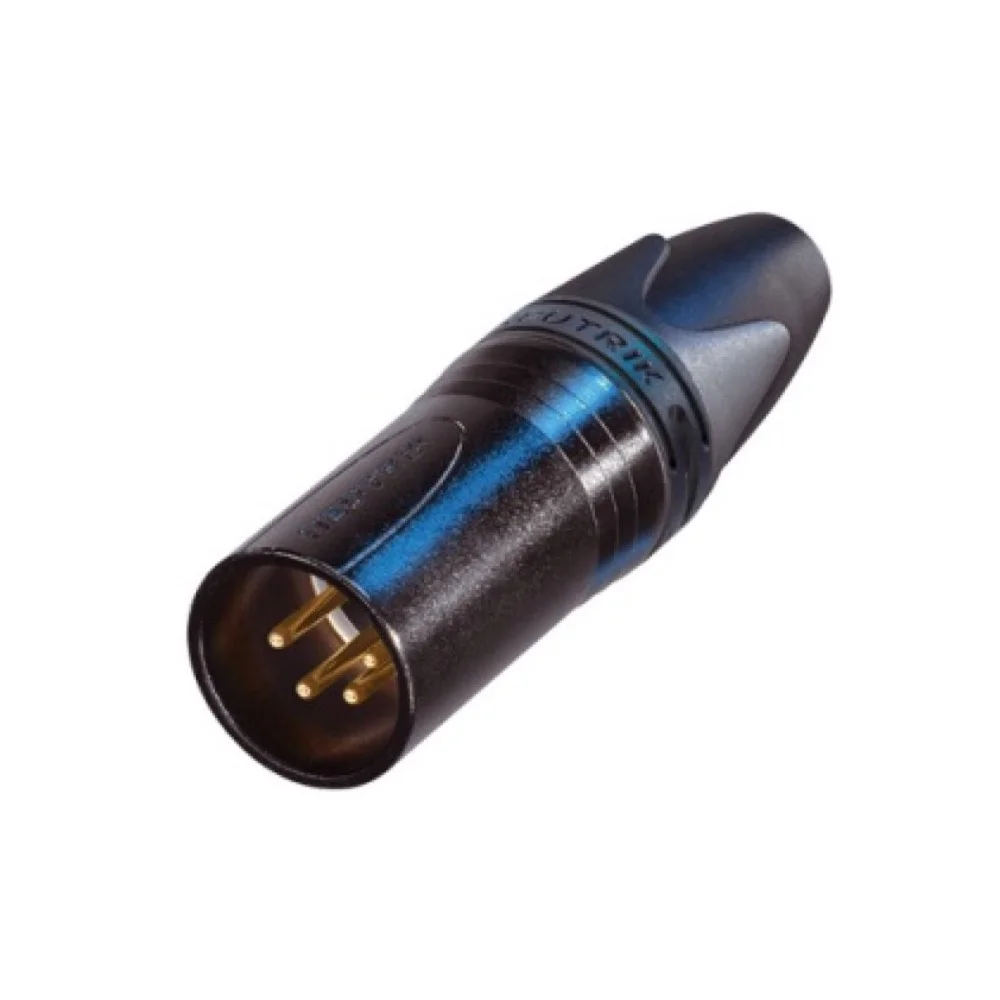

Neutrik | NC4MXX-B | XLR cable section 4 pin pin black housing gold contacts XX

Neutrik | NC4MXX-B | XLR cable section 4 pin pin black housing gold contacts XX

The Neutrik NC4MXX-BAG represents the next generation in the globally accepted standard of XLR cable connectors. The successor to the X-series, this connector is not only more reliable but also easier to install and offers improved contact integrity and cable voltage illumination.

Distinctive & Durable Design

With its black metal housing and silver contacts, this 4-pole male cable connector combines both aesthetics and durability. The housing is made of sturdy zinc casting (ZnAl4Cu1) with a black KTL coating, while the contacts are made of brass (CuZn39Pb3), ensuring long-lasting and reliable performance.

Technical Superiority

The NC4MXX-BAG shines in technical specifications:

• Electrical: With a capacitance between contacts of ≤ 7 pF and a contact resistance of ≤ 3 mΩ, it is designed for optimum performance. The connector can handle a voltage of < 50 V and a current per contact of 10 A, and can withstand temperatures from -30 °C to +80 °C.
• Mechanical: Suitable for cable diameters of 3.5 - 8.0 mm, the connector guarantees more than 1,000 coupling cycles, making it ideal for regular use. In addition, the locking device with locking pawl ensures a safe and reliable connection.
• Environment: The NC4MXX-BAG complies with the IEC 61076-2-103 standard and has a flammability rating of UL 94 V-0.

Whether you are a Megalight professional or someone looking for a reliable cable connector for everyday use, the Neutrik NC4MXX-BAG with 4 pins is the perfect choice. Order now and experience the difference of quality and reliability!

Product Information:

• Title: NC4MXX-B
• Connection Type: XLR
• Gender: Male

Electrical Information:

• Capacitance Between Contacts: ≤ 7 pF
• Contact Resistance: ≤ 3 mΩ
• Dielectric Strength: 1.5 kVdc
• Insulation Resistance:
  • Initial: > 10 GΩ
• Rated Current Per Contact: 10 A
• Rated Voltage: < 50 V

Mechanical Information:

• Cable O.D. (Outer Diameter): 3.5 - 8.0 mm
• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wire Size:
  • Max. 1.5 mm²
  • Max. 16 AWG
• Wiring: Solder Contacts
• Locking Device: Latch Lock

Material Information:

• Boot: Polyurethane
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA66)
• Locking Element: Zinc Diecast (ZnAl4Cu1)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Coating: Black KTL
• Strain Relief: Polyacetal (POM)

Environmental Information:

• Flammability: UL 94 V-0
• Standard Compliance: IEC 61076-2-103
• Protection Class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature Range: -30 °C to +80 °C
