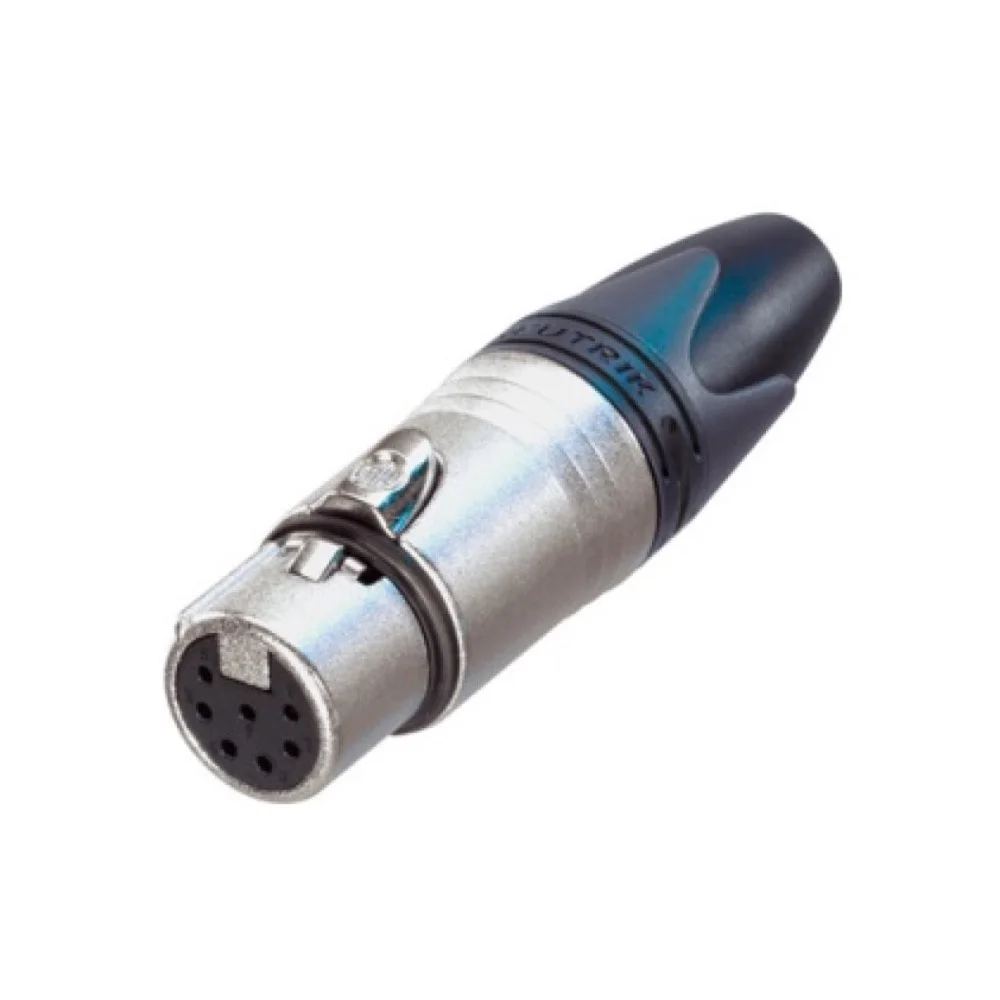

Neutrik | NC7FXX | XLR cable section 7 pin socket nickel housing silver contacts XX
€ --,--
Add your review
Neutrik | NC7FXX | XLR cable section 7 pin socket nickel housing silver contacts XX
Neutrik | NC7FXX | XLR cable section 7 pin socket nickel housing silver contacts XX
Article code NC7FXX
7-14 business days
Neutrik NC7FXX: 7-pin XLR cable section with nickel housing and silver contacts, ideal for professional audio applications. Read more
Description
Neutrik | NC7FXX | XLR cable section 7 pin socket nickel housing silver contacts XX
Product description:
The 7-pin female cable connector with nickel housing and silver contacts.
The next generation of the globally accepted standard for XLR cable connectors. The successor to the X-series offers several new features that make it more reliable, easier to mount and improve contact integrity and cable strain relief.
Product Information:
- Title: NC7FXX
- Connection Type: XLR
- Gender: Female
Electrical Information:
- Capacitance Between Contacts: ≤ 9 pF
- Contact Resistance: ≤ 3 mΩ
- Dielectric Strength: 1.5 kVdc
- Insulation Resistance:
- Initial: > 10 GΩ
- Rated Current Per Contact: 5 A
- Rated Voltage: < 50 V
Mechanical Information:
- Cable O.D. (Outer Diameter): 3.5 - 8.0 mm
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wire Size:
- Max. 1.0 mm²
- Max. 18 AWG
- Wiring: Solder Contacts
- Locking Device: Latch Lock
Material Information:
- Boot: Polyurethane
- Contact Plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking Element: Zinc Diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: Zinc Diecast (ZnAl4Cu1)
- Shell Plating: Nickel
- Strain Relief: Polyacetal (POM)
Environmental Information:
- Flammability: UL 94 HB
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -30 °C to +80 °C
