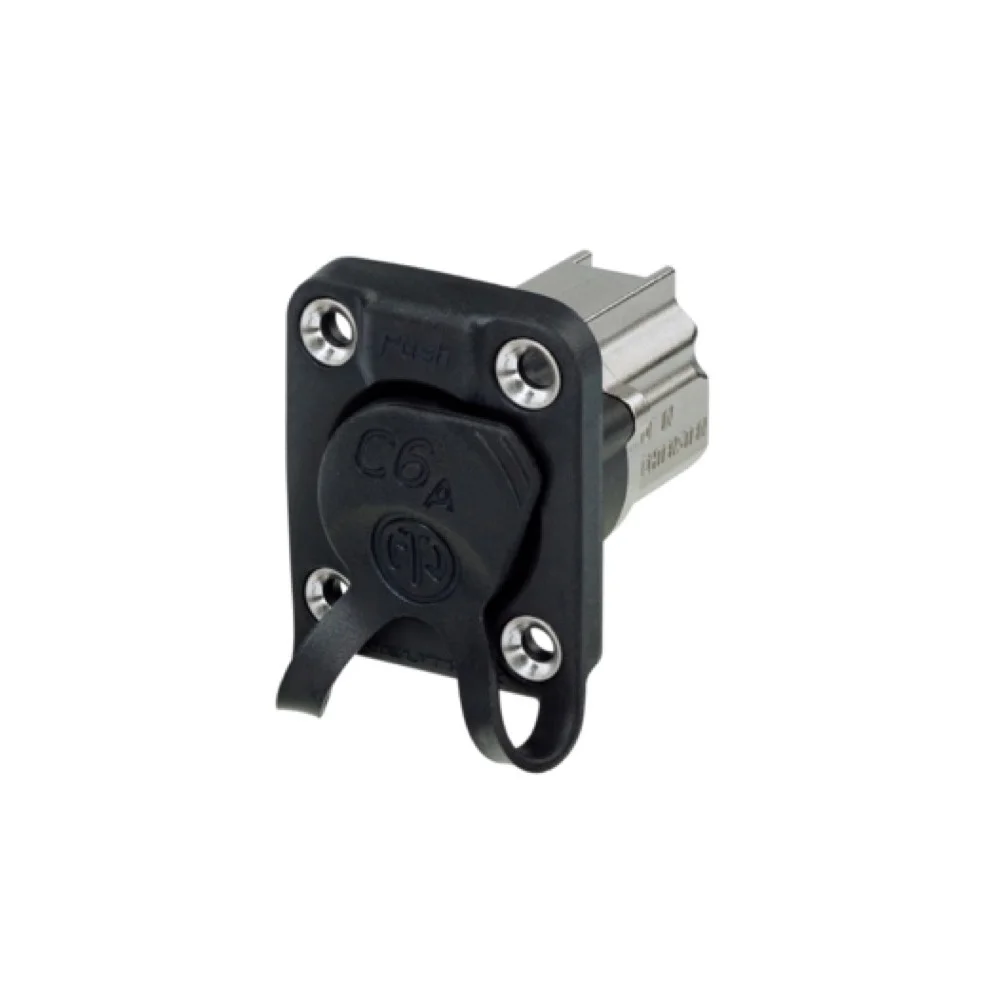

Neutrik NE8FDX-P6-W EtherCON CAT6A IP65 D-shape RJ45 Connector - Black

The Neutrik NE8FDX-P6-W is a high-quality D-shape CAT6A panel connector with shielding and feed-through capability. This connector features a rubber seal for IP65 water resistance when mating. The black housing offers durability and stylish aesthetics.

Technical Information:

• Product Title: NE8FDX-P6-W
• Gender: Female

Electrical:

• Dielectric Strength: 1 kVdc
• Insulation Resistance: > 0.5 GΩ
• Rated Current Per Contact: 1.5 A
• Transmission Performance: CAT6A, according to TIA/EIA rating and Class EA, according to IEC/ISO/EN rating
• Power Over Ethernet: PoE++ according to IEEE 802.3bt

Mechanical:

• Lifetime: > 1000 mating cycles
• Wiresize:
  • Wiring: Feedthrough
• Locking Device: Latch lock
• Mounting Direction: Front mounting

Material:

• Contact Plating: Au (Gold)
• Gasket: Rubber (EPDM)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Coating: Black KTL

Environmental:

• Flammability: UL 94 V-0 (not applicable for the rubber sealing)
• Protection Class: IP 65
• Temperature Range: -40 °C to +70 °C

Caution! This connector is not compatible with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

The Neutrik NE8FDX-P6-W provides reliable and secure Ethernet connectivity even in challenging environments where water resistance is essential. With its durable construction and excellent performance characteristics, this connector is ideal for professional audio, video and data applications.
