Neutrik | NE8MX6 | etherCON CAT6A IP65 cable connector nickel insulation wire d>1.1mm
New possibilities with Neutrik NE8MX6: Discover the power of the etherCON CAT6A IP65 cable connector with nickel insulation for wires larger than 1.1mm. Achieve reliable CAT6A performance with durable IP65 protection, ideal for demanding environments. Read more
Neutrik | NE8MX6 | etherCON CAT6A IP65 cable connector nickel insulation wire d>1.1mm

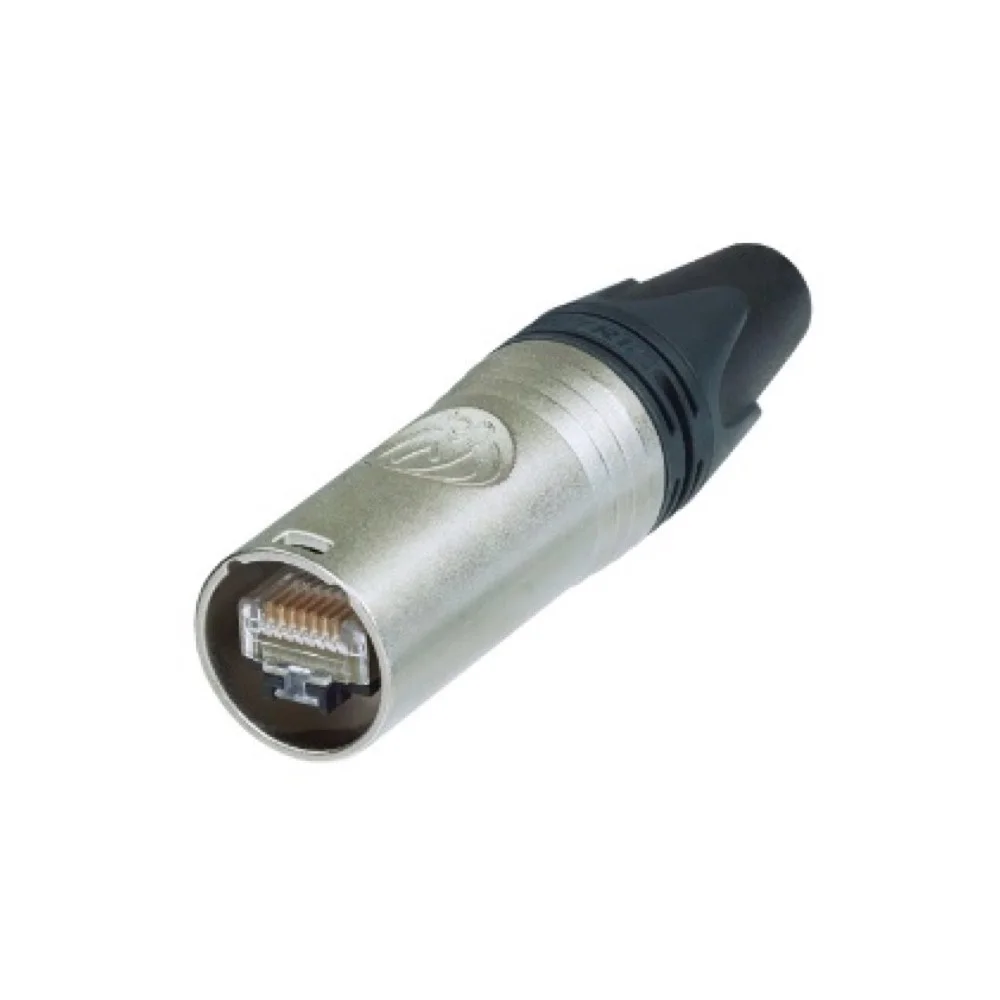

Neutrik NE8MX6 EtherCON CAT6A IP65 Cable Connector - Reliable Connections for Demanding Environments
The Neutrik NE8MX6 EtherCON CAT6A cable connector is the perfect choice for those requiring robust and reliable connections. Designed specifically for insulation diameters greater than 1.1 mm, this self-terminating connector offers nickel plating for optimum performance.
Features:
- etherCON CAT6A cable connector with self-termination.
- Suitable for insulation diameters > 1.1 mm with nickel plating.
- Robust metal housing and Neutrik chuck-type strain relief.
- CAT6A compliant RJ45 plug for high-quality performance.
- Suitable for cable diameters from 7 mm to 9.5 mm and wire thicknesses of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).
The NE8MX6 set provides durable connectivity even in challenging conditions. Please note that this connector is not compatible with CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
If the insulation diameter is ≤ 1.1 mm, please refer to NE8MX6-T.
Technical Information:
- Product Title: NE8MX6
- Gender: Male
Electrical:
- Dielectric Strength: 1 kVdc
- Insulation Resistance: > 0.5 GΩ
- Rated Current Per Contact: 1.5 A
- Transmission Performance: CAT6A, according to TIA/EIA rating and IEC/ISO/EN rating
- Power Over Ethernet: PoE++ according to IEEE 802.3bt
Mechanical:
- Cable O.D. (Outer Diameter): 7.0 - 9.5 mm
- Lifetime: > 1000 mating cycles
- Wiresize:
- AWG 24/1 - AWG 22/1 (solid)
- AWG 24/7 - AWG 22/7 (stranded)
- Locking Device: Latch lock
- Insulation Diameter: 1.1 - 1.6 mm
Material:
- Bushing: PA (Polyamide) / PU (Polyurethane)
- Contact Plating: Au (Gold)
- Shell: Zinc Diecast (ZnAl4Cu1)
- Shell Plating: Nickel
- Strain Relief: POM (Polyoxymethylene)
Environmental:
- Protection Class: IP 65 (in combination with NE8FDX-*6-W)
- Temperature Range: -40 °C to +70 °C
The NE8MX6 etherCON CAT6A IP65 cable connector ensures high-quality performance and durability. This connector is an indispensable link for reliable network connectivity even in harsh conditions. Order today and get ready for a seamless and powerful connection.
*Note: Protection class IP 65 when combined with NE8FDX-6-W.
