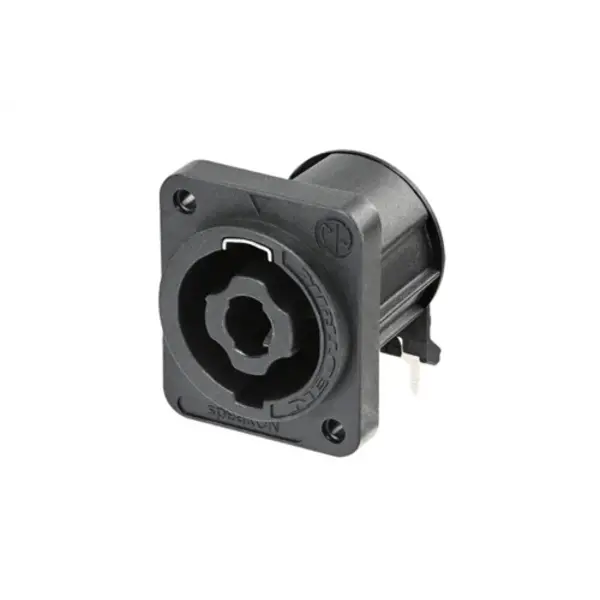

Neutrik NL4MDXX-H-3 speakON 4-Pole Chassis Connector - Secure Audio Connections according to IEC62368-1

The Neutrik NL4MDXX-H-3 is fully compliant with the IEC 62368-1 device standard, thanks to its component certification according to IEC 61984. This 4-pole speakON chassis connector with black D-size flange and self-tapping screw holes (A-screws) is ideal for horizontal PCB mounting.

Technical Information:

• Product Title: NL4MDXX-H-3
• Gender: Male

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 2.8 kVac
• Insulation Resistance: > 0.1 GΩ (after vapour heat)
• Rated Current Per Contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
• Rated Voltage: 250 V ac
• Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical:

• Lifetime: > 5000 mating cycles
• Wiring: Horizontal PCB mount
• Locking Device: Quick Lock
• Mounting Direction: Rear mounting
• Chassis Shape: D
• Layout: Standard hole position, self-tapping screw holes (A-Screw)

Material:

• Contact Plating: Ag (Silver)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy

Environmental:

• Flammability: UL 94 V-0
• Temperature Range: -30 °C to +80 °C

The Neutrik NL4MDXX-H-3 speakON 4-pole chassis connector offers the highest standards for secure audio connections. With its reliable locking system, durable construction and excellent performance, it is the choice for professional audio and sound systems.
