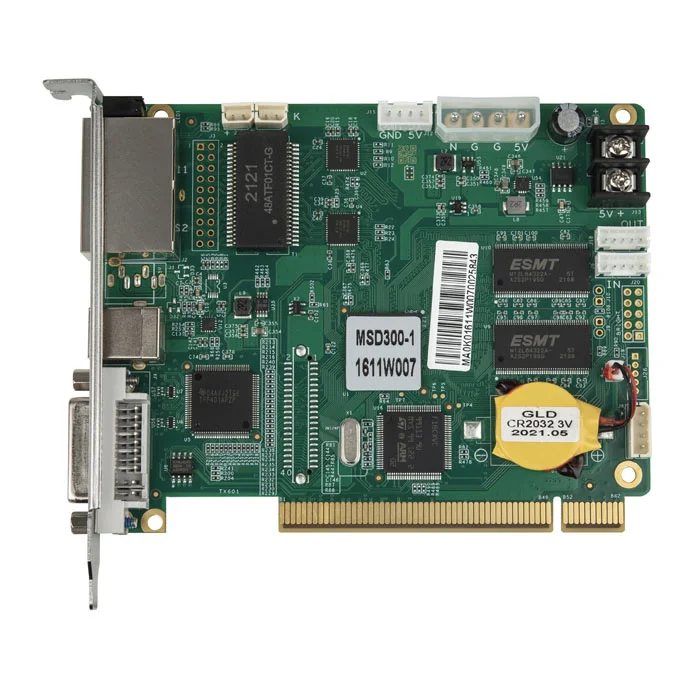

Novastar | 101610 | MSD-300-1 | Sender Card

The NovaStar MSD-300-1 is a basic sending card which lets you operate your LED Screen which is equipped with the NovaStar control system.
The MSD-300 can be plugged in any PC with a free PCI slot. With the MSD-300 setting up your LED screen becomes easy and simple. Furthermore the MSD-300 can play any content of your PC direct on the LED screen.

Technical specifications
Single Link DVI: 1
Light Sensor Port: 1
Main Outputs: 2
Scaling Function: No
Control System: Novastar
Maximum Loading Capacity: 1.3 Mpx
Maximum Input Resolution: Width and Height can be defined by users
Power Supply: 5 V DC
Power Consumption: 3 W
Data Connector Out: RJ45
