Novastar | 101611 | M3 MFN300 | Multifunction Box

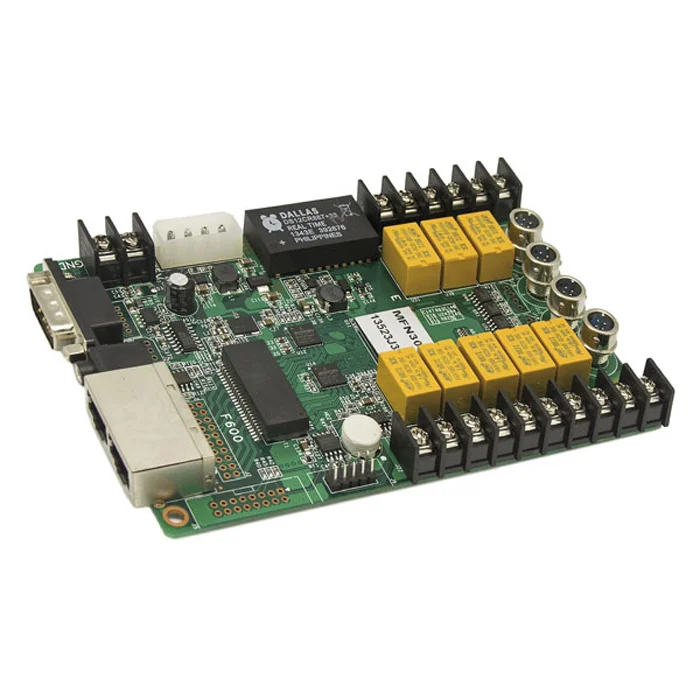

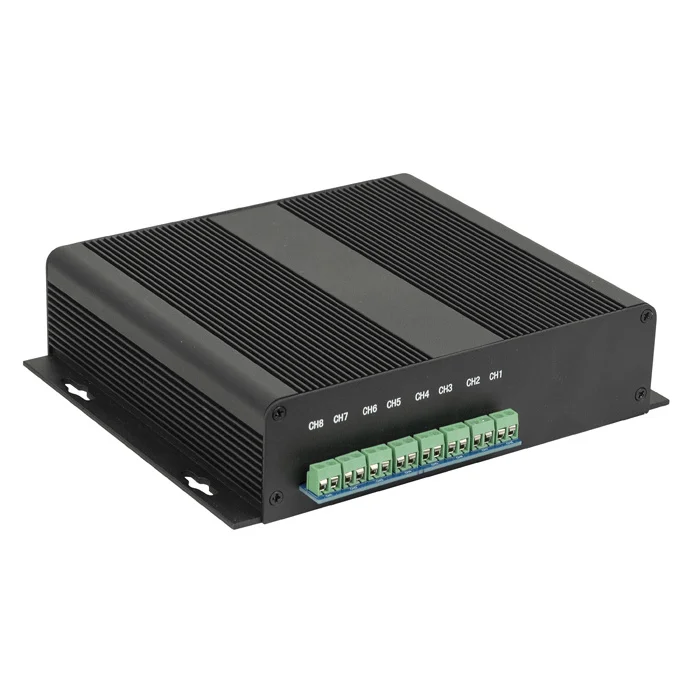

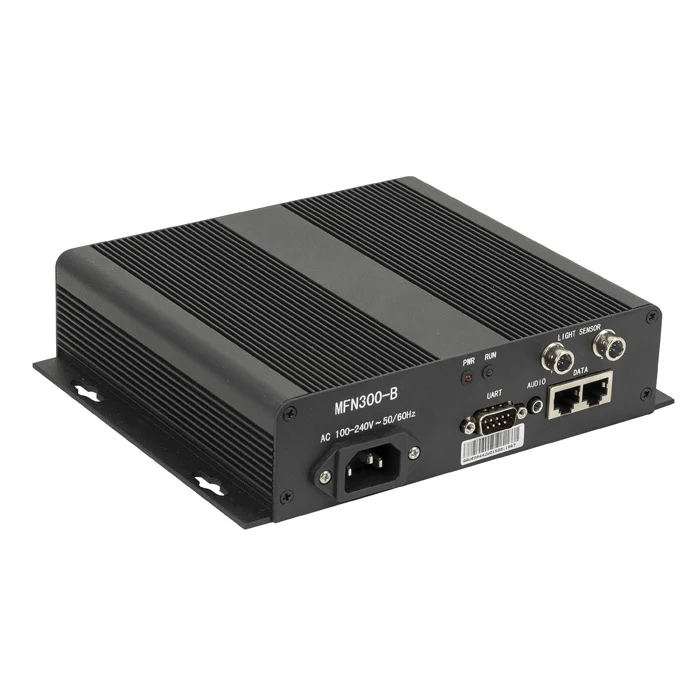

The Novastar MFN300 is a multifunction box with a variety of auxiliary functions in compact housing. It can be easily added to the screen setup at any desired position within the ethernet screen connection. The MFN300 function box allows you to add a variety of functions such as: sensor inputs to connect Light or Temperature sensors to the screen setup but it also has eight onboard relay contacts, RS 232 connection, audio output.

Technical specifications
RS-232: 1
Light Sensor Port: 2
Temperature Sensor Port: 2
Main Output Connector: TRS balanced 3.5 mm
Relay Contacts: 8
Relay Contact Type: NC
Control System: Novastar
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 3.8 W
Power Connector In: IEC
Data Connector In: RJ45
Data Connector Out: RJ45
