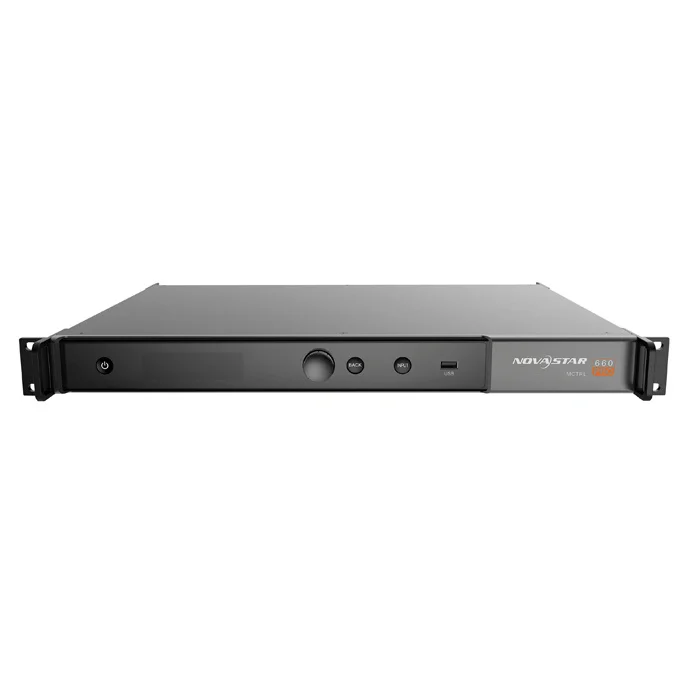

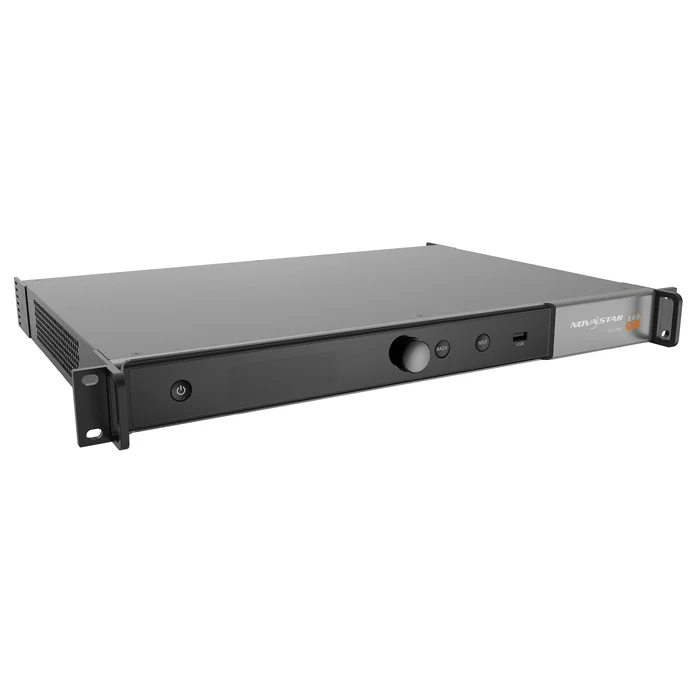

Novastar | 101621 | MCTRL-660 Pro | Sender Box

The MCTRL660 PRO is a professional low-latency controller. A single MCTRL660 PRO has a loading capacity of up to 1920x1200@60Hz.

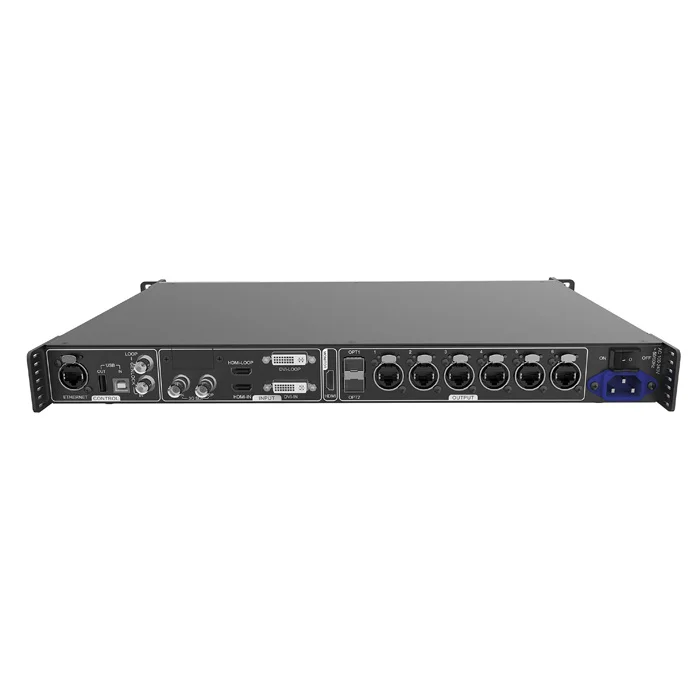

The MCTRL660 PRO has many industry-leading advanced technologies. Various video inputs such as HDMI, DVI, 3G SDI and 6x Gigabit ethernet / 2x 10G optical outputs allow users to configure ultra-large screens with ultra-width or ultra-height.

Technical specifications
HDMI 1.4a: 1
Single Link DVI: 1
3G-SDI: 1
HDMI 1.4a (Loop): 1
Single Link DVI (Loop): 1
3G-SDI (Loop): 1
SFP Slot Type: 10G
SFP Slot Quantity: 2
Scaling Function: No
GenLock: In & Out
Maximum Loading Capacity: 2.3 Mpx
Maximum Input Resolution: Width and Height can be defined by users
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 20 W
Data Connector In: RJ45 / USB
Data Connector Out: RJ45
